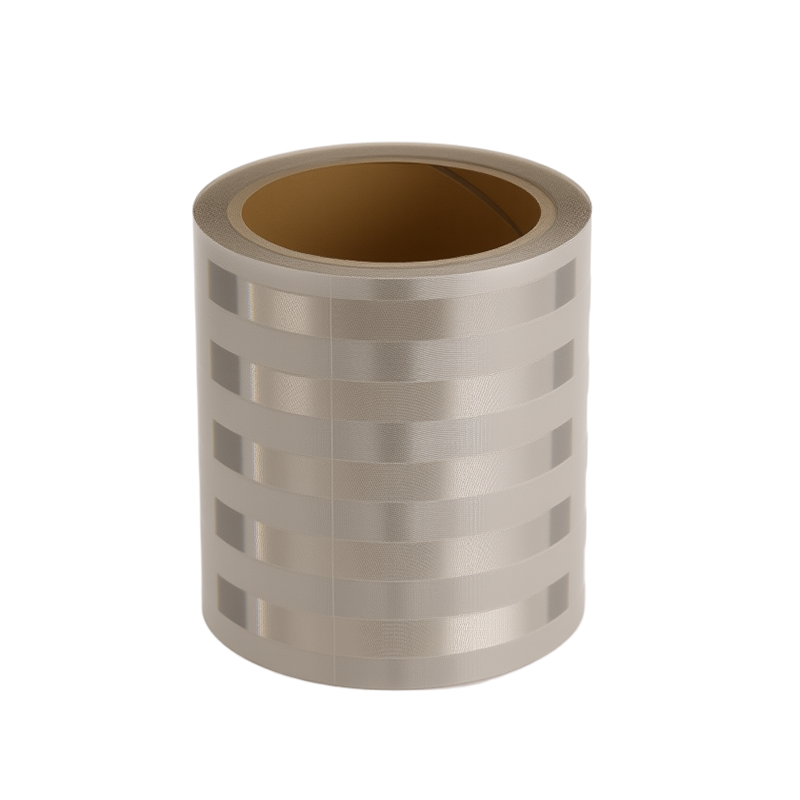

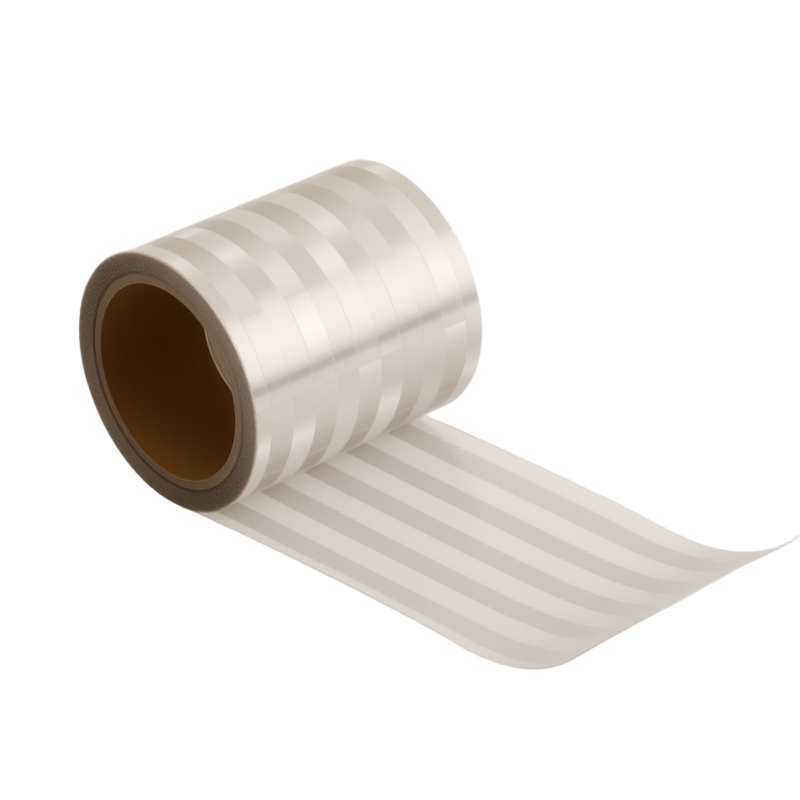

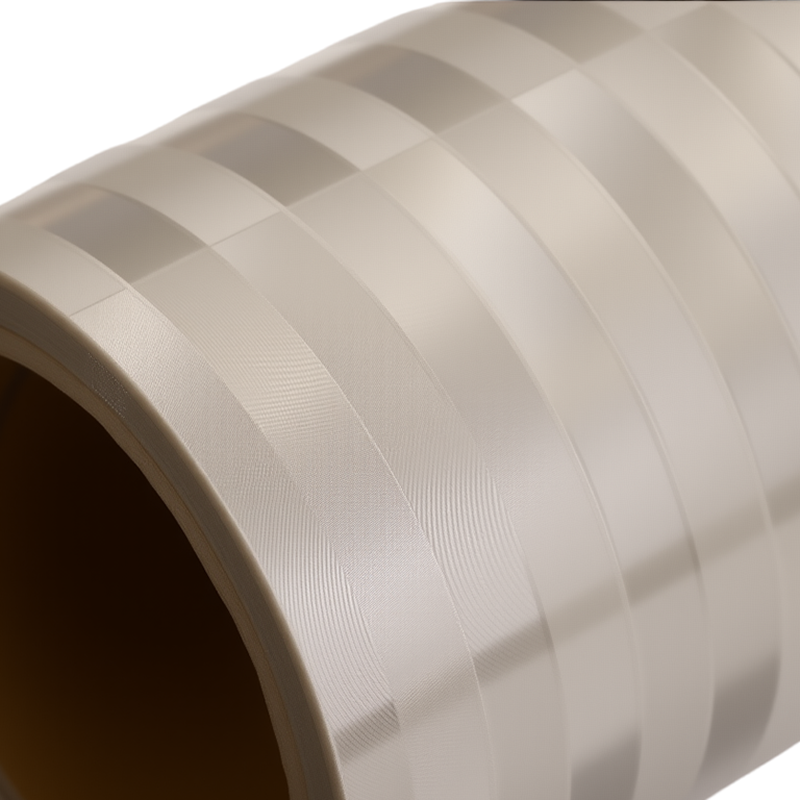

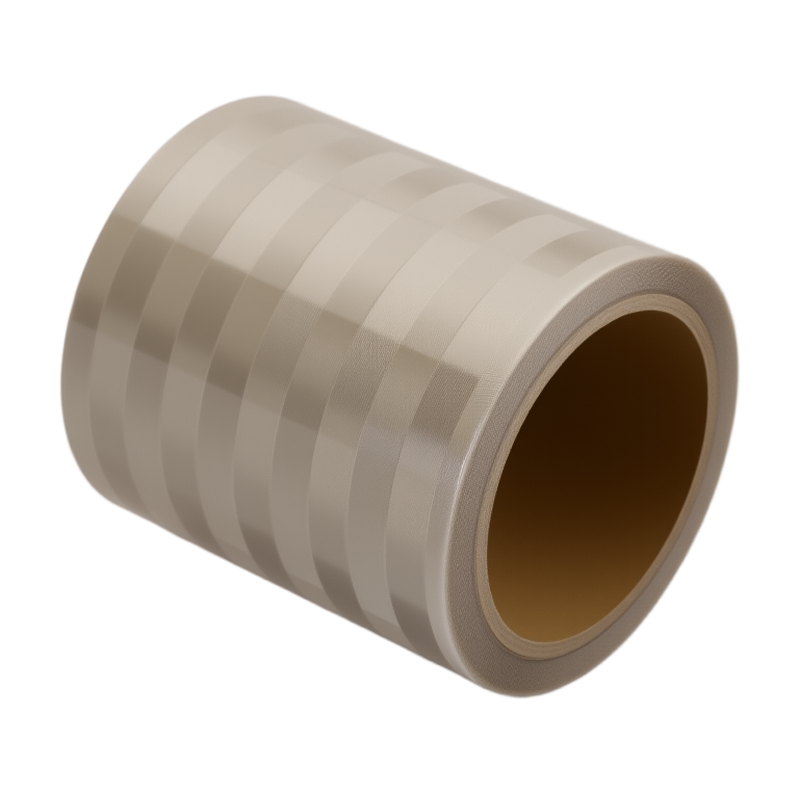

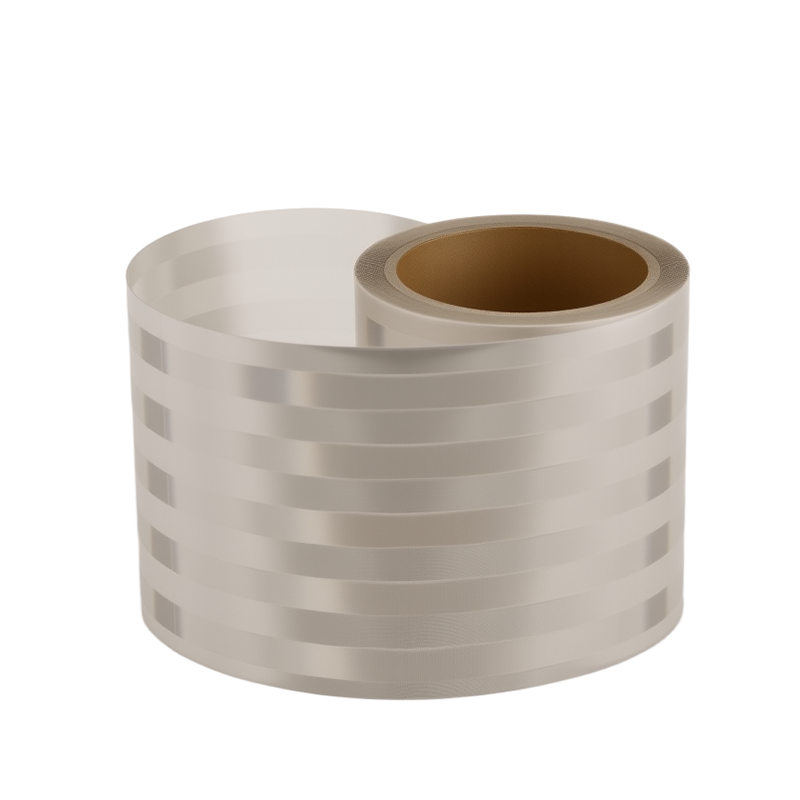

DM3810 Flexible Prismatic Reflective Sheeting

DM3810 Flexible Prismatic Reflective Sheeting is a non-metallized microprismatic reflective sheeting with excellent performance, specially designed for traffic safety facilities. DM3810 meets and exceeds ASTM D4956 Type VIII and EN12899 RA2, C. It adopts high-quality PVC surface layer and advanced sealed cells of air backed microprismatic structure, and uses the principle of total internal reflection to achieve efficient retro-reflective performance. DM3810 not only has extremely high reflective brightness, but also has excellent flexibility and self-adhesion, which is easy to construct and can firmly adhere to the surface of various substrates, especially suitable for curved or deformable traffic facilities. Its excellent weather resistance and anti-aging properties ensure that the visual recognition effect remains stable for a long time in complex environments. This series is widely used in traffic control equipment, such as polyethylene drums, posts, and tubes, effectively enhancing night visibility and road safety. It is an ideal material choice for improving road safety sign systems.

Product model	Product specifications
DM3810	1.24m*45.7m/roll, customized sizes
Surface layer:	Durability:
PVC	5 years
Product color：	Processing:
white, yellow, fluo-yellow green	digital printing, screen printing, cylinder printing
Application:	Certified:
high grade traffic cone, delineators, road safety barrel, temporary signs	ASTM D4956 Type VIII, EN12899 RA2,C

SEND INQUIRY

Details

Features

Features

High retro-reflective performance: adopts sealed cells of air backed structure to achieve excellent retro-reflective effect.

Strong durability: PVC coating ensures good weather resistance and a service life of more than 5 years.

A variety of colors are available: three colors are available to meet the needs of different application scenarios.

Related Products List

Product Model	Product Name	Specification	Color	Processing
DM1400	Flexible Micro Prismatic Sheeting	1.24m*45.7m/roll	White	Screen printing
DM3610	Flexible Micro Prismatic Sheeting	1.22m*45.7m/roll	White, Yellow, Orange, Fluo-Yellow Green	digital printing, cylinder printing
DM3910	Flexible Micro Prismatic Sheeting	1.22m*45.7m/roll, customized sizes	silver	digital printing, cylinder printing
DM3950	PVC Prismatic Adhesive Sheeting	1.22m*45.72m/roll	White	Screen printing,

Wide Applications

traffic control devices such as polyethylene drums, posts and tubes

safety facilities

010203

How to identify the five flexible sheetings: DM1400, DM3610, DM3810, DM3910, and DM3950?

Observe the appearance pattern

Both DM1400 and DM3610 utilize a hexagonal honeycomb pattern, with the DM1400's cells being larger and the DM3610's pattern being more dense. DM3810 features a regular quadrilateral pattern; DM3910 has a smooth, untextured surface with no visible pattern; and DM3950 utilizes a triangular pattern on a fabric-based base.

Observe the appearance color

DM1400, DM3910, and DM3950 are aluminized and the product appearance is grayish, while DM3610 and DM3810 are sealed cells of air structures and have brighter colors.

// DM // Product Use Tips

01 /

Which substrate has the best bonding effect with reflective film?

DM3810 PVC Flexible Prismatic sheeting is recommended to be pasted on aluminum and steel surfaces for best adhesion. For materials such as high-density polyethylene (HDPE) or polypropylene (PP), we can provide special adhesive types according to demand to ensure good adhesion performance.
