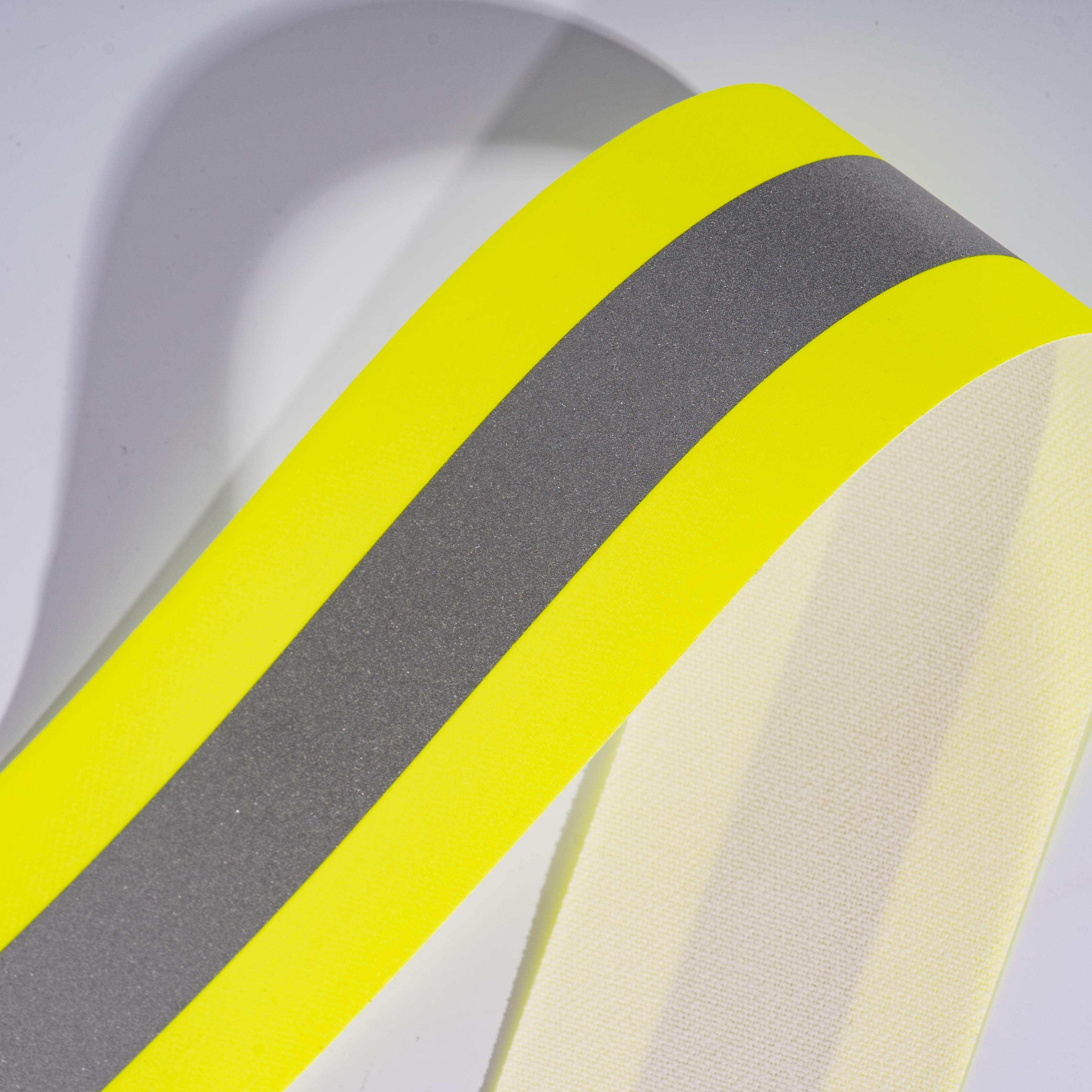

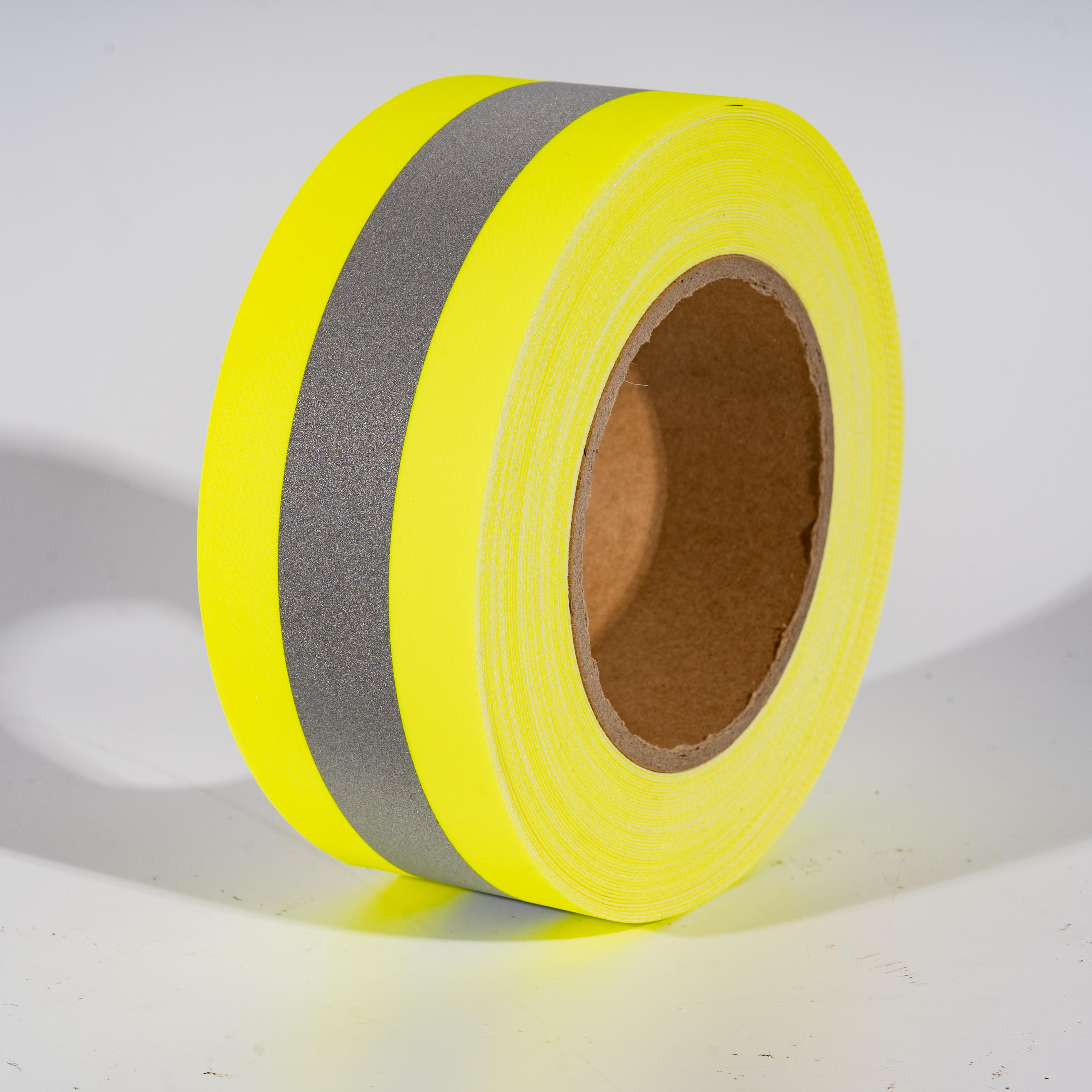

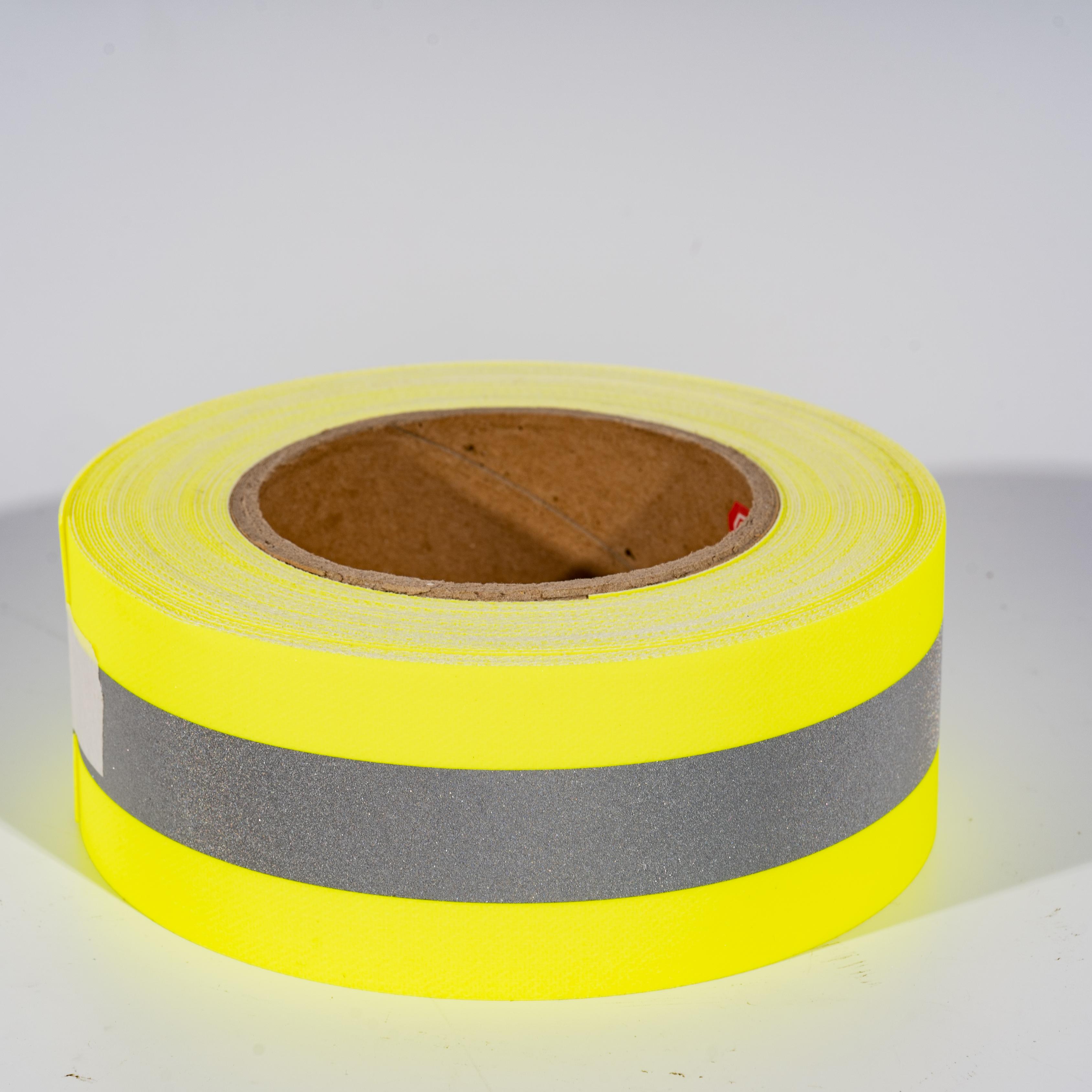

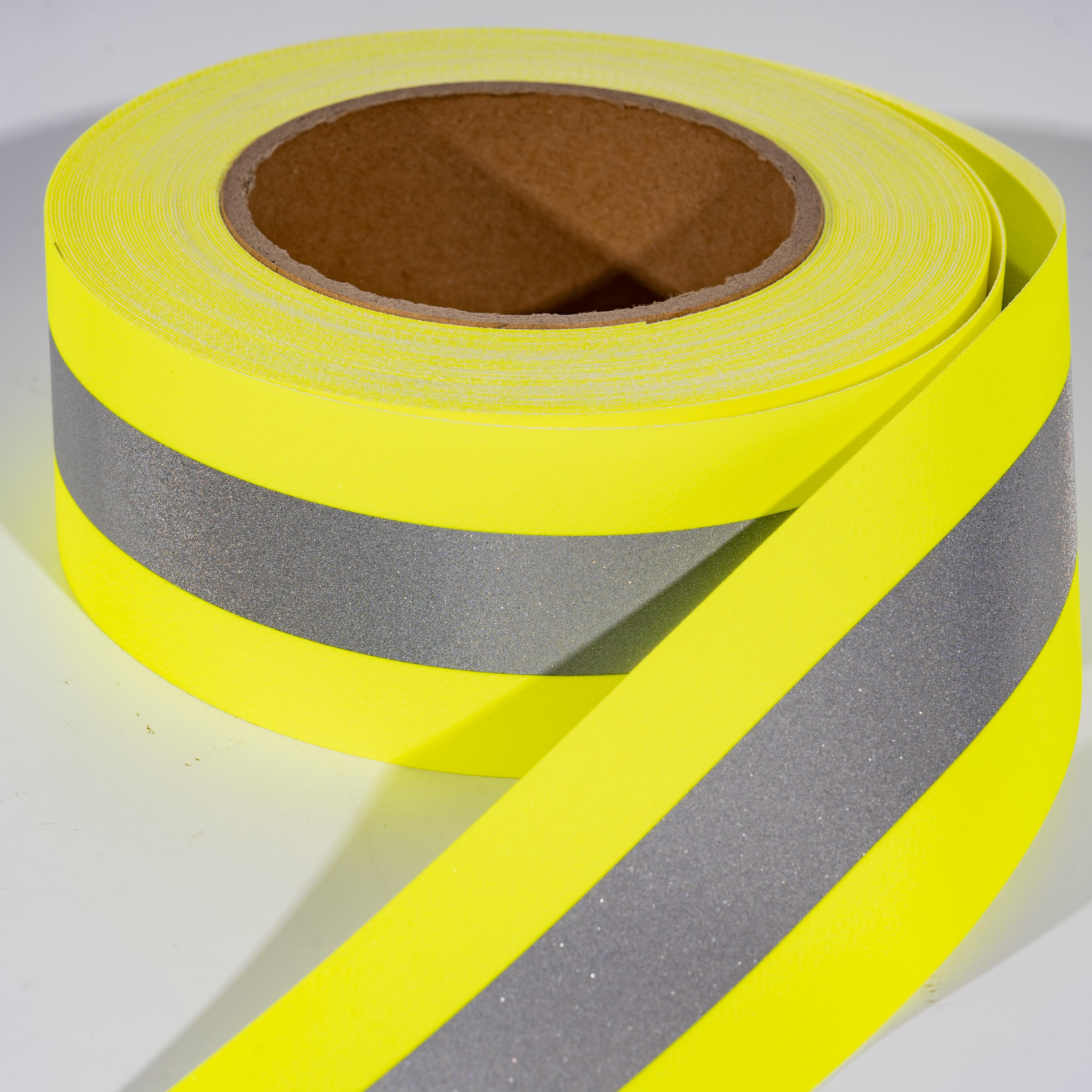

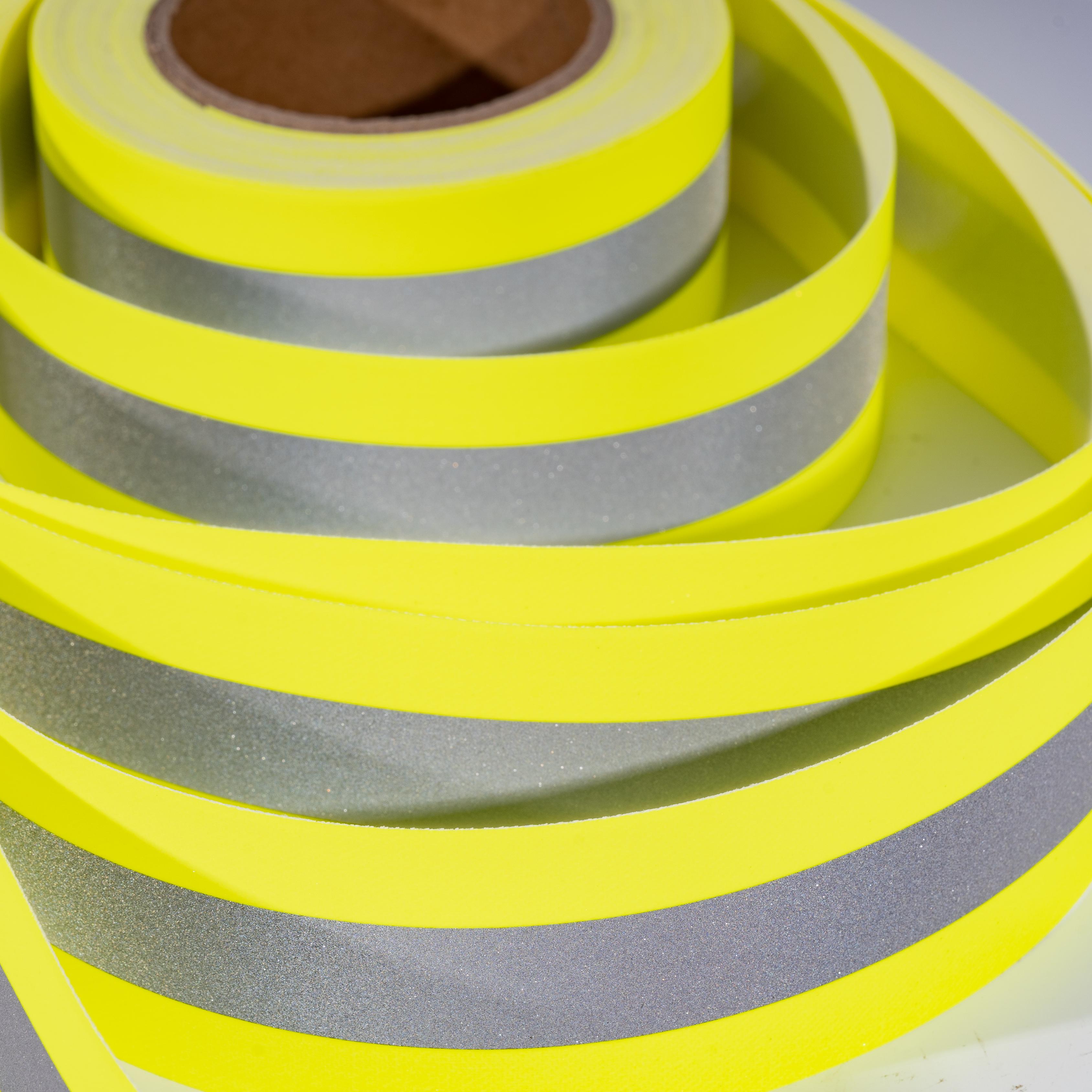

DMZ04 - Woven Tape with D4102 Gray Reflective Heat
SEND
INQUIRY
Details
Features
Related Products
Application
Use Tips
CustomizationFeatures
1. DOMESTIC WASHING
Washer: Standard House washing machine
Temperature: 40-60°C
Detergent: Neutral detergent (PH : 7)
Bleaching: Not recommended
2. STORAGE
Store in a cool place free of moisture, dry area and use within 1 year of receipt. Rolls should be stored in their original cartons, whilst partially used rolls should be returned to their carton. The retro-reflective performance of all reflective materials is affected by soiling. Any kind of dirt, such as liquid chemicals, greases and alike will reduce brightness in the area of contamination. For specific guidance contact your DM representative
Store in a cool place free of moisture, dry area and use within 1 year of receipt. Rolls should be stored in their original cartons, whilst partially used rolls should be returned to their carton. The retro-reflective performance of all reflective materials is affected by soiling. Any kind of dirt, such as liquid chemicals, greases and alike will reduce brightness in the area of contamination. For specific guidance contact your DM representative
Related Products List
| Product Model | Product Name | Specification | Color |
| DMZ04 | Woven Tape with D4102 gray reflective heat | 50m * 100m, 10cm * 100m or customized | Yellow/orange-grey/silver-Yellow/orange, customized; |
Reflectance
|
Entrance angle Observation angle |
5° |
20° |
30° |
40° |
||||
| Class II | Results | Class II | Results | Class II | Results | Class II | Results | |
|
12′ |
330 |
426 |
290 |
380 |
180 |
330 |
65 |
219 |
|
20′ |
250 |
321 |
200 |
295 |
170 |
241 |
60 |
195 |
|
1° |
25 |
39 |
15 |
35 |
12 |
38 |
10 |
32 |
|
1°30′ |
10 |
19 |
7 |
18 |
5 |
19 |
4 |
18 |
| Retro-reflective performance after test exposure | ||
| Coefficient(cd/lux∙m²) | Standard Requires : cd/lux∙m² | |
|
After Abrasion |
406 |
EN ISO 12947-2:2016, 5000cycles |
|
After flexing |
378 |
ISO 7854:1995 Method A, 7500cycles |
|
After folding at cold temperature |
393 |
ISO 4675:2017 |
|
After temperature variation |
369 |
EN ISO 20471:2013/A1:2016 Annex C |
|
After Rainfall |
179 |
ENISO 20471:2013/A1:2016 Annex C |
|
After home washing |
272 |
ENISO 6330 6N, 30 cycles |
Pet Leashes and Collars

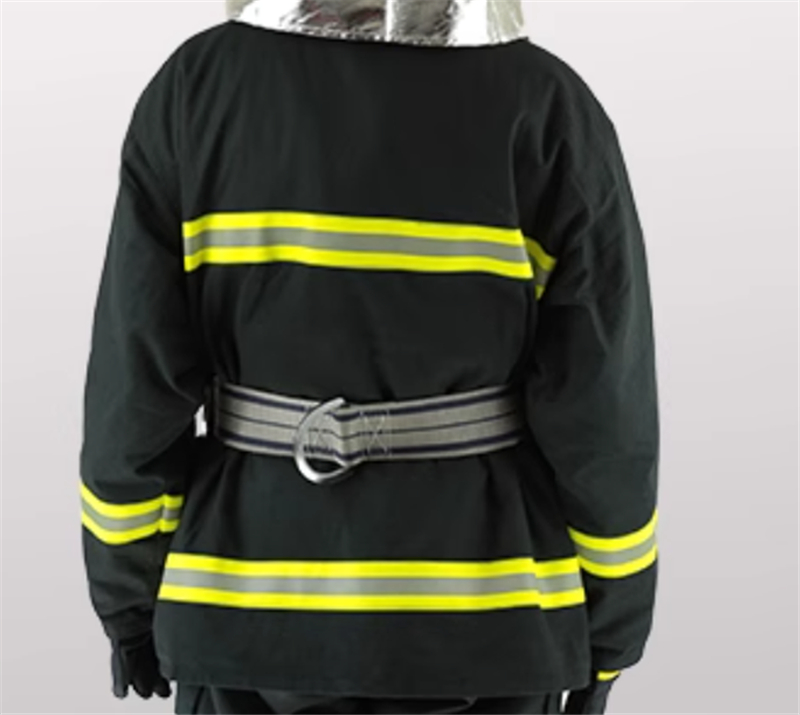

Reflective workwear

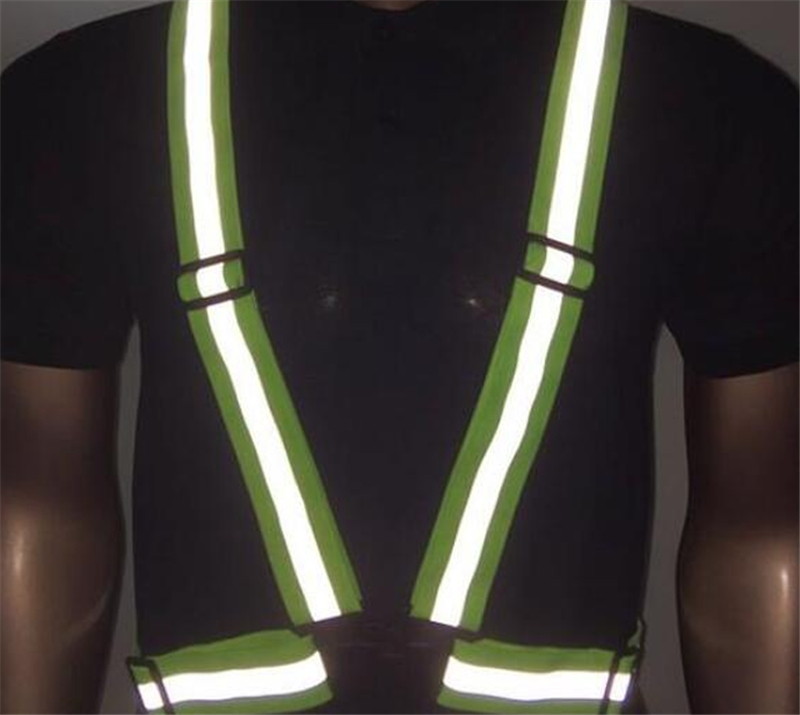

Safety Vests
01
01
/
How to test the reflective effect?
1. Take pictures with a mobile phone at a distance of more than 3 meters in a dark
environment.
2. Stand a flashlight at a height of more than 5 meters in the dark, with the
flashlight shining at the tip of the nose to reflect light.
3. Conduct the test with a car at a distance of more than 20 meters in a dark
environment.
02
/
Why is the reflective effect I tested not strong?
The reflection you tested was weak because your testing method was incorrect.
1. Please conduct the test at a distance of at least 3 meters. Due to the issue of
reflection Angle, it needs to be at a certain distance away.
2. The principle of reflective stickers is that wherever the light source comes
from, the reflection will return to the light source, thereby alerting the driver.
3. The reflective intensity of reflective stickers is directly proportional to the
light intensity; the stronger the light source, the stronger the reflection.
-
