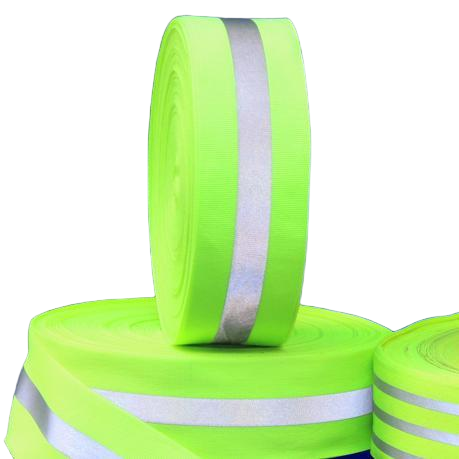

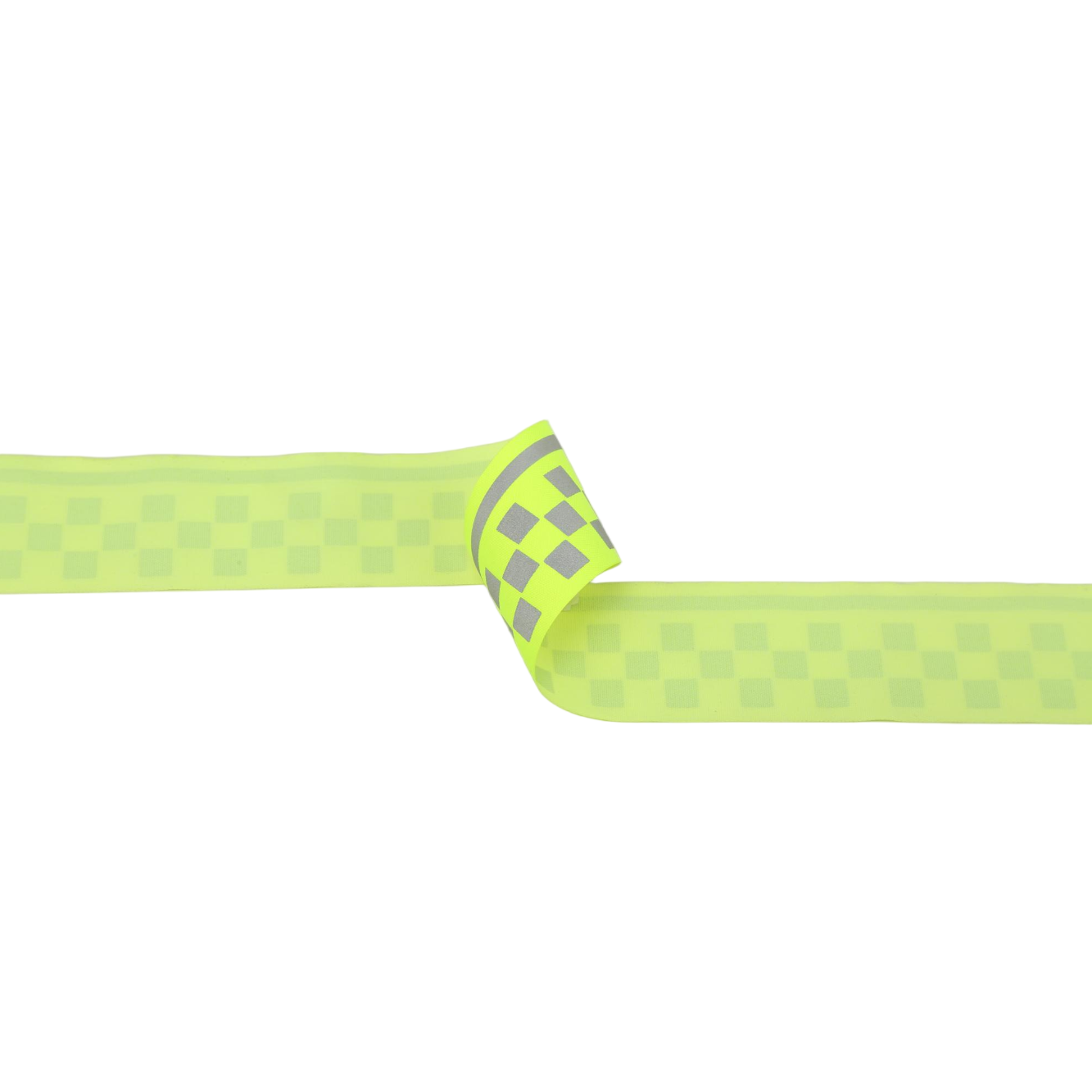

DMZ01-Lime Yellow Webbing D4102
SEND
INQUIRY
Details
Features
Related Products
Application
Use Tips
CustomizationFeatures
1. Domestic Washing
Washer: Standard House washing machine; Temperature: 40-60°C; Detergent: Neutral detergent (PH : 7); Ironing: Not recommended; Bleaching: Not recommended.
2. Industrial Wash
Industrial wash: Not recommended; Tunnel Drying: Not recommended; Tumble dry: Not recommended; Ironing: Not Recommended.
3. Application Instructions ( Important )
1. Head Machine to 130~150°C depending on the fabric you should print on
2. Remove plastic layer under adhesive side, place the heat transfer film on the fabric (substrate) adhesive side down.
3. Apply heat and pressure under about 3kgs weight for 3~5 seconds. Remove the plastic layer on the reflective surface after cold. If necessary, pls heat press the film again after removing the plastic layer.
Storage: Store in a cool place free of moisture, dry area and use within 1 year of receipt. Rolls should be stored in their original cartons, whilst partially used rolls should be returned to their carton. The retro-reflective performance of all reflective materials is affected by soiling. Any kind of dirt, such as liquid chemicals, greases and alike will reduce brightness in the area of contamination. For specific guidance contact your DM representative.
Related Products List
| Product Model | Product Name | Specification | Color | Processing |
| DMZ02 | Lime orange Webbing D4102 | 5cm *2cm*50m, 5cm*3cm*50m, 2.5cm *1cm*100m or customized | Lime orange-silver-Lime orange, customized; | Processing: polyester ironing silver heat transfer |
Reflectance
|
Entrance angle Observation angle |
5° |
20° |
30° |
40° |
||||
| Class II | Results | Class II | Results | Class II | Results | Class II | Results | |
|
12′ |
330 | 457 | 290 | 441 | 180 | 432 | 65 | 409 |
|
20′ |
250 | 335 | 200 | 338 | 170 | 326 | 60 | 315 |
|
1° |
25 | 32 | 15 | 30 | 12 | 29 | 10 | 26 |
|
1°30′ |
10 | 23 | 7 | 23 | 5 | 22 | 4 | 20 |
| Retro-reflective performance after test exposure | ||
| Coefficient(cd/lux∙m²) | Standard Requires : cd/lux∙m² | |
| After Abrasion | 403 | ANSI/ISEA107-2010 9.4.1; EN530:1995 Method 2(wool Abrade / 5000cycles / 9kpa) |
| After flexing | 401 | ANSI/ISEA107-2010 9.4.2; ISO 7854: 1997 Method A(7500Cycles) |
| After folding at cold temperature | 382 | ANSI/ISEA 107-2010 9.4.3; ISO 4675:1990(-20°C) |
| After temperature variation | 359 | ANSI/ISEA 107-2010 9.4.4 12 Hours, 50°C/20 Hours, -30°C/ Minimum 2 Hours, 20°C |
| After washing | 219 | ANSI/ISEA 107-2010 9.4.5.2 ISO 6330 Method 2A—25 cycles |
| After dry cleaning | 378 | ANSI/ISEA 107-2010 9.4.5.3 ISO 3175:1998 Method 9.1—5 cycles |
Pet Leashes and Collars
Reflective workwear
Safety Vests
01
01
/
How to test the reflective effect?
1. Take pictures with a mobile phone at a distance of more than 3 meters in a dark
environment.
2. Stand a flashlight at a height of more than 5 meters in the dark, with the
flashlight shining at the tip of the nose to reflect light.
3. Conduct the test with a car at a distance of more than 20 meters in a dark
environment.
02
/
Why is the reflective effect I tested not strong?
The reflection you tested was weak because your testing method was incorrect.
1. Please conduct the test at a distance of at least 3 meters. Due to the issue of
reflection Angle, it needs to be at a certain distance away.
2. The principle of reflective stickers is that wherever the light source comes
from, the reflection will return to the light source, thereby alerting the driver.
3. The reflective intensity of reflective stickers is directly proportional to the
light intensity; the stronger the light source, the stronger the reflection.
-
