DM9300 DOT-C2 Conspicuity Marking Tape

DM9300 is a high-performance retroreflective microprismatic marking tape designed for rugged outdoor applications. It is primarily applied to the sides and rear of trucks, freight trucks , trailers and towed units to significantly enhance nighttime visibility and recognition, ensuring road safety. It fully complies with the DOT-C2 certification under the FMVSS 108 Standard. It mainly serves the American region, including the United States, Brazil, Colombia, Peru, etc. The reflective marking tape features microprismatic lenses embedded in a transparent synthetic resin substrate, with a pressure-sensitive adhesive backing protected by a clear release liner. It has superior retroreflective performance and exceptional weather resistance.

Product model	Structure
DM9300	PMMA and metalized layer
Durability	Size
7 years	50mm*45.7m/roll
Color	Certified
White 6”+ red 6”, white 7”+ red 11”	FMVSS 108
Application
Trucks,trailers,other heavy and long vehicles etc.

SEND INQUIRY

Details

Features

Features

1. DM9300 DOT-C2 Conspicuity Marking Tape

2. Superior retroreflective performance

Effectively reducing accident and enhancing driving safety

3. Single-layer construction and no edge sealing required

4. Exceptional weather resistance

Guaranteed 7 years service life, outstanding impact resistance, resistant to most solvents, waterproof and delamination, withstands high-pressure power washing.

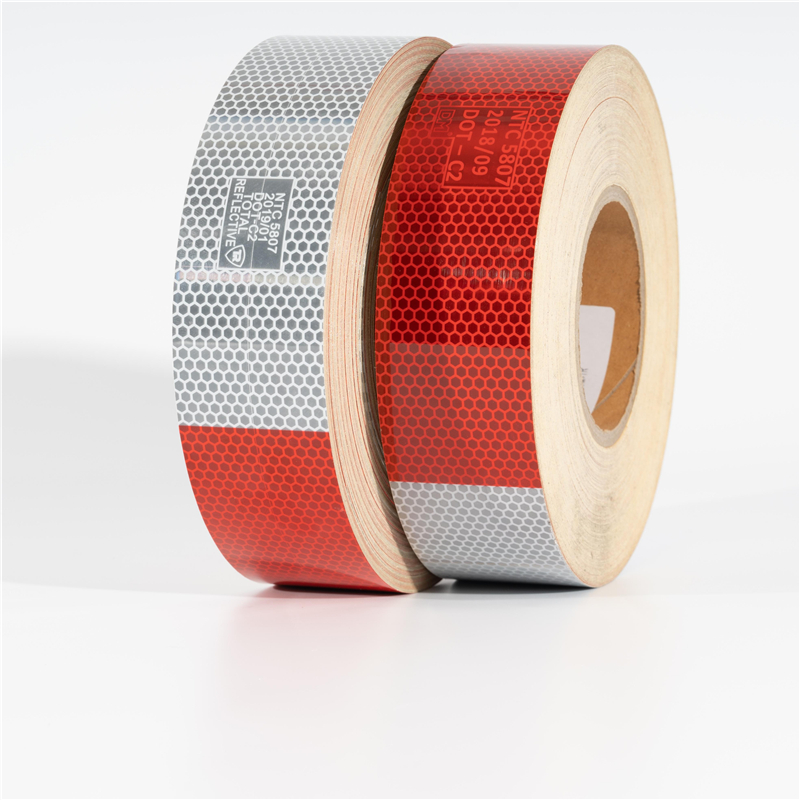

DM9300 DOT-C2 Conspicuity Marking Tape (2)

Related Products List

Product Model	Product Name	Specification	Color	Processing
DM9600	ECE Conspicuity Marking tape	50mm*50m	Yellow, White, Red
DMCT1700	DOT-C2 Conspicuity Marking tape	50mm*45.7m	white 6”+ red 6”, white 7”+ red 11”

Wide Applications

Trucks,trailers,other heavy and long vehicles etc.

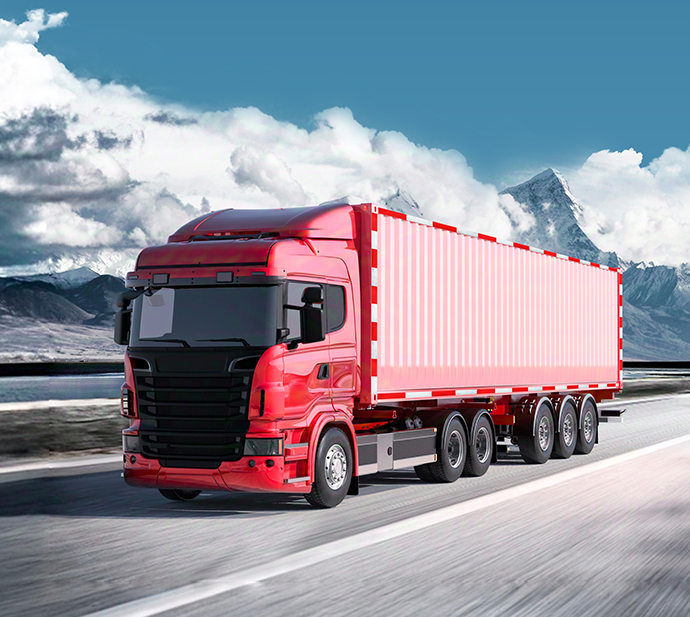

Long Vehicles

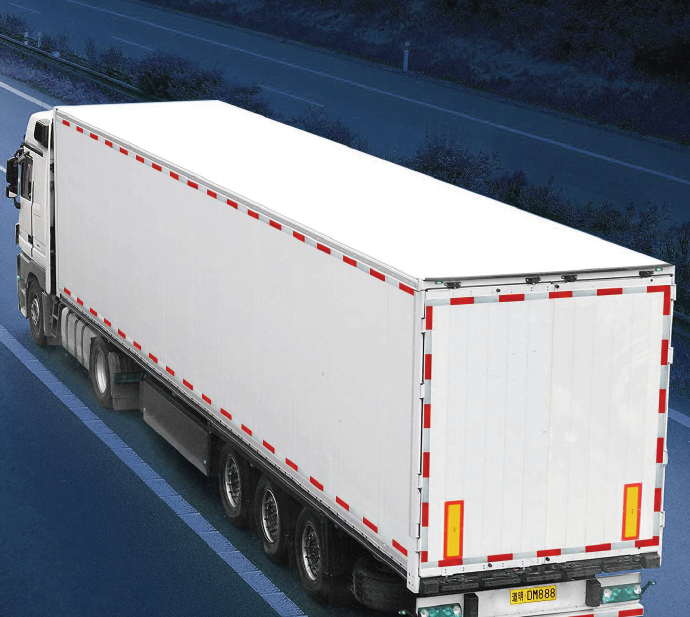

Trucks

How to Identify DM9600, DM9300 & DMCT1700?

DM9600

- Embedded lantern pattern

- Single color (only white/yellow/red)

- Two types(segmented tape/rigid tape)

DMCT1700

- Embedded diamond pattern

- Alternating red & white colors

- Displays alternating light-dark strips by changing the viewing angle

DM9300

- Embedded Hexagonal pattern

- Alternating red & white colors

// DM // Product Use Tips

01 /

How to assure proper adhesive bonding?

Material must be applied when the air and surface temperature is between 15°C and 38°C to assure proper adhesive bonding. Surfaces must be cleaned for all grease, oil and dirt. Use a clean towel and Isopropyl alcohol or similar to wipe the surface before application. If any air bubbles are trapped, use a pin to puncture the bubble and squeegee to push the air towards the pin hole.

02 /

How to perform maintenance and cleaning?

Hand wash with sponge, cloth, or soft brush using warm water and detergent. The cleaner must be wet, non-abrasive, without strong solvents and have a pH value between 3 and 11 (neither strongly acidic nor strongly alkaline). Rinse thoroughly.To remove grease, oil. or tar, use cloth moistened with heptane, VM&P naptha or mineral spirits. Wash with detergent and water then rinse thoroughly.

Using high pressure cleaning equipment, the following conditions should be applied:

• Maximum pressure 80 bar

• Maximum temperature 60°C

• Minimum of 1 metre distance of cleaning jet from sheeting surface

• Cleaning wand to be held at no greater angle than 15 degree from perpendicular to the sheeting surface

• Wide spray pattern

03 /

How to properly store the product?

Store the tape in a clean ,dry area without direct sunlight.Maintain storage temperature between 65-75°F (18-24°C) with humidity between 30-50%.Store rolls horizontally in carton or in original packaging.
