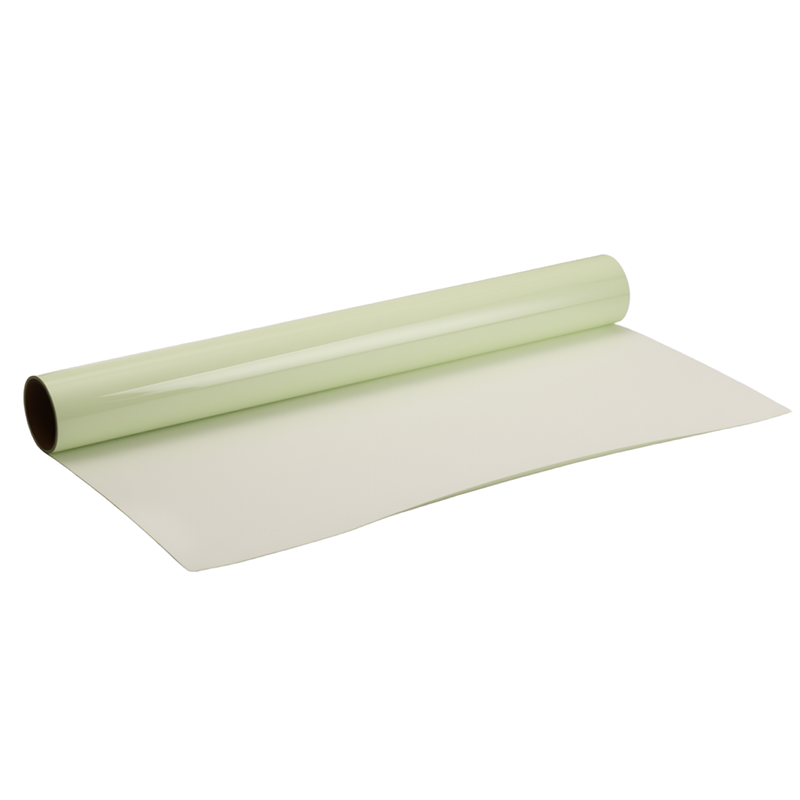

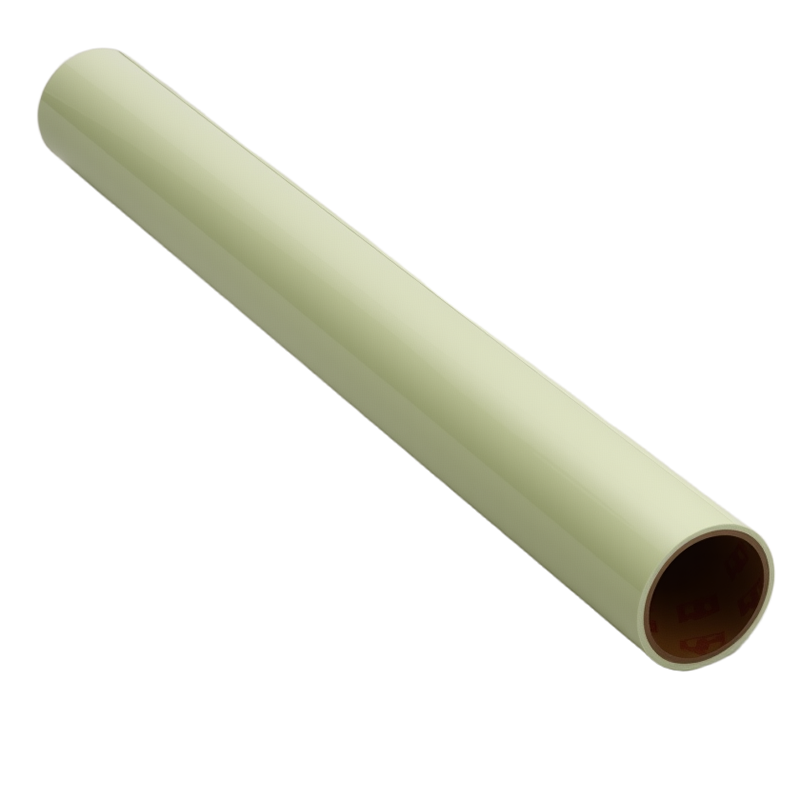

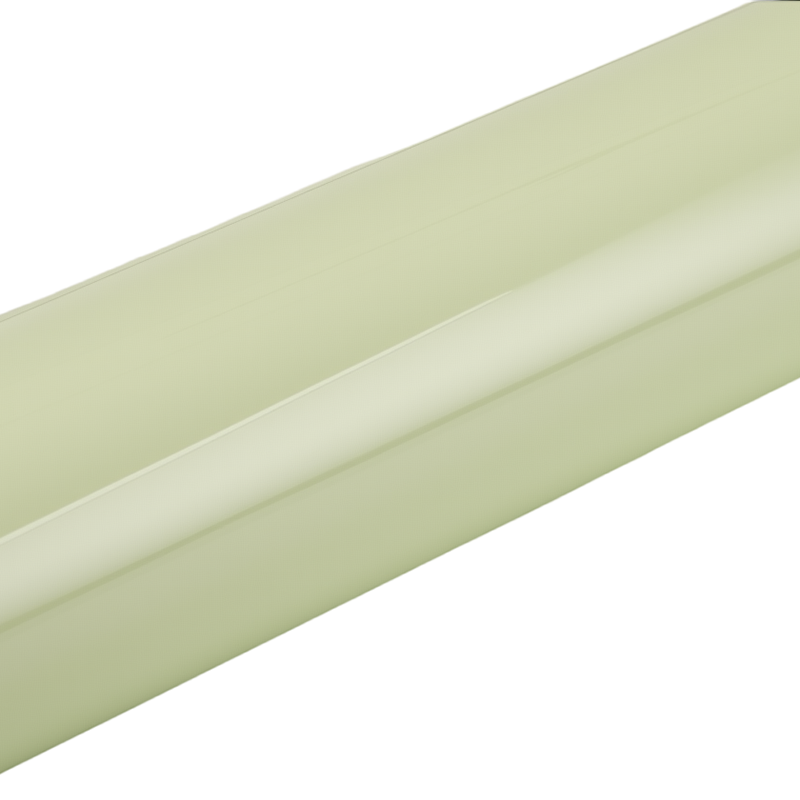

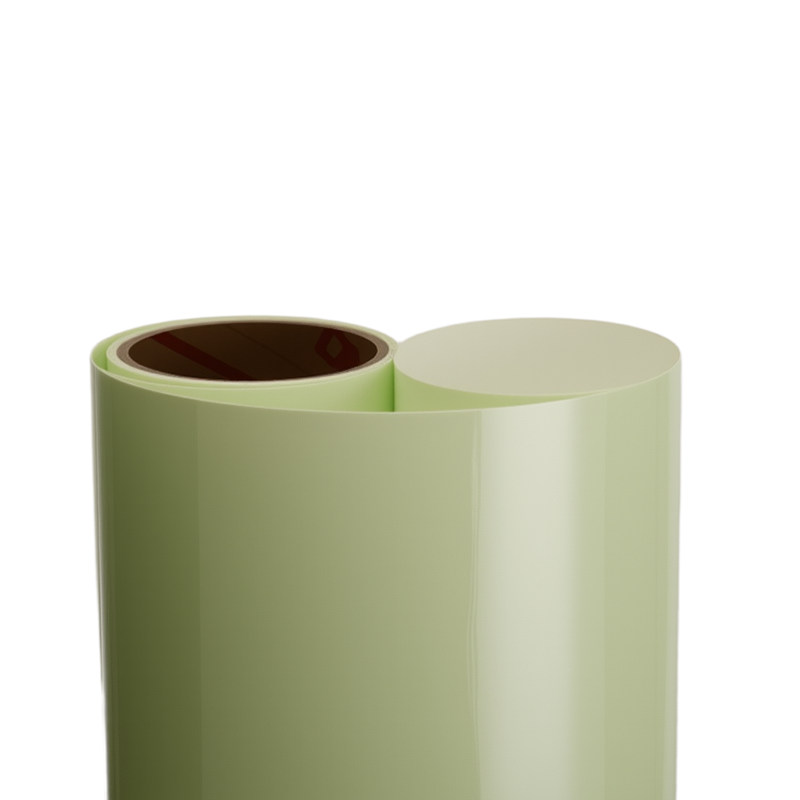

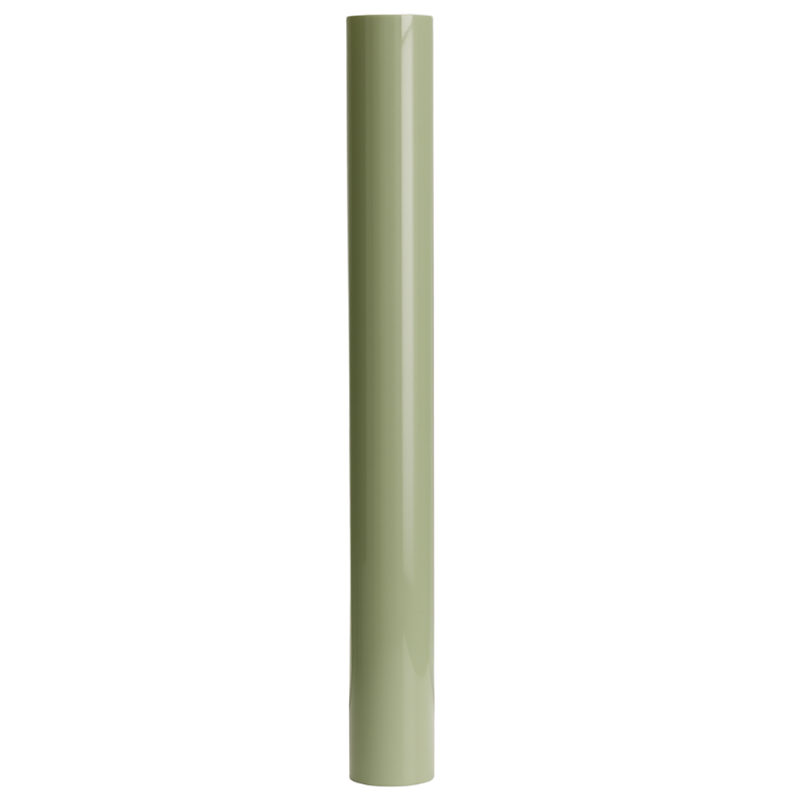

DM9100 Photo-Luminescent Film

DM9100 is a high-performance PET surface luminescent film with 5-year weather resistance, suitable for various indoor and outdoor environmental conditions. Made of PET surface layer, this product has a long-lasting luminous time and high brightness. It can provide continuous nighttime visibility even in a completely dark environment. It is widely used in safety escape indicating signs, fire fighting signs and other fields. DM9100 has good adhesion properties and can firmly adhere to the surface of various substrates. It is resistant to stretching, friction and not easy to fall off. The product material is environmentally friendly and non-toxic, meets the DIN67510 international standard, does not contain harmful substances, and ensures safe and reliable use.

Product model

Surface layer:

DM9100

PET

Product specifications：

Durability:

1.24m*45.7m/roll

5 years

Product color：

Processing:

yellow-green

die cutting
Application:

safety escape indicating signs, fire fighting signs

SEND INQUIRYDM_20250418165110_001
  • iso9001-2
  • iso9001-4
  • iso9001-1
icon1Detailsicon2 Featuresicon4Related Productsicon3Application tips1Use Tipsicon5Customization

Features

1.Wide range of applications
DM9100 is suitable for safety escape signs, fire signs, subway signs, etc., in line with DIN7510 standards

2、Excellent bonding performance
DM9100 uses high-efficiency pressure-sensitive adhesive, which is strong and durable, and can be well bonded to the bottom. At the same time, the thickness of the adhesive layer is moderate.

3. High weather resistance
DM9100 has strong durability, a service life of up to 5 years, and is wear-resistant

4 .Excellent light storage performance
DM9100 has a long light-storing time, a long visible distance and good recognition effect
Contact us

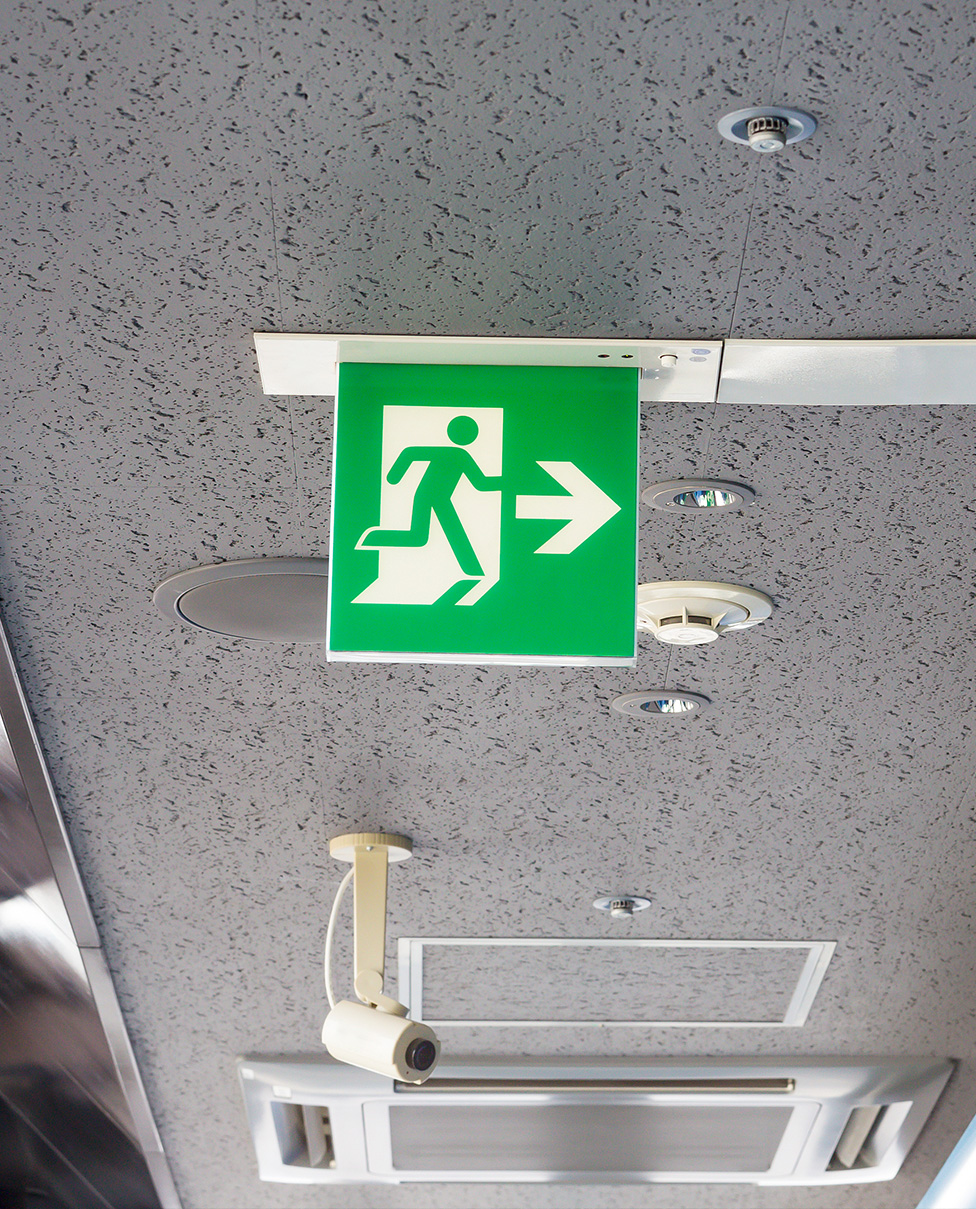

特点右侧图976-1209
DM9100 has a long light-storing time, a long visible distance and good recognition effect

Related Products List

Product Model

Product Name

Specification

Color

Processing

DM9200

Digital Printing Grade Photo-Luminescent film

1.24m*45.7m/roll



Yellow green

Digital printing, solvent printing

DM7690

High Intensity Grade Prismatic Series

1.22m*45.72m/roll



Yellow green

Digital printing, screen printing

Wide Applications

1.Location Indicators: They can be applied on the surface of following objects: switches of electric appliances,remote control, wall switches, plugs, receptacles, locks, hand torches, door handles, handrails, fire extinguishers, fire alarms, lifesaving devices, etc.

2.Safety Markings: They can be applied to the following places to give safety indication and warning: emergency exits and passageway, subway stations, railway stations, airports, civil air defense projects, KARAOKE halls, cinemas, supermarkets, hospitals,

terminal, etc.

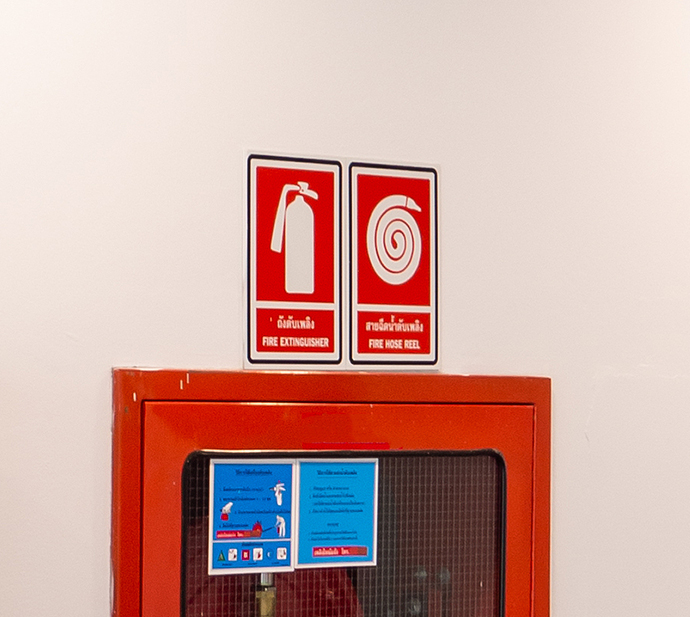

fire fighting signs

fire fighting signs

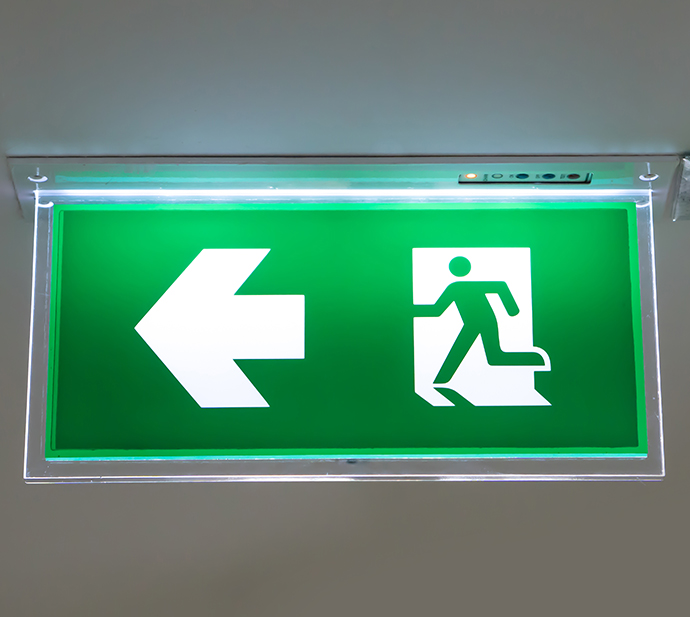

safety escape indicating signs

safety escape indicating signs

01

// DM // Product Use Tips

01 /

How to use this product?

1.Cut the film into different sizes and they can be directly pasted to smooth surfaces such as PMMA,PET, PC etc.
2. Preferably to be processed under the temperature of 10~40℃.
3. Please ensure that the surface is carefully cleaned before pasting the film and avoid any grease marks or dust particles.
4.When removing the paper from the back of the film, please press it neatly on the surface to prevent any wrinkles or creases.
5.For best results, it is important to maintain a moderate humidity level, as exposure to high or low humidity levels may impact the performance of the product. Preferably have them processed in environment with humidity of 40%-60%.
6.Please note that films with a length of 10m may have junctions.
7. The color films of MY, MR, MB and MG are recommended not to be used outside.
