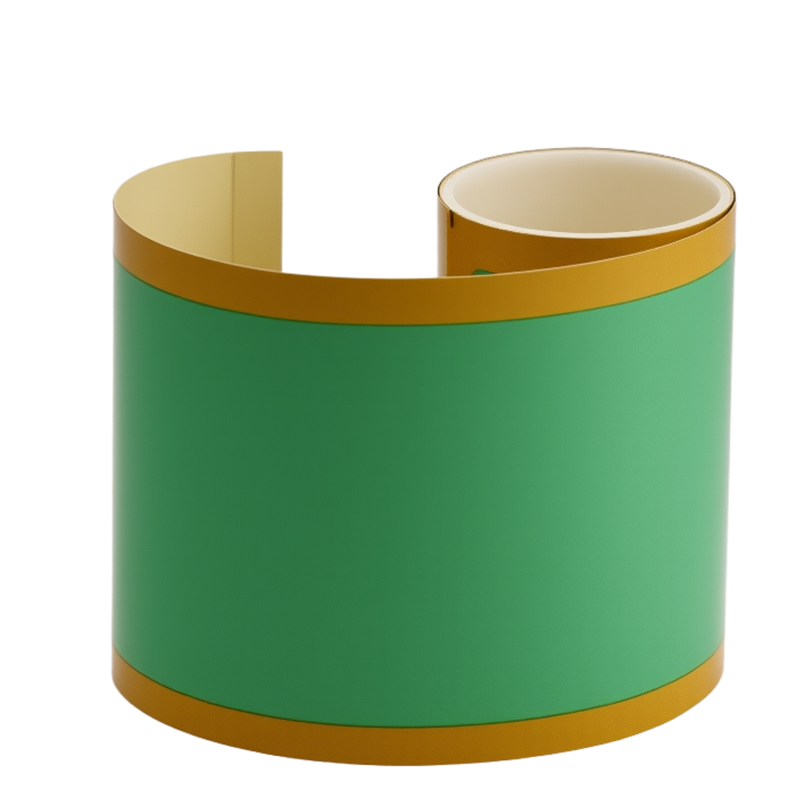

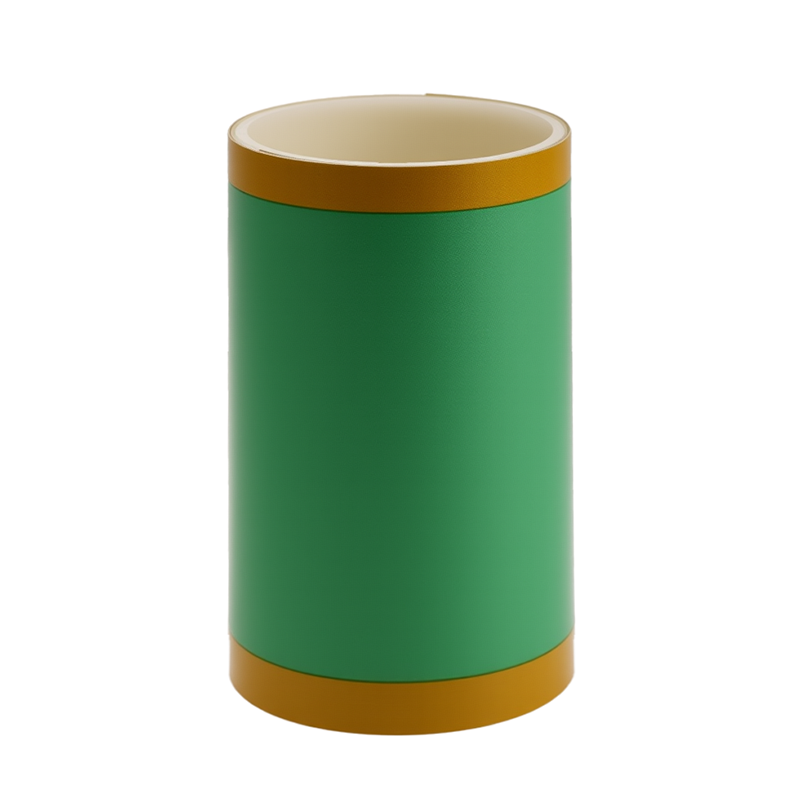

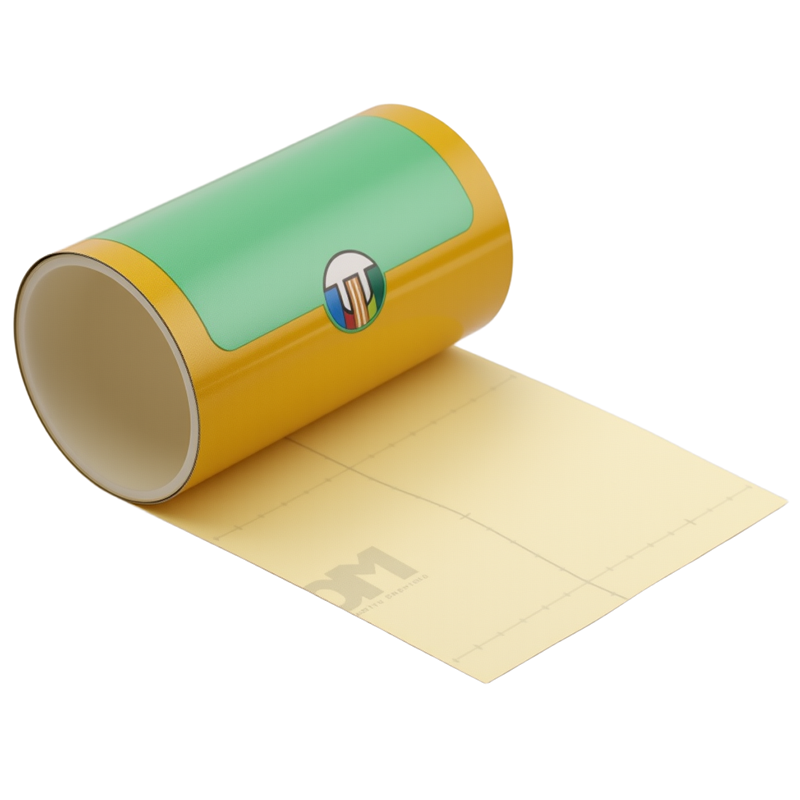

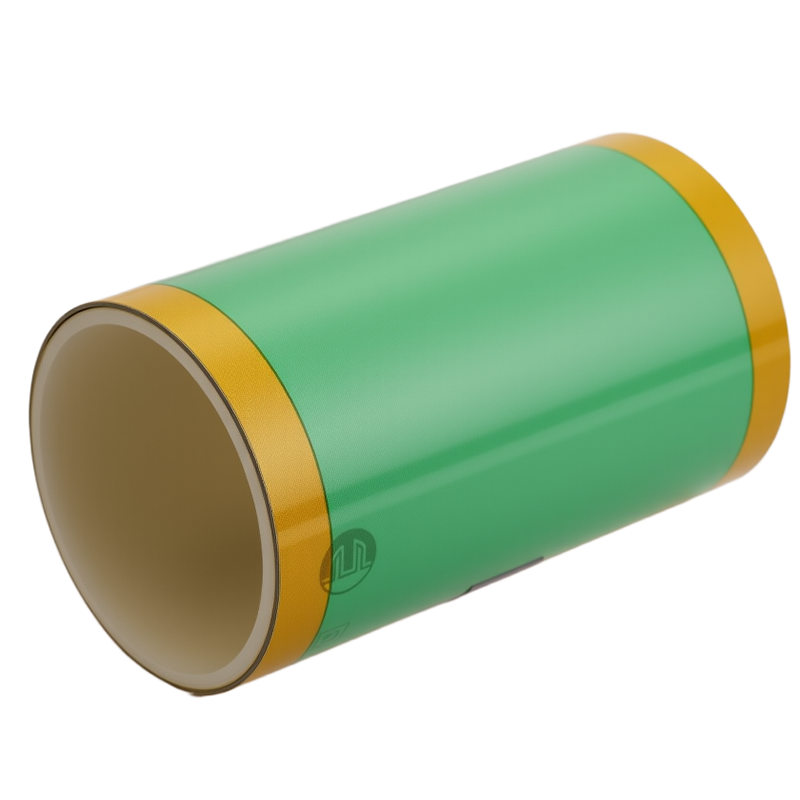

DM8207-T The reflective film of new- energy plate

Processing Technology and Procedures:

1. Surface layer coating (Apply polymer resin on the PET substrate, wind up after drying)

2.Pattern printing (Print patterns or watermarks on the surface layer)

3.Bead planting (Apply adhesive on the surface layer, properly dry in an oven, then evenly embed glass microspheres into the resin layer, wind up after forced drying)

4.Focusing layer coating (Apply another layer of focusing layer resin on the surface of glass microspheres, wind up after drying)

5.Metal reflective layer (Attach a metal reflective layer on the surface of the focusing layer via metal vapor coating to enable full retroreflection of light)

6.Composite layer (Apply pressure-sensitive adhesive on the release paper, dry it, then laminate with the film with the metal reflective layer)

7.PET peeling (Peel off the PET on the surface layer side)

8.Slitting and inspection (Slit after inspecting the appearance and physical properties)

9.Packaging and storage (Package the slit products and store them in the warehouse)

SEND INQUIRYDM_20250418165110_001
  • iso9001-2
  • iso9001-4
  • iso9001-1

Features

It has excellent stamping performance, with a stamping depth of up to 1.5mm. It supports multi-color overprinting, and can be used for silk screen printing, overprinting and roll printing. The glass microspheres are embedded between high-molecular resins with excellent durability, thus endowing it with outstanding weather resistance, impact resistance and adhesion performance.

Related Products
DM8208T reflective film for new energy vehicle license plates, DM8200A reflective film for electric bicycle license plates

Contact us

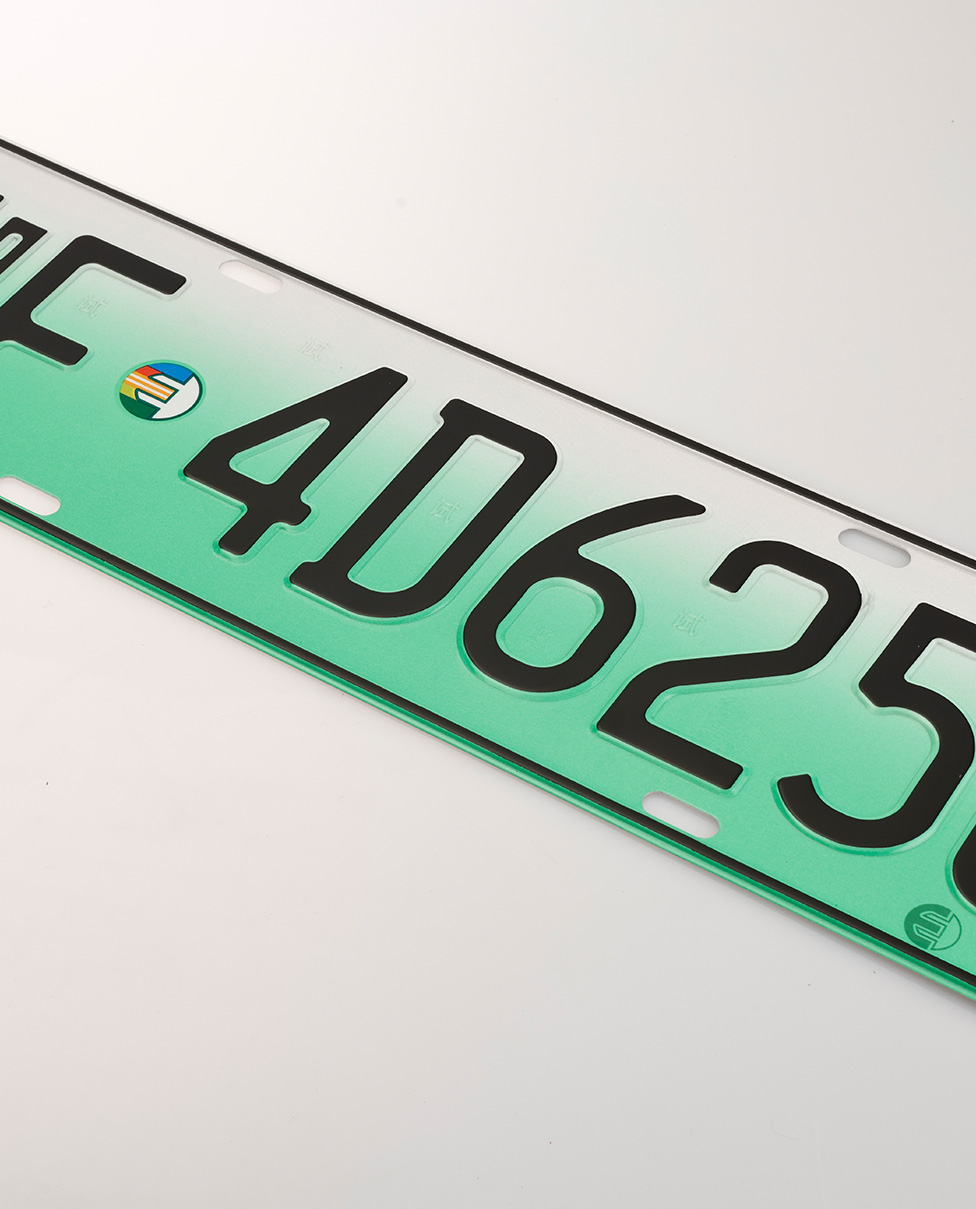

特点右侧图976-1209
The reflective film for new energy vehicle license plates is a micro bead-embedded reflective film with excellent durability, flexibility and impact resistance, suitable for making high-quality new energy vehicle license plates. This reflective film has excellent adhesion to hot stamping film and ink, and is suitable for hot stamping or roll printing license plate making processes. All indicators comply with the standard of GA666-2018 "Reflective Film for Motor Vehicle License Plates".

Application

Small New Energy Vehicle License Plate& Large New Energy Vehicle License Plate

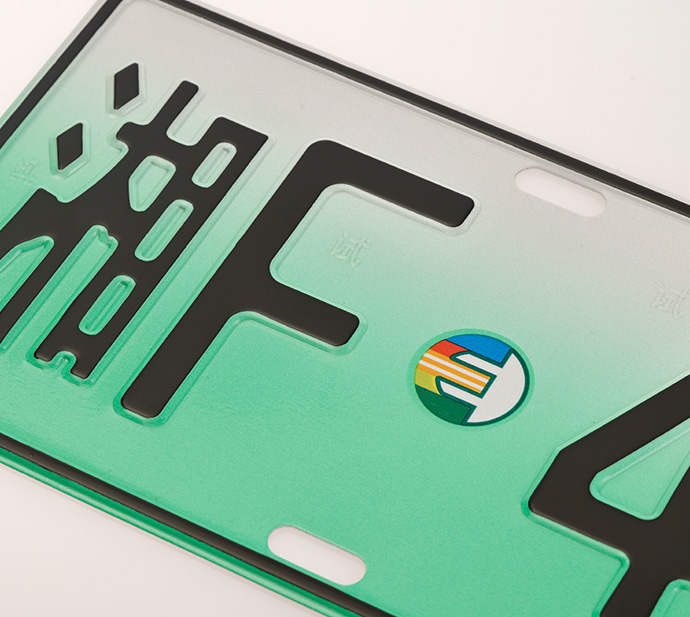

Small New Energy Vehicle License Plate2

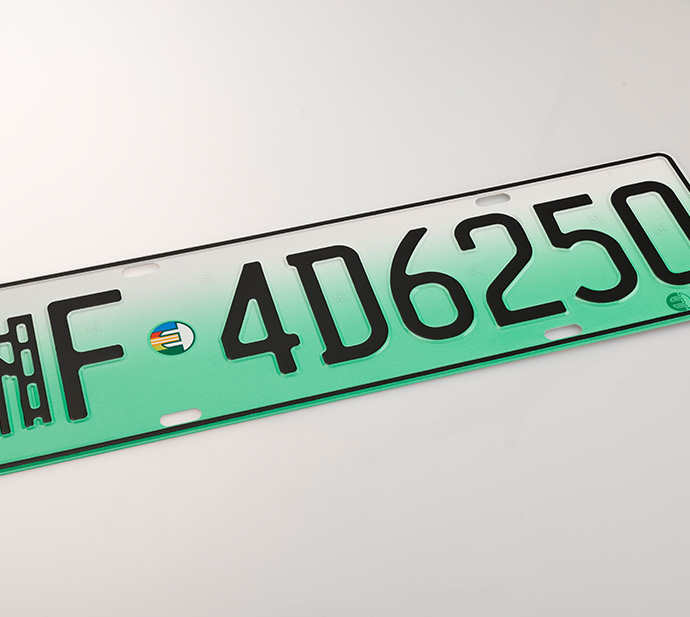

Small New Energy Vehicle License Plate

Small New Energy Vehicle License Plate

Small New Energy Vehicle License Plate

01

Distinguish

How to Distinguish Different Reflective film of New Energy Vehicle Plate

特点右侧图976-1209
Method:

1.Characteristics of printing processes**: Different types of license plate reflective films have different adaptabilities to printing processes. Reflective films for motor vehicle license plates usually support multiple printing methods, such as screen printing, roller coating, thermal transfer, etc. Reflective films for new energy vehicle license plates may need to meet more complex printing requirements, allowing high-precision multi-color overprinting to achieve color effects such as gradient green or yellow-green combination, and may also support processes like hot stamping for adding anti-counterfeiting marks. In contrast, reflective films for electric bicycles are generally mainly used in simplition is natural, it may be a reflective film for motor vehicle or new energye screen printing, with relatively simple printed patterns. If the printed patterns on the reflective film surface are highly precise and the color trans vehicle license plates; if the patterns are relatively simple and the color is single, it may be a reflective film for electric bicycles.



2.**Adaptability to stamping process**: Motor vehicle license plates need to be stamped and formed during production to create characters, borders, etc. High-quality license plate reflective films should have good stamping resistance, capable of maintaining reflective performance and film layer integrity after stamping. Reflective films for new energy vehicle license plates usually require being able to withstand stamping of a certain depth, such as up to 1.5mm, with neat character edges and no cracking of the reflective film. If after a simulated stamping test, the film surface has no obvious damage and the reflective performance does not drop significantly, it may be a reflective film suitable for motor vehicle license plates; otherwise, it may not be.



// DM // Product Use Tips

01 /

Pile up

The reflective films must be lay out in the same direction and do not pile up crossly. Making sure different containers are in the same height, and be put in the same direction. Storing differ size of containers together is strictly prohibited.
02 /

Transport

Transfer with cautious, avoiding collision, please be aware if there is a broken container while the transportation.

03 /

Storage environment

Proper Temperature 18-28
Before film application, the film and the base board should the store over 24 hr in the operating sector.
In the progress of film application the internal temperature must achieve the range between 18-28

04 /

Manufacturing environment

Temperature: 18-30  relative humidity 30-60%

Be aware, the storage room must be clean, air flowing and prevent the straight sunlight and humidity

The reflective film must be used in 1 yr time

05 /

Things to know while application

For the unwinding of film application equipment, active unwinding with a servo motor or AC motor combined with a magnetic powder brake and tension controller should be adopted to ensure the stability of tension control. Use measuring tools to measure the width change of the reflective film before and after film application to avoid excessive stretching. Generally, the shrinkage rate should be controlled within 1%. Adjustment for film deviation during application: Properly adjust the roller pressure. Generally, the film tends to deviate towards the side with higher pressure.
