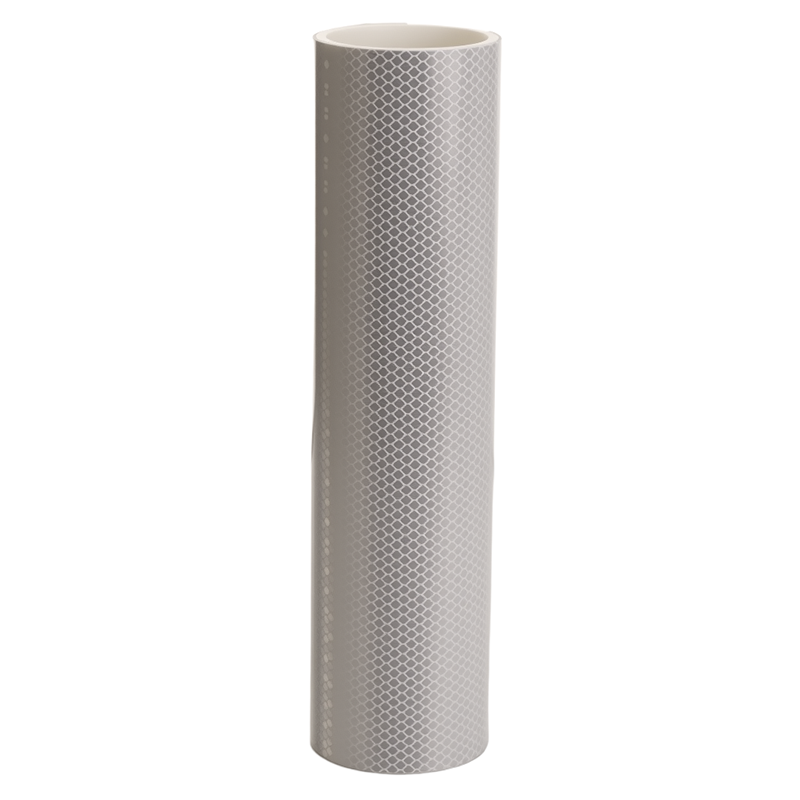

DM5600 Engineering Grade Prismatic (EGP) Series (1).png

DM5600 Engineering Grade Prismatic (EGP) Series (2).png

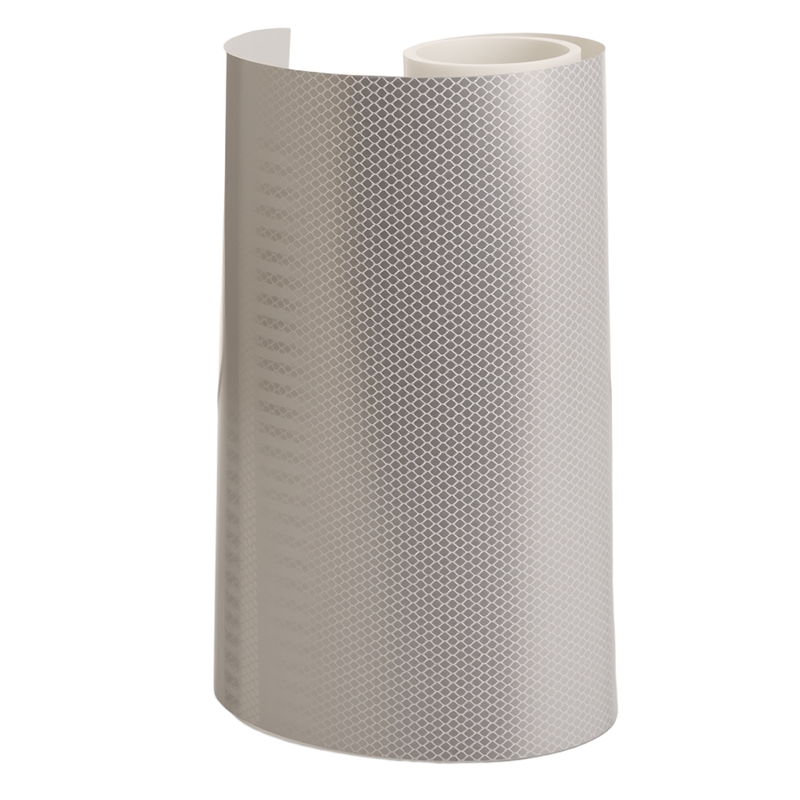

DM5600 Engineering Grade Prismatic (EGP) Series (3).png

DM5600 Engineering Grade Prismatic (EGP) Series (4).png

DM5600 Engineering Grade Prismatic (EGP) Series (5).png

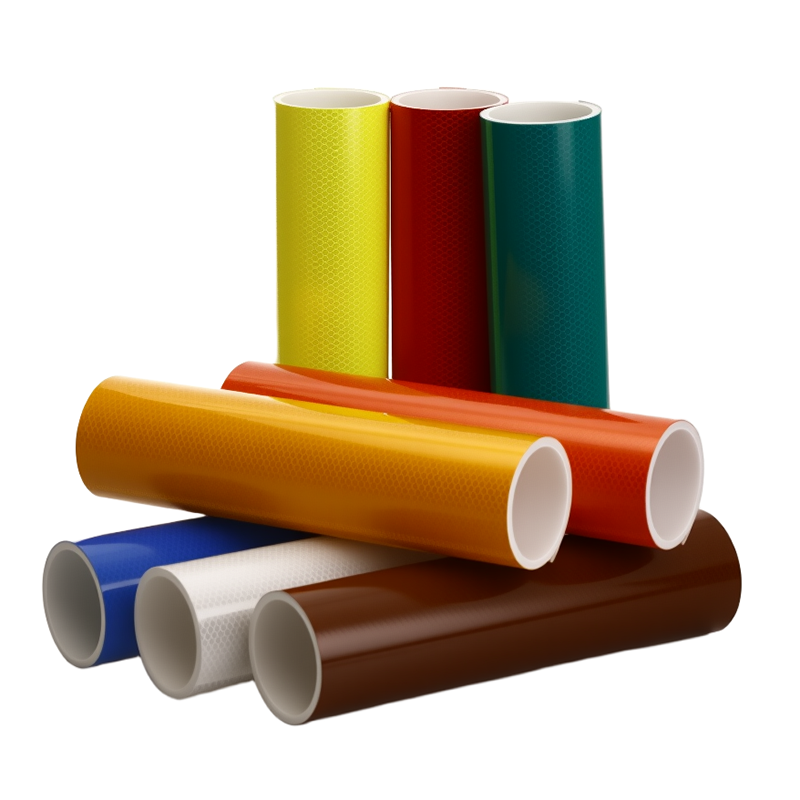

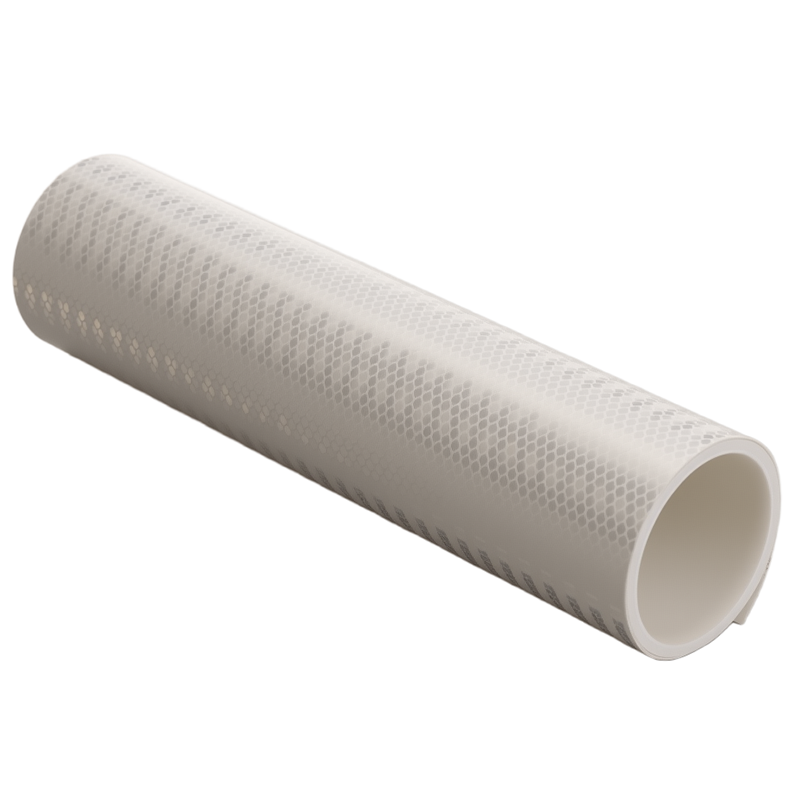

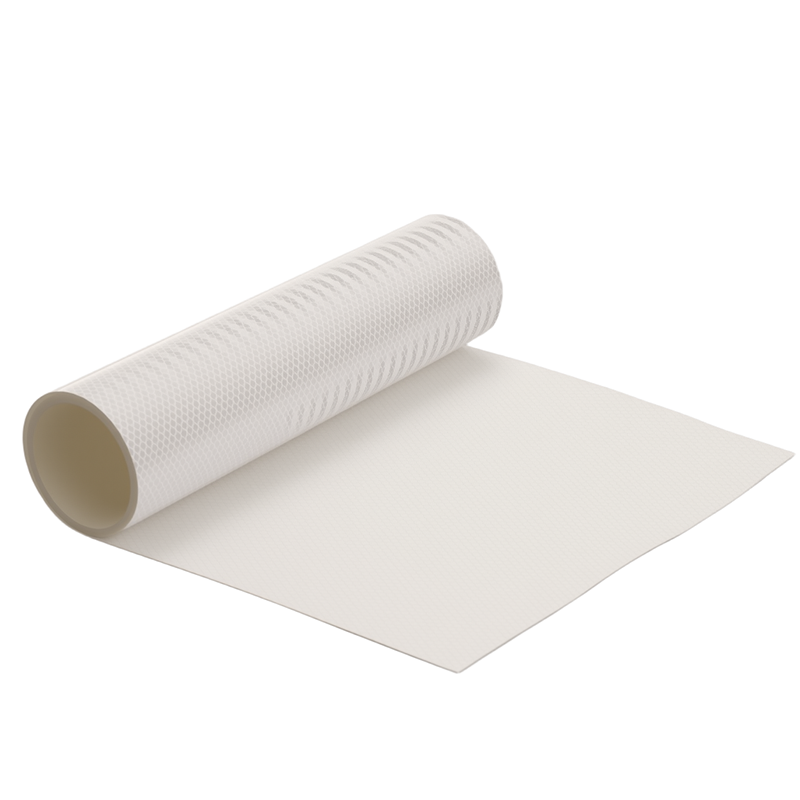

DM5600 Engineering Grade Prismatic (EGP) Series

DM5600 Engineering Grade Prismatic Series is a non-metalized microprismatic lens reflective sheeting, using PMMA front film and its retro-reflective system consisting of sealed cell of air backed microprisms units, and using total internal reflection technology. DM5600 series is a highly reflective, durable and self-adhesive sheeting with excellent weather resistance. This product is designed for permanent traffic signs, crossing signs and street signs that require long-term durability.

Product model	Product specifications
DM5600	1.22m45.7m/roll, 0.61m45.7m/roll
Product color	Certified:
white, yellow, orange, red, green, blue, brown	ASTM D4956 Type 1, AS/NZS 1906.1:2017 Class 100, KS A 3507 Type 1
Surface layer:	Durability:
PMMA	7 years
Application:	Processing:
permanent traffic signs, crossing signs, street signs etc.	screen printing, die cutting, digital printing

SEND INQUIRY

Details

Features

Features

1.Excellent processing performance

DM5600 prismatic reflective film has excellent processing performance, moderate thickness, can well cover the defects of the substrate and has strong tensile strength and interlayer bonding strength. It will not deform, delaminate or tear during processing.

2. Excellent bonding performance

DM 5600 prismatic reflective film uses high-efficiency pressure sensitive adhesive, which is strong and durable. While bonding the bottom, the thickness of the adhesive layer is moderate, and engraving is convenient and efficient. It will not fall off regardless of the high temperature of 60℃ or the low temperature of -40℃.

3. Strong weather resistance

DM5600 prismatic reflective sheeting uses PMMA surface and has strong durability. The service life is up to 7 years.

DM5600 prismatic reflective sheeting is a reflective material made based on the refraction and total reflection principle of cubic corner cones. The surface finish of each cubic corner cone reaches 5nm and the size error is less than 1μm. It has better reflective effect, longer visible distance and better recognition effect.

Related Products List

Product Model	Product Name	Specification	Color	Processing
DM7600	High Intensity Prismatic(HIP) Grade DM7600 Series	1.22m45.7m/roll 0.61m45.7m/roll	White, Yellow, Orange, Red, Green, Blue, Brown, Fluo-Yellow Green, Fluo-Orange	Screen printing, die cutting, digital printing
DM8900	DM8900 Platinum Grade Prismatic Series	1.22m45.7m/roll 0.61m45.7m/roll	White, Yellow, Orange, Red, Green, Blue, Brown, Fluo-Yellow Green, Fluo-Orange	Screen printing, die cutting, digital printing

Wide Applications

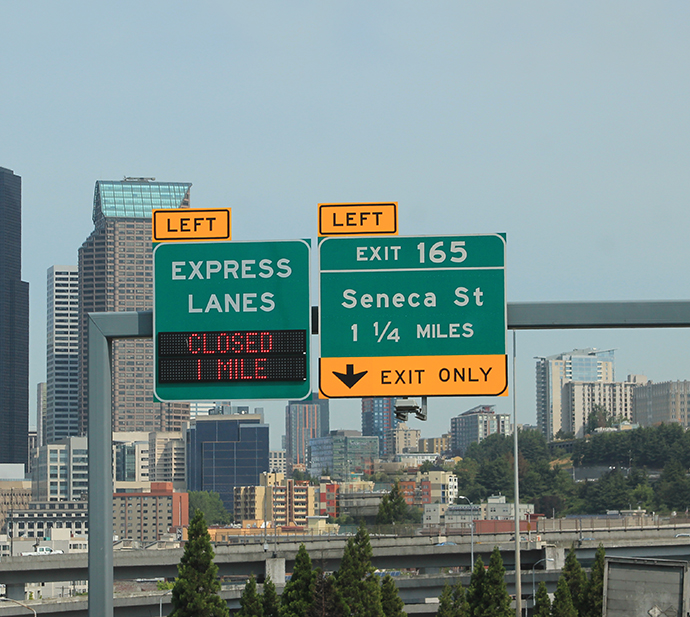

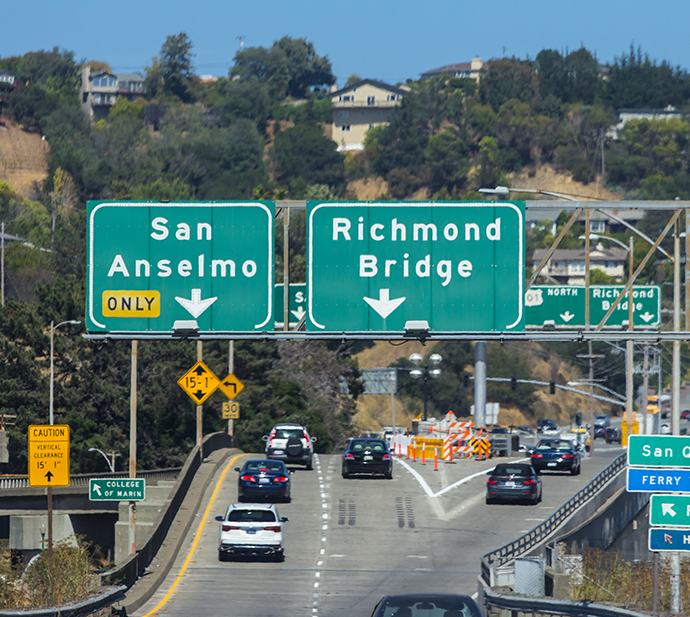

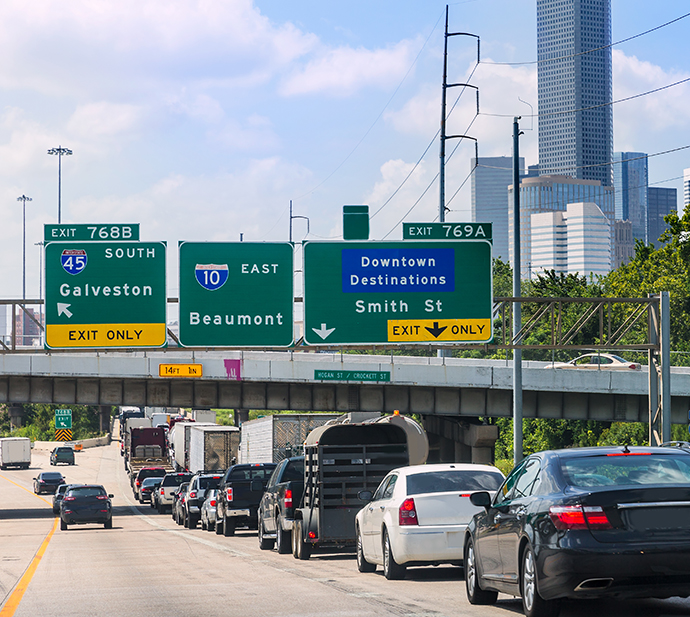

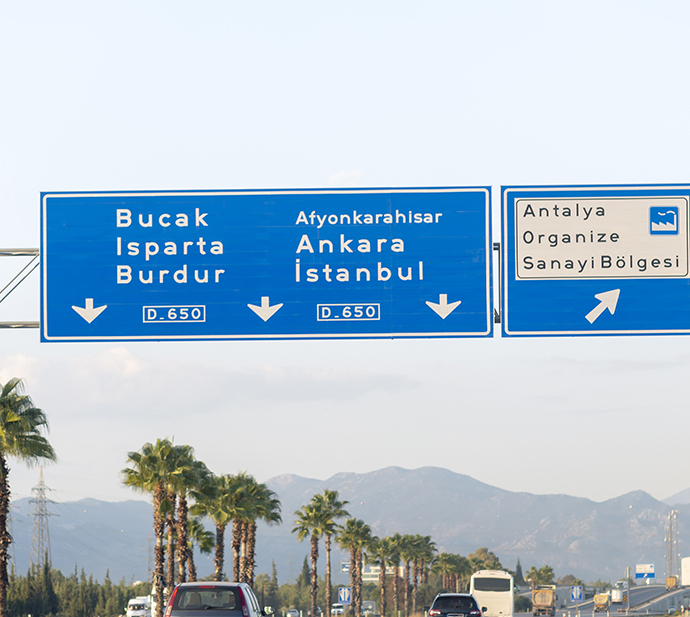

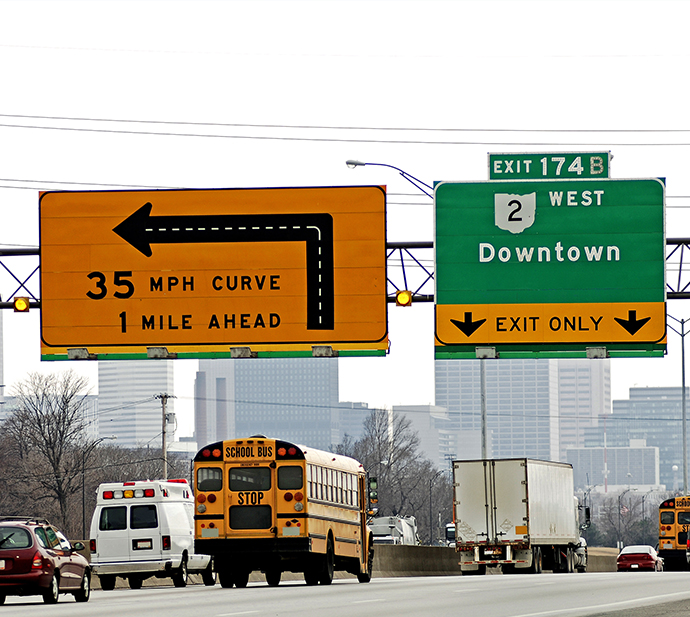

Suitable for all kinds of permanent logos and signs

signs

010203

How to distinguish DM8900, DM7600, DM5600？

Method 1: Look at the apparent color in the normal light state

Industrial-Reflective-Silver-Cloth_01_031

Bright reflective cloth

Appearance: Dark grey
The reflection brightness is low
Do not wash, scratch resistant

Industrial-Reflective-Silver-Cloth_01_03

Highlighter reflective cloth

Appearance: grey
The reflection brightness is medium
Washing times 25 times

Industrial-Reflective-Silver-Cloth_01_033

Highlighter reflective cloth

Appearance: silver gray
High reflective brightness
Washing times 25 times
The reflection brightness is low
Do not wash, scratch resistant

Method 2: Look at the brightness of the reflective state

// DM // Product Use Tips

01 /

Adhesive Application

DM5600 Engineering Grade Prismatic series sheeting is recommended to use on the aluminium and steel boards. When used on a High-density polyethylene (HDPE) surface or PP surface, different kinds of adhesives for these surfaces can be offered.

02 /

Entrance Angularity Performance and Orientation

DM5600 Engineering Grade Prismatic sheeting has a wide angle reflectivity. However, the efficiency of light return from cube corner reflectors is not equal at all application orientations. DM5600 series is recommended to apply at 0°orientation. See the picture below for details.
