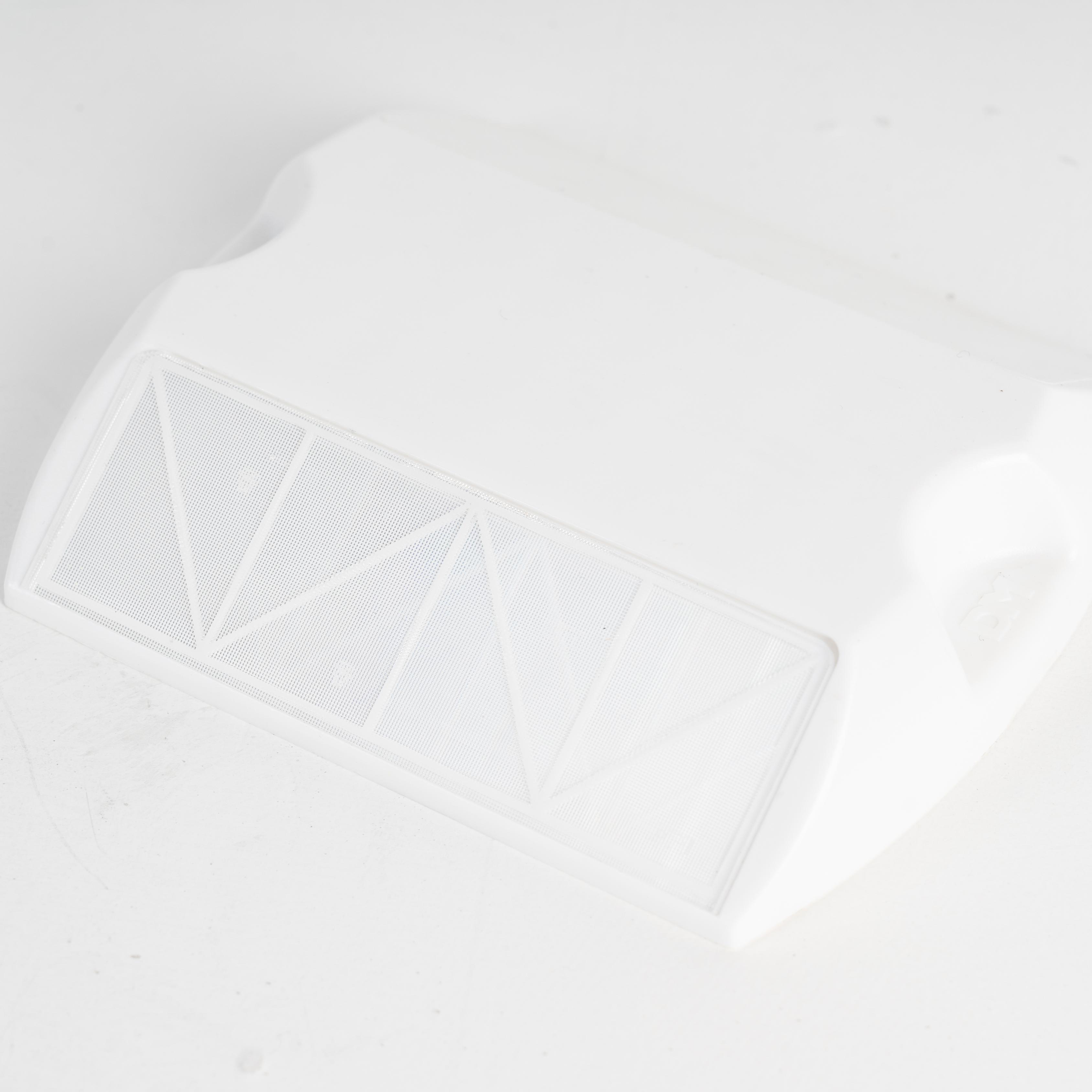

DM501 Road Stud (1).jpg

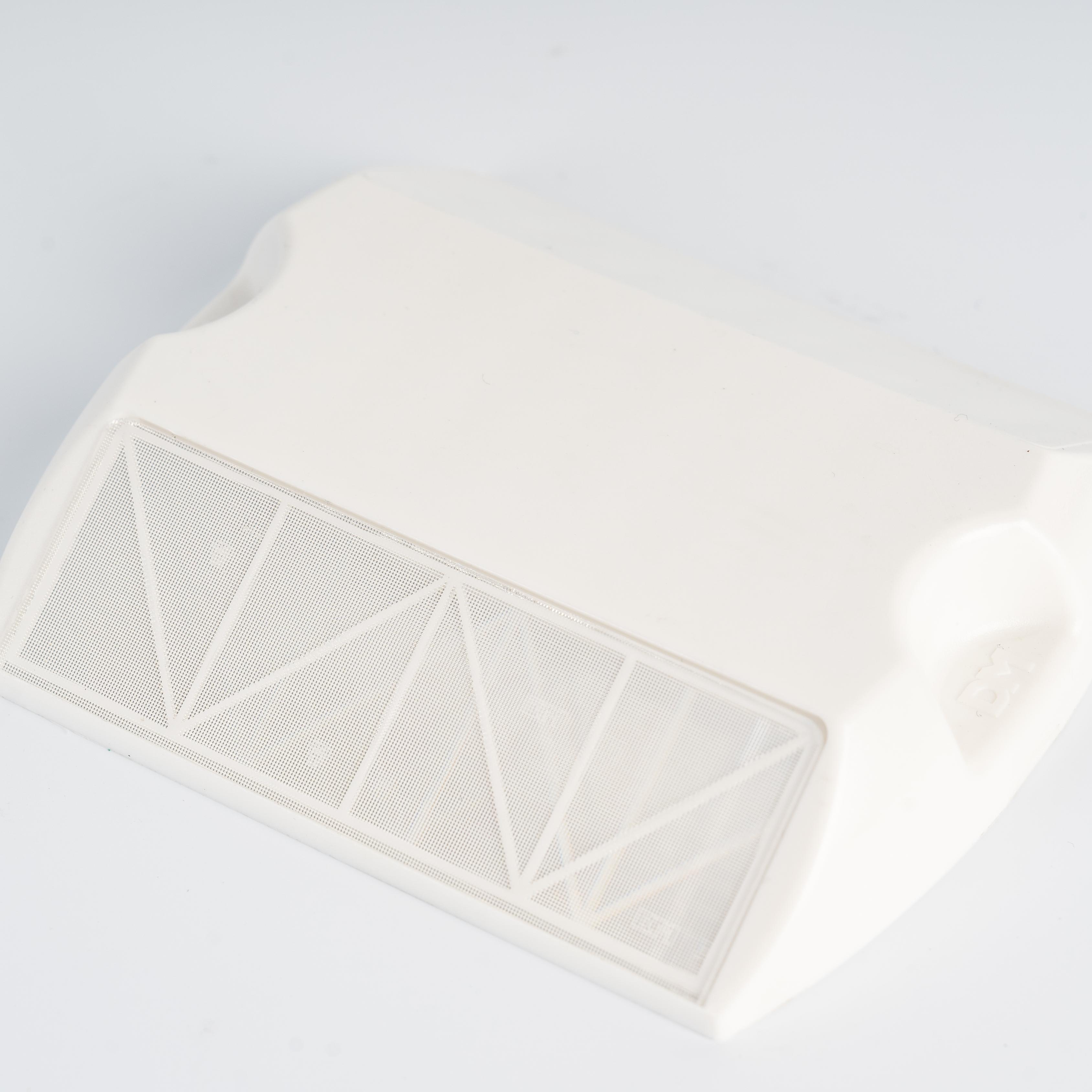

DM501 Road Stud (2).jpg
DM501 Road Stud (3).jpg

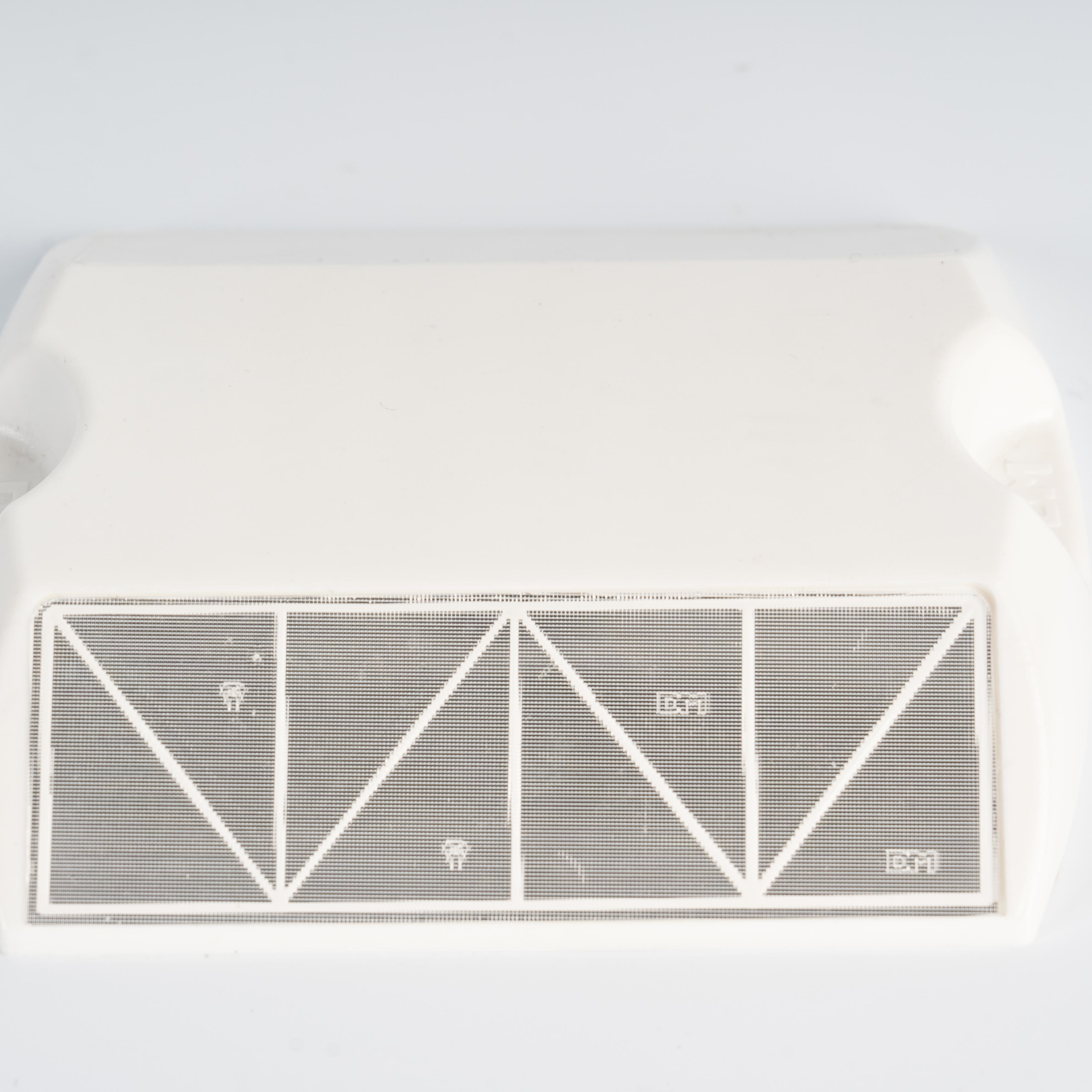

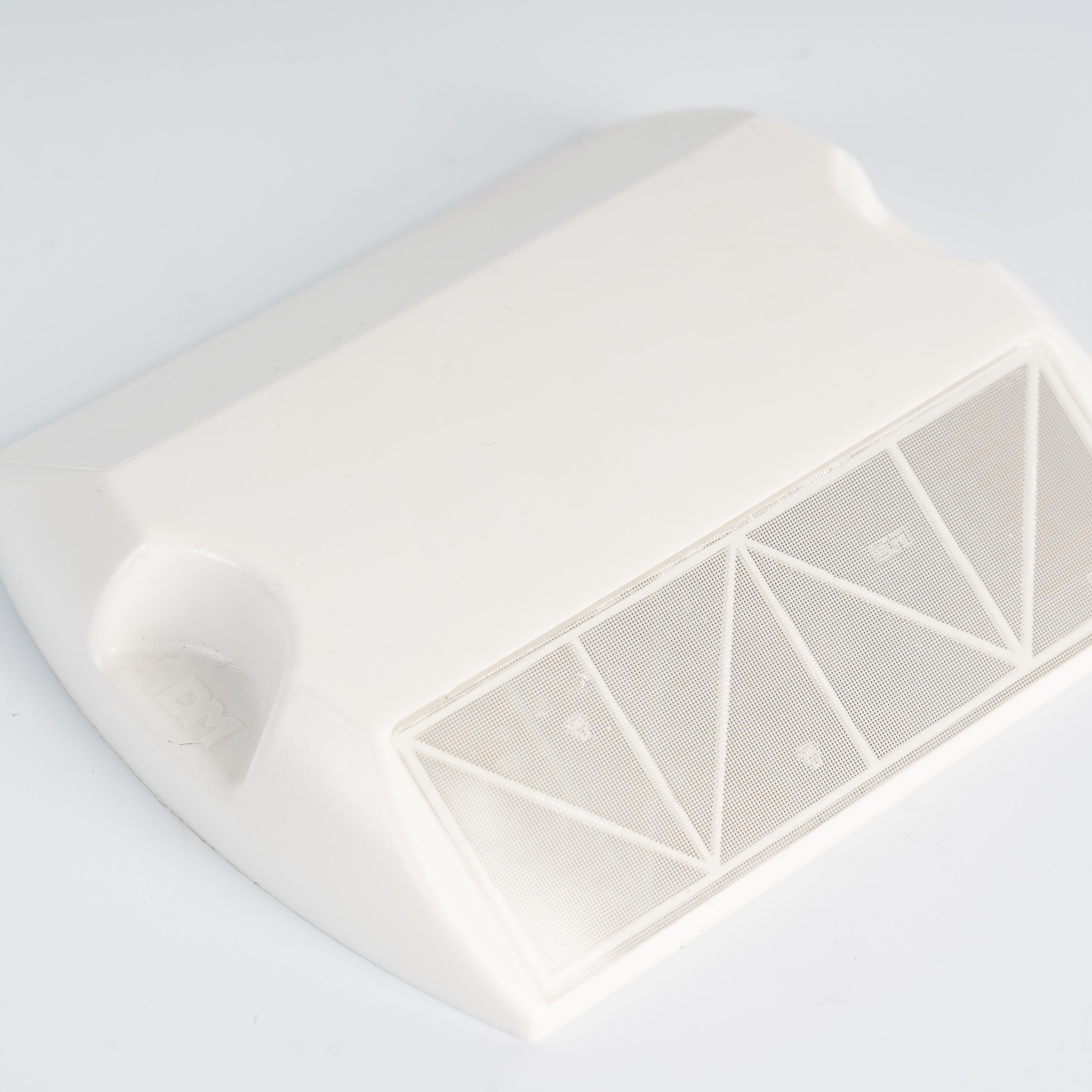

DM501 Road Stud (4).jpg

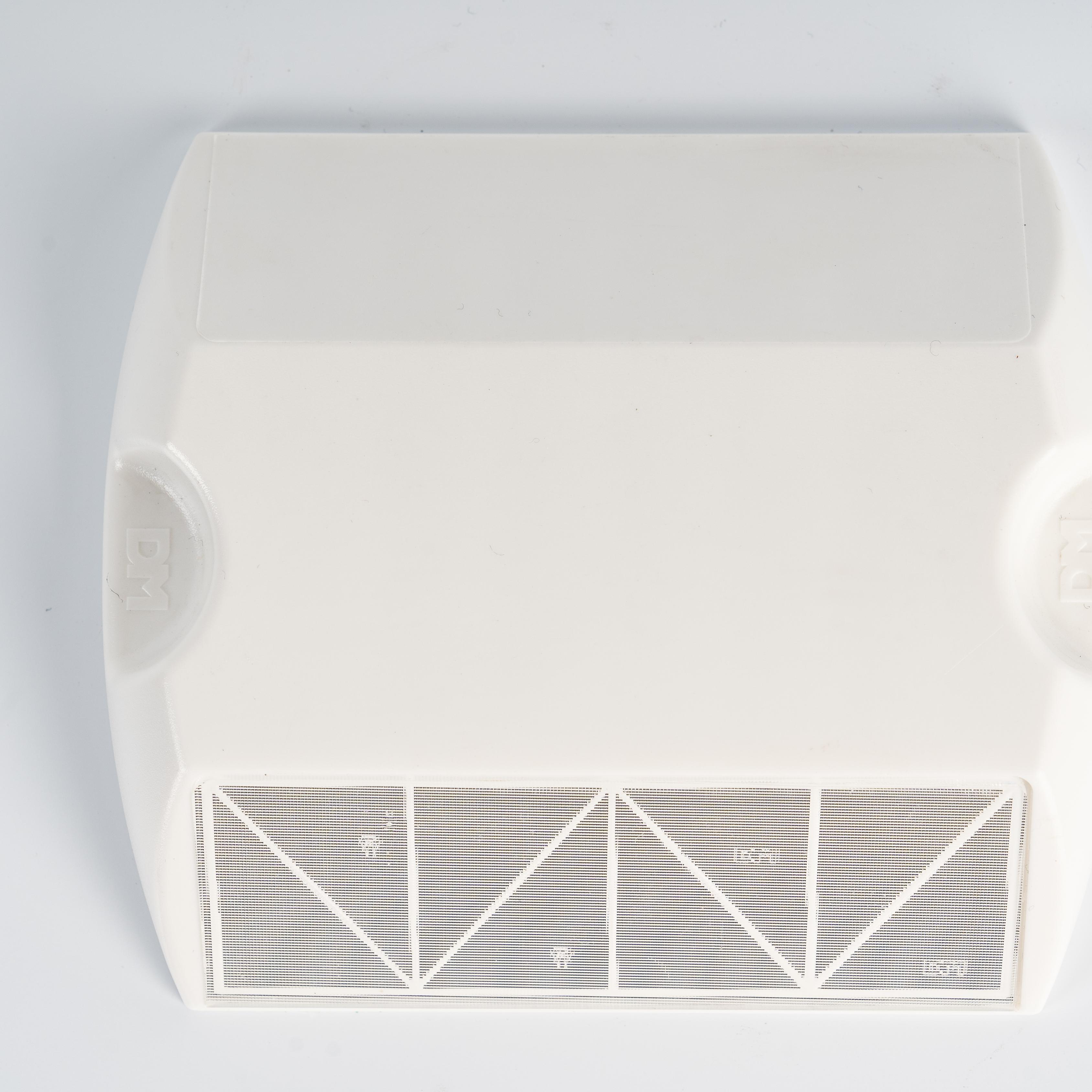

DM501 Road Stud (5).jpg

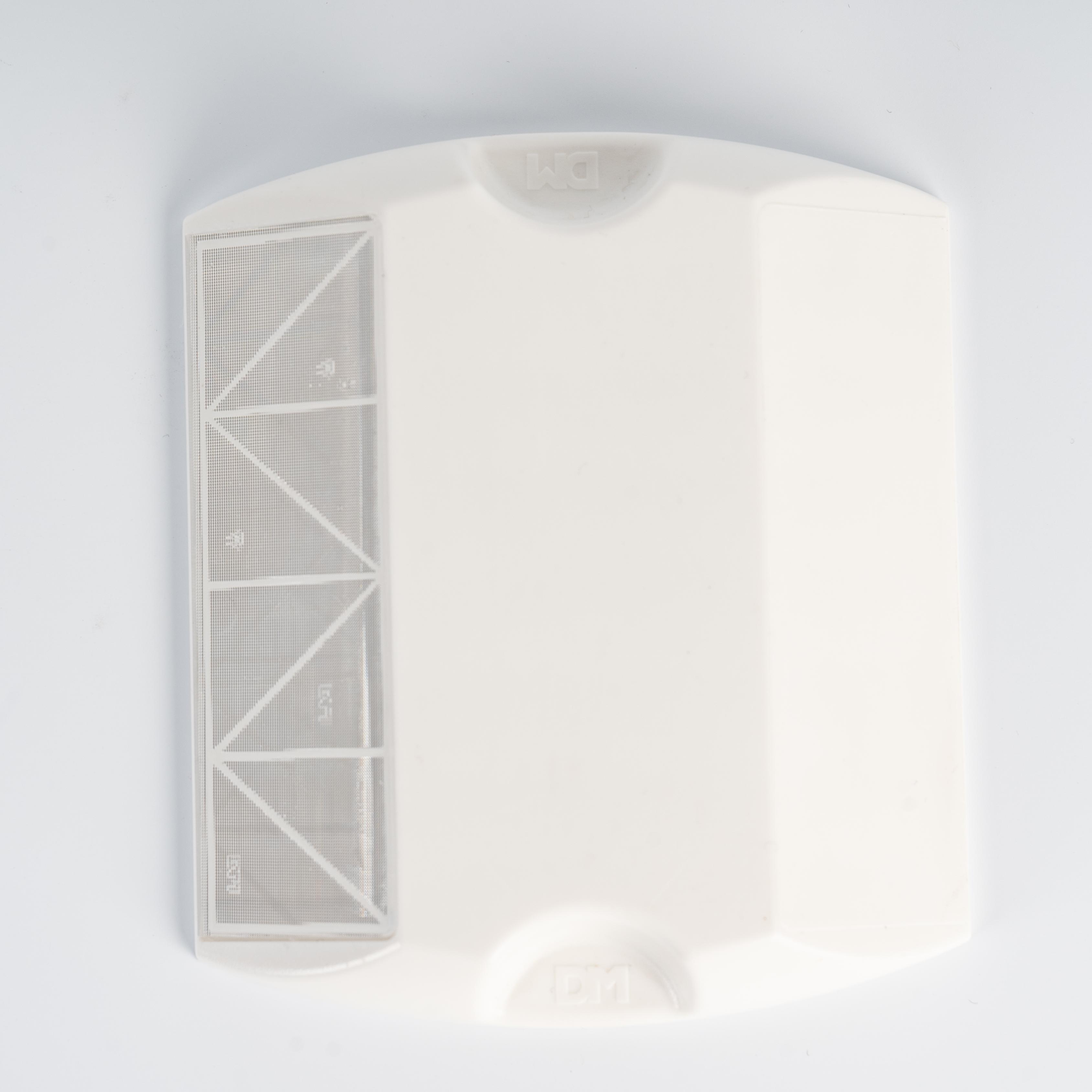

DM501 Road Stud (6).jpg

DM502 road stud

The DM502 raised road stud is made of engineering plastic and micro-prismatic retroreflector, which has the advantages of high-brightness, excellent wide-angle performance, high compressive resistance, abrasion resistance, etc. It is widely used in speed hump warning, curved roads, lane division, parking spaces, and other applications.

SEND INQUIRYDM_20250418165110_001
  • iso9001-2
  • iso9001-4
  • iso9001-1
icon1Detailsicon2 Featuresicon4Related Productsicon3Application tips1Use Tipsicon5Customization

Features

1. Micro-prismatic Structure Reflector Formed by Compression Molding
Globally, only Daoming and 3M employ the process of forming micro-prismatic structure reflectors through compression molding. This reflector process allows for more convenient customization, as it can be cut to the size required by customers. In contrast, integral injection molding requires customized molds and has a longer production cycle.

2. Exceptional Retroreflective Performance
The micro-prismatic structure utilizes the principle of light reflection to efficiently reflect incident light. When illuminated by external light sources such as vehicle headlights, it can return light along the original path, guiding vehicles to drive correctly and reducing accident risks.

3. SSlope Facing Traffic Direction with 35-Degree Inclination
This slope precisely matches the headlight beam angles of vehicles, particularly small cars, during driving. Additionally, in scenarios such as vehicle cornering or lane changing, it adapts better to changes in headlight angles, ensuring continuous and stable retroreflection. This aids drivers in anticipating road directions and enhances driving safety.
Contact us

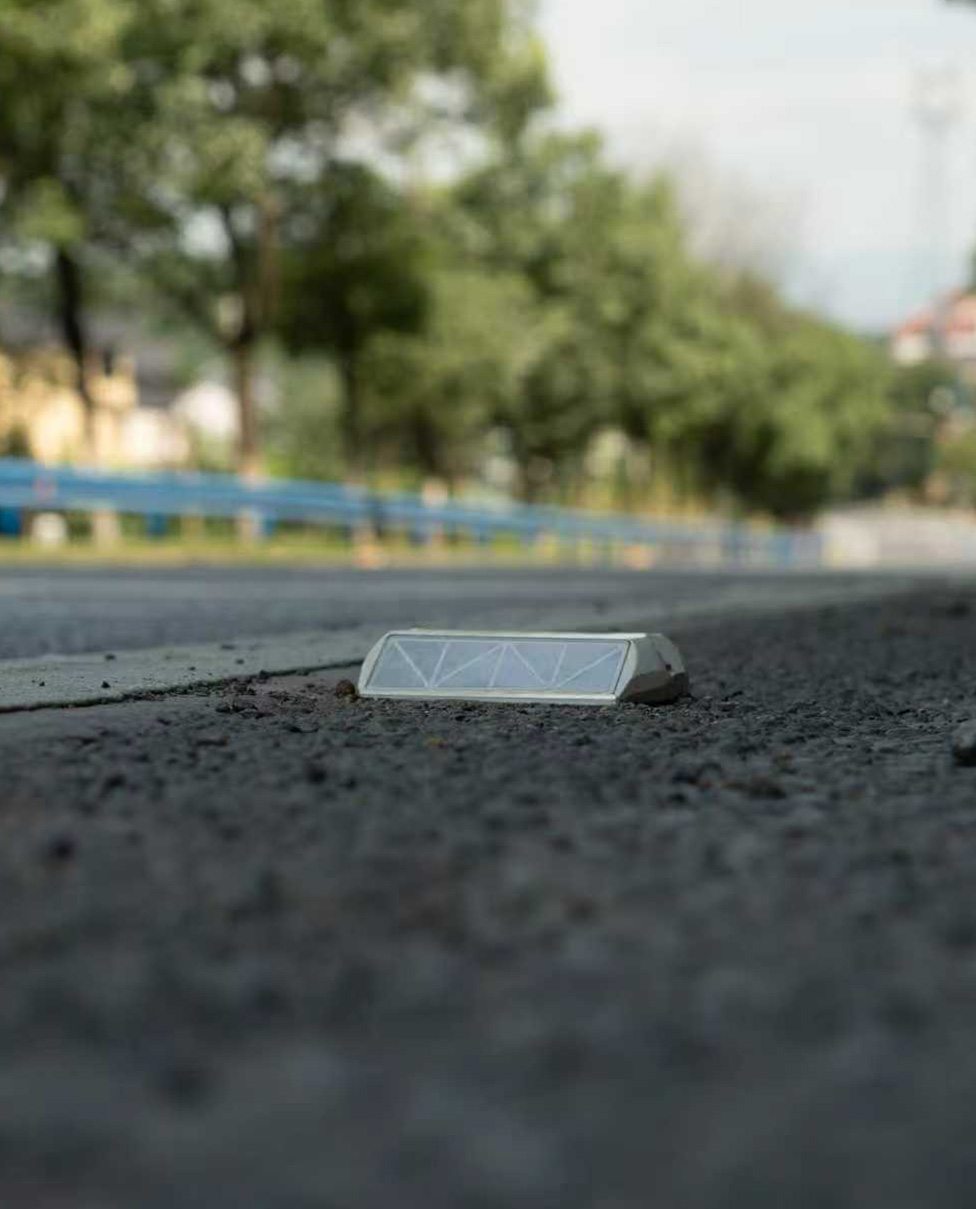

特点右侧图976-1209

Related Products List

Product Model

Product Name

Specification

Color

Slope Facing Traffic Direction

DM501

road stud



100*100*20mm

white, yellow

35°

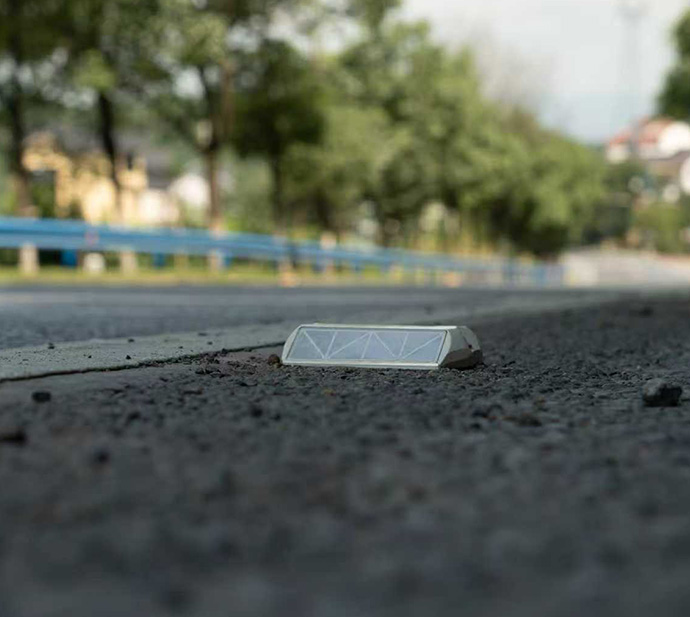

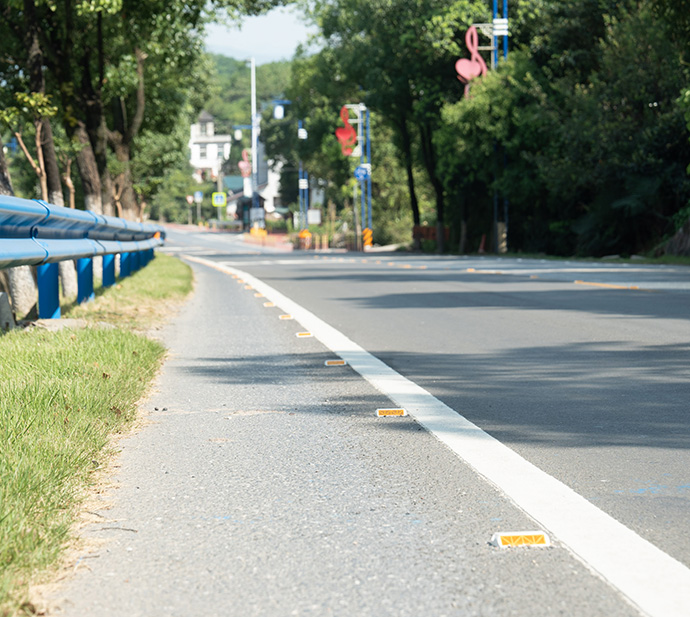

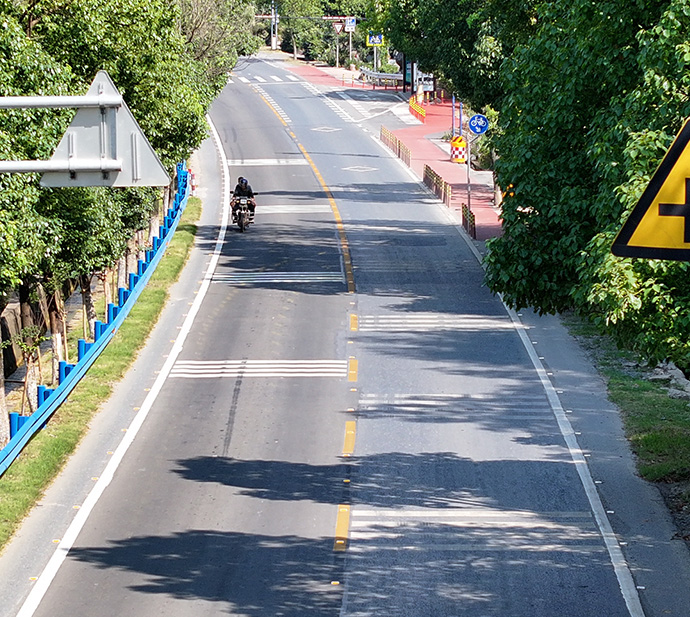

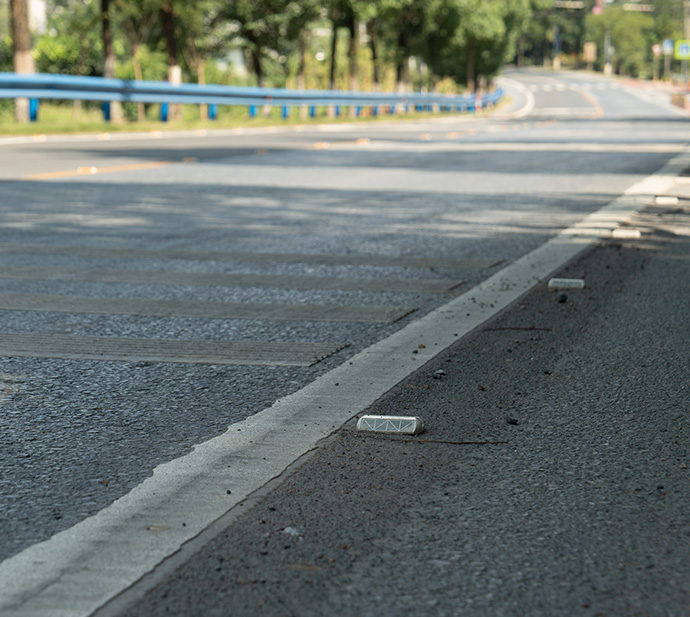

Wide Applications：

Roadside signs for tunnels, bridges, and winding roads, especially in curved sections, mountainous areas, and regions with frequent sharp bends.

roads

roads

roads2

roads2

roads3

roads3

roads4

roads4

01

Distinguish

Method 1: How to distinguish between road stud 501 and road stud 502?

Industrial-Reflective-Silver-Cloth_01_031
Different Slopes Facing the Traffic Direction
For DM501, the slope facing the traffic direction is 30°; for DM502, it is 35°.
Industrial-Reflective-Silver-Cloth_01_03
Different Reflector Manufacturing Processes
The reflector of DM501 is an integral injection-molded prismatic structure made of acrylic, while DM502 features a micro-prismatic structure formed by compression molding with a composite material of PMMA and PC.

// DM // Product Use Tips

01 /

 Packaging

The bases of the road studs are stacked bottom to bottom and arranged neatly and compactly in the carton to avoid collisions between retro-reflectors. The outer packaging shall be marked with internationally recognized symbols: Keep Dry, Keep Away from Sunlight, Do Not Stack, Keep Away from Fire and so on.
02 /

Transportation

Road studs should be avoided from extrusion, impact, sunshine, and rain during transportation.
03 /

Storage

The product should be placed in a dry, cool, well-ventilated environment. The stacking height should not exceed 1meter, and the product should be kept away from heat sources. The storage period shall not exceed 12 months from the date of leaving the factory.
