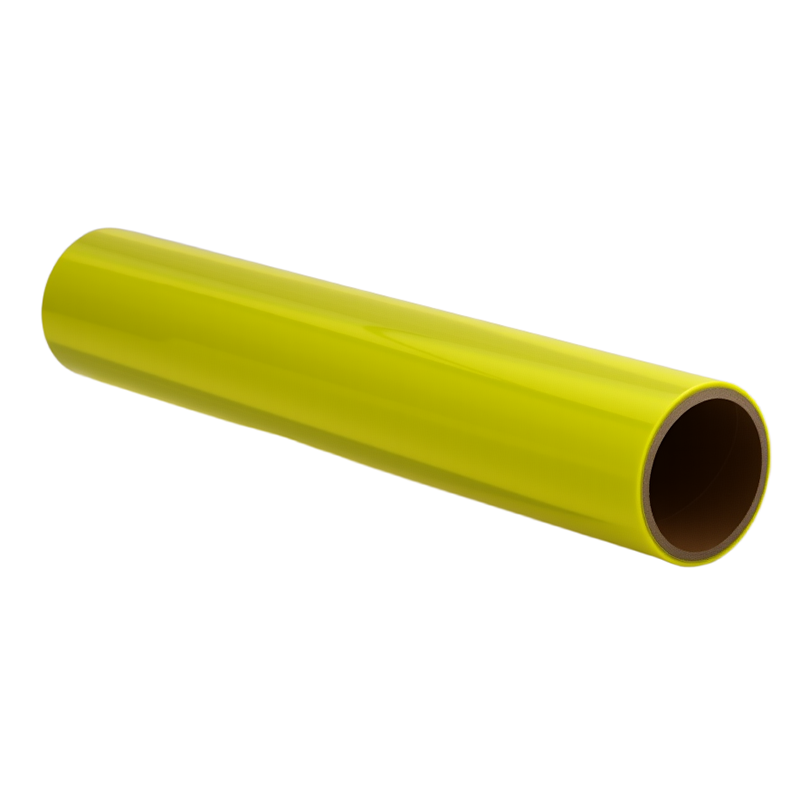

DM3802 PVC Prismatic Reflective Tape (2).png

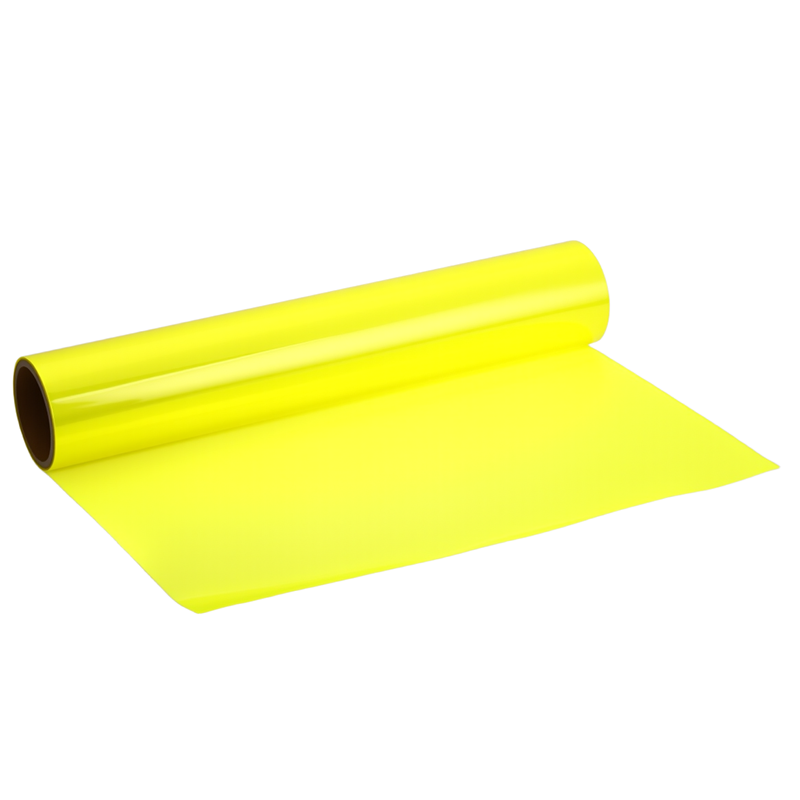

DM3802 PVC Prismatic Reflective Tape (4).png

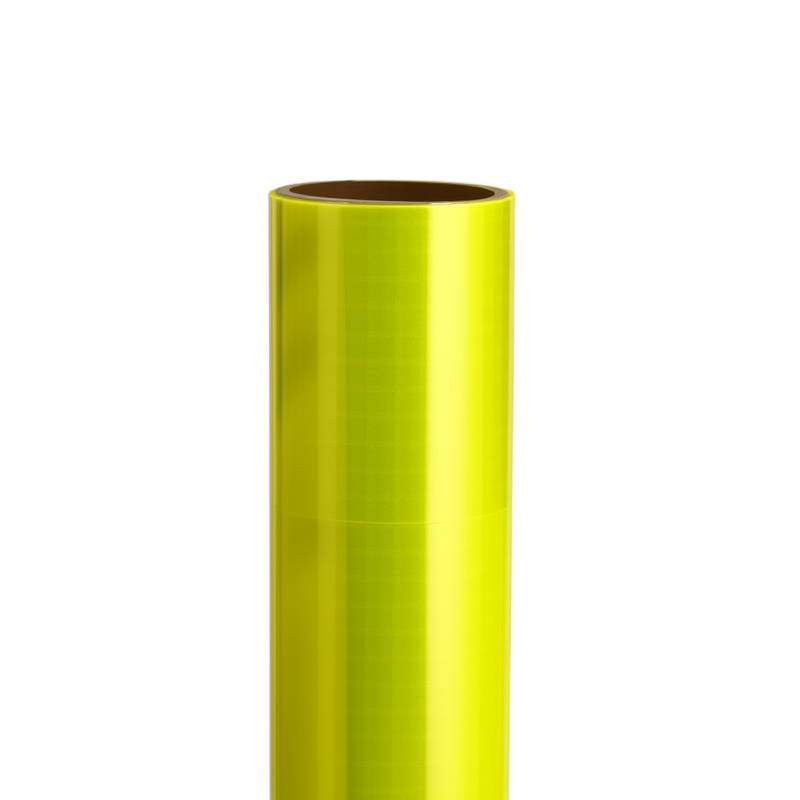

DM3802 PVC Prismatic Reflective Tape (1).png

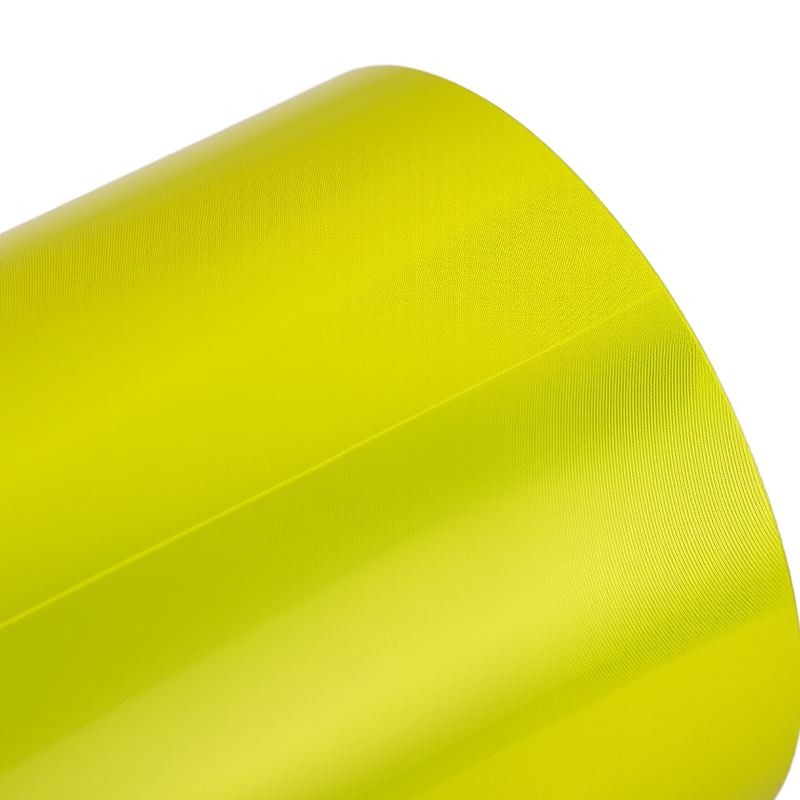

DM3802 PVC Prismatic Reflective Tape (5).png

DM3802 PVC Prismatic Reflective Tape

Crafted from high-strength PVC material with integrated precision lattice structures, DM3802 can be easily sewn onto various fabrics and substrates. Its vibrant fluorescent yellow delivers exceptional light reflection, ensuring strong visual warning effects in both bright daytime and low-light nighttime conditions. The PVC material exhibits excellent weather resistance, effectively resisting moisture, dust, and UV radiation, thereby maintaining long-term stability and performance even after prolonged outdoor exposure. Widely used in reflective vests, safety jackets, work uniforms, and other applications, the product's highly visible fluo-yellow retroreflection creates a reliable safety barrier for users, comprehensively meeting outdoor safety protection requirements.

Product model	Product specifications
DM3802	5cm*50m
Product color	Material
Fluo-Yellow	PVC
Thickness	Processing
450um±10um	sewing
Reflectance	Washing Performance
≥500cd/(lx·m2)	30 cycles at 60°C (ISO 6330 standard)
Dry cleaning	Certified
5 cycles (ISO 3175 standard)	GB20653, GA446, OEKO-TEX100, CSA Z96, ENISO 20471, ANSI, ISEA 107

SEND INQUIRY

Details

Features

Features

Exceptional Reflectivity

Featuring a fluorescent yellow lattice tape, the DM3802 delivers exceptional retroreflective performance with a brightness of 500 cd/lx/㎡, significantly exceeding industry standards. It ensures clear visibility at distances up to 300 meters across various challenging conditions, including nighttime, low-visibility environments, rainy weather, dawn, and dusk. When sewn onto fabrics or garments, its superior light-reflective properties enhance target recognition and visual warning effects, providing reliable safety protection.

Exceptional Performance and Durability

The DM3802 integrates excellent wash resistance and environmental adaptability. Made of high-quality PVC, it maintains structural integrity in both high and low temperatures due to its outstanding thermal stability and low-temperature flexibility. With weather resistance and UV protection, it is suitable for extreme climatic conditions. Complying with ISO 6330 and ISO 3175 standards, the product retains strong reflectivity after 30 cycles of washing at 60℃ and 5 dry cleaning cycles, making it ideal for safety equipment requiring frequent cleaning and providing users with long-lasting, reliable safety protection.

Diverse Application Scenarios

The DM3802 combines excellent durability and high reflectivity with a soft, flexible texture. Its pliable structure conforms closely to various fabrics and complex garment contours, ensuring safety protection while significantly enhancing wearing comfort. Widely compatible with different types of clothing, including reflective vests, safety jackets, and work uniforms, it provides flexible and reliable high-visibility safety solutions for diverse scenarios.

Related Products List

Product Model	Product Name	Specification	Color	Processing
D3802	PVC Prismatic Reflective Tape	5cm*50m	Fluo-Yellow	sewing
D3901				sewing

Wide Applications

Reflective Vests

Work Uniforms

// DM // Product Use Tips

01 /

Washing Instructions

Use a standard household washing machine and neutral detergent (PH 7). Ironing is not recommended unless necessary; if needed, use medium-temperature ironing, but steam ironing is prohibited. Do not use bleach.

02 /

Sewing Instructions

A 2mm gap should be maintained between the sewing thread and the edge, with stitch density less than 5 stitches per centimeter. It is recommended to use 100% polyester thread. By controlling stitch density and tension, excessive stitching or tension can be prevented from causing membrane cracking or wrinkling, thus preserving the product's flexibility and durability.

03 /

Storage

Store in a cool, dry, and moisture-free place, and use within 1 year of receipt. Rolls should be stored in their original cartons, whilst partially used rolls should be returned to their carton. The retroreflective performance of all reflective materials is vulnerable to contamination—any dirt, such as liquid chemicals, grease, etc., will diminish the brightness of the affected area.

DM Customization Process

Selection

Determine product model, color, quantity, price and delivery time. The mold lines for high-frequency welding can be modified through custom molds.
Order

Obtain detailed technical data sheets with customized solutions.
Proofing

Confirm with the customer after making the sample
Production

Initiate mass production and promptly update the production status.
Shipment

Arrange shipment immediately after final acceptance is completed.
