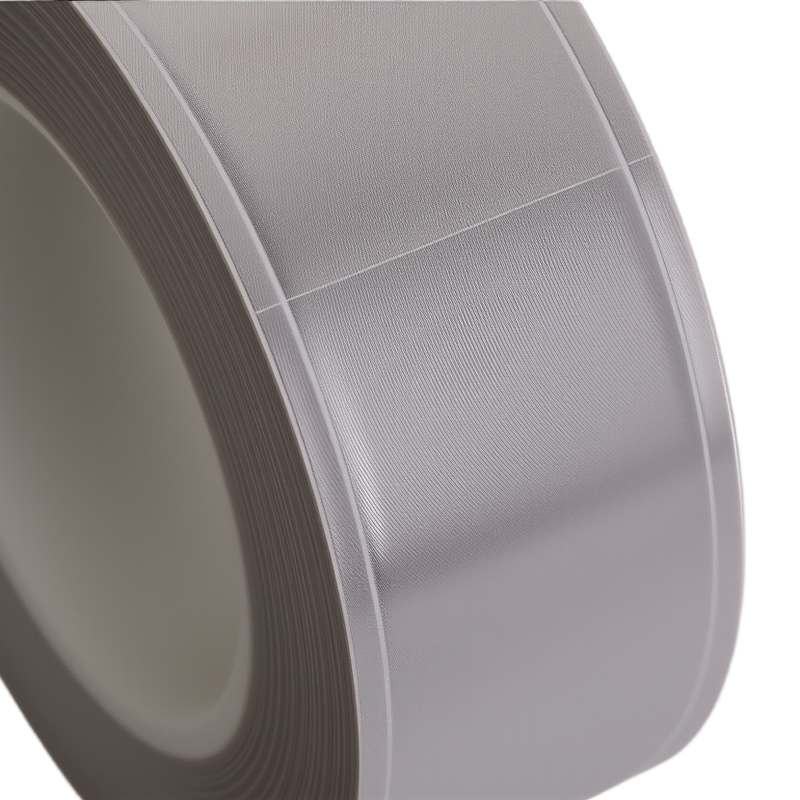

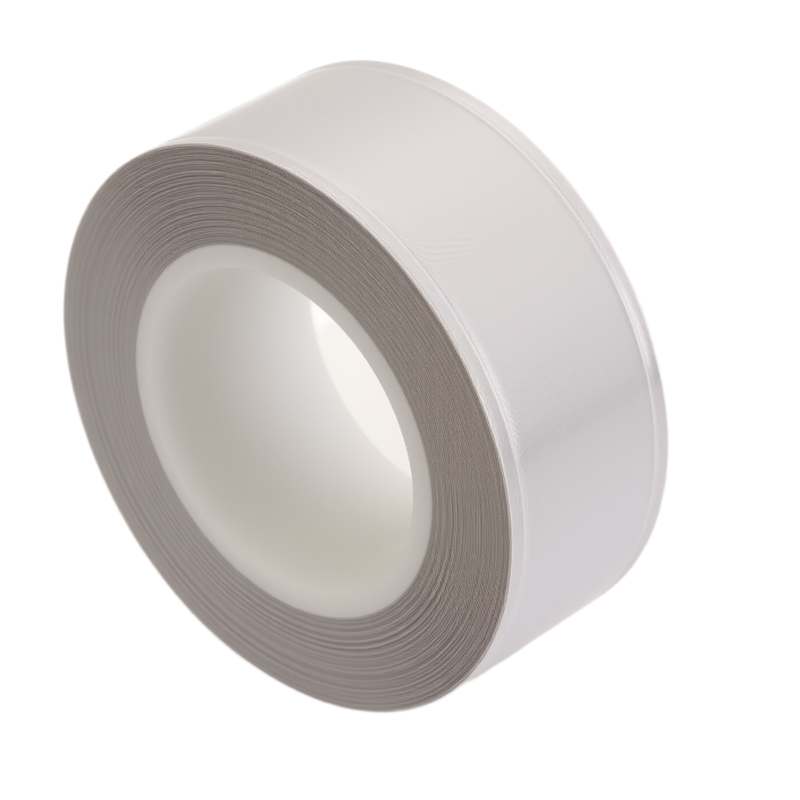

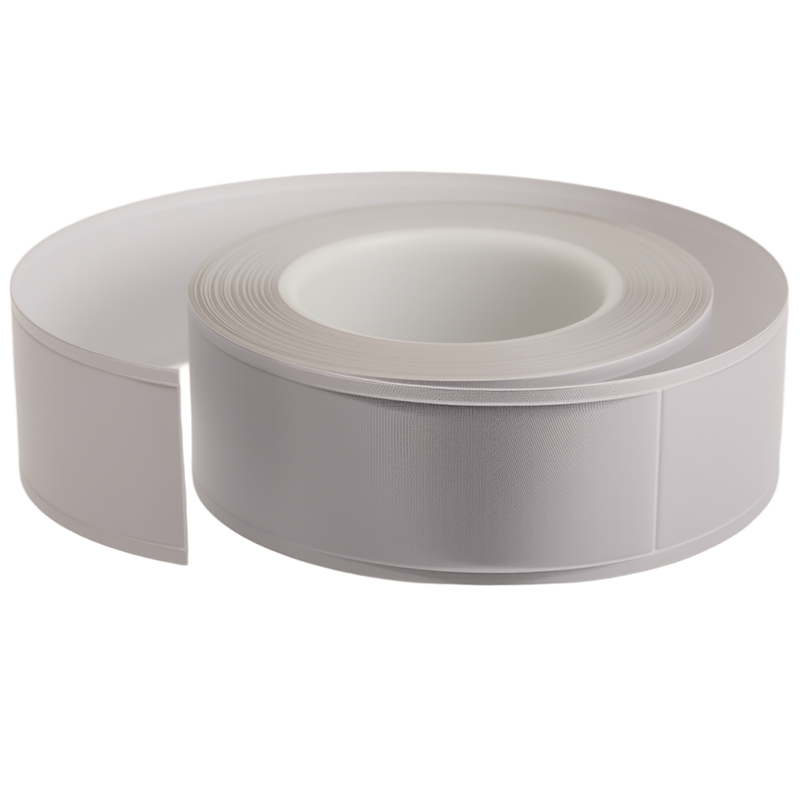

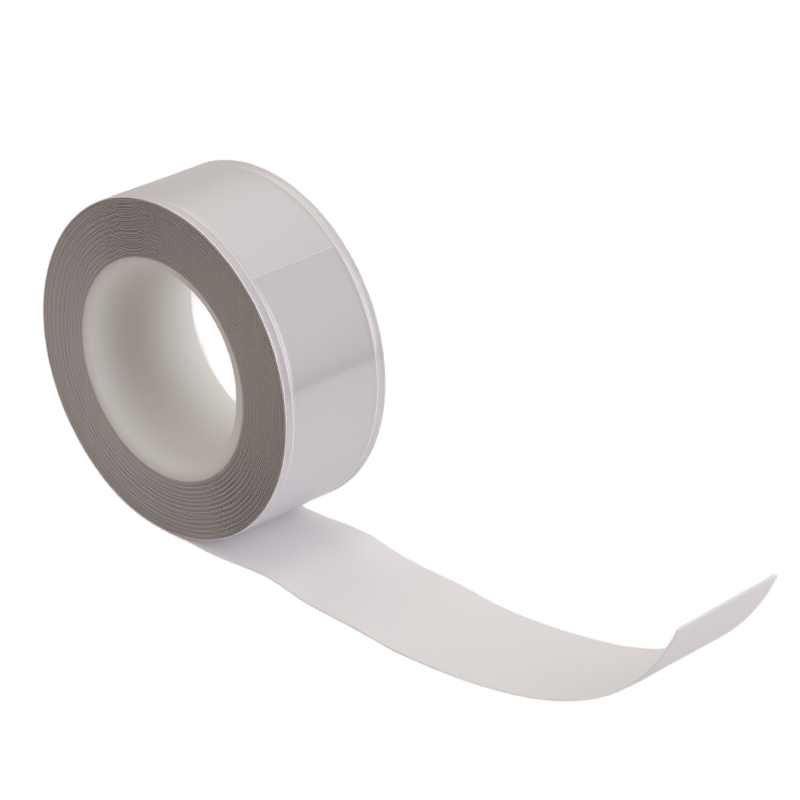

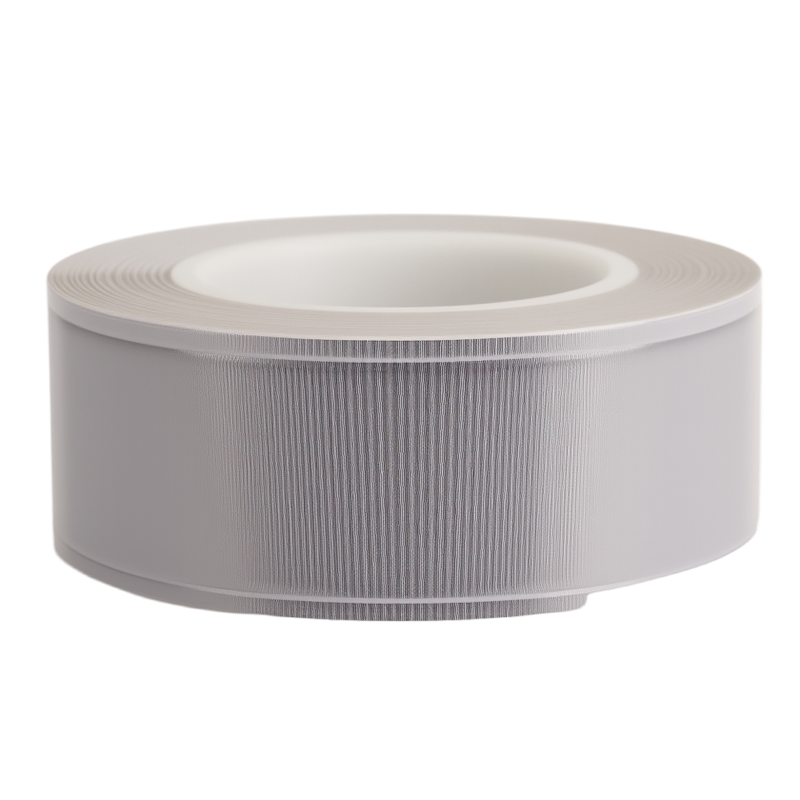

DM3801 PVC Prismatic Reflective Tape

DM3801 is constructed with high-strength PVC material and integrated with precise lattice structures, allowing it to be sewn onto various fabric surfaces. It enhances visibility both day and night through optical reflection principles. The PVC material features excellent weather resistance, capable of withstanding moisture, dust, and ultraviolet radiation, making it particularly suitable for long-term outdoor use. Widely applied in traffic safety, protective apparel, and outdoor work sectors, the product is commonly found in reflective vests, safety jackets, work uniforms, backpacks, hats, and other items. It plays a critical safety role in construction sites, road operations, sanitation work, and nighttime activities, meeting safety requirements across multiple application scenarios.

Product model	Product specifications
DM3801	5cm*50m
Product color	Material
White	PVC
Thickness	Processing
450um±10um	sewing
Reflectance	Washing Performance
≥600cd/(lx·m2)	30 cycles at 60°C (ISO 6330 standard)
Dry cleaning	Certified
5 cycles (ISO 3175 standard)	GB20653, GA446, OEKO-TEX100, CSA Z96, ENISO 20471, ANSI, ISEA 107

SEND INQUIRY

Details

Features

Features

Exceptional Reflectivity

The DM3801 boasts excellent retroreflective performance with a brightness of up to 600 cd/lx/㎡, far exceeding industry standards. Even in nighttime or low-visibility conditions, it strongly reflects incident light, ensuring clear visibility at a distance of 300 meters, which significantly enhances target recognition and visual warning functions.

Superior Washing Performance

The DM3801 is specially designed for long-term and high-frequency use scenarios, featuring excellent wash resistance. The product strictly complies with ISO 6330 standards, withstanding 30 cycles of washing at 60℃ and 5 cycles of dry cleaning in accordance with ISO 3175. It maintains stable reflectivity and structural integrity after washing. Thanks to its outstanding resistance to both water and dry cleaning, it is the preferred choice for work uniforms, safety equipment, and other applications requiring frequent cleaning.

Excellent High and Low Temperature Resistance

The product is made of high-quality PVC (polyvinyl chloride) material. Thanks to its stable physical properties, it resists softening or deformation at high temperatures and maintains flexibility without cracking in low-temperature environments, ensuring the integrity of the reflective lattice structure and long-lasting functionality. Additionally, the weather resistance and UV resistance of PVC provide extra protection, making it particularly suitable for safety protection in extreme climate regions and delivering reliable all-weather visibility support to users.

Related Products List

Product Model	Product Name	Specification	Color	Processing
D3802	PVC Prismatic Reflective Tape	5cm*50m	Fluo-Yellow	sewing
D3901				sewing

Wide Applications

Reflective Vests

Work Uniforms

// DM // Product Use Tips

01 /

Washing Instructions

Use a standard household washing machine and neutral detergent (PH 7). Ironing is not recommended unless necessary; if needed, use medium-temperature ironing, but steam ironing is prohibited. Do not use bleach.

02 /

Sewing Instructions

A 2mm gap should be maintained between the sewing thread and the edge, with stitch density less than 5 stitches per centimeter. It is recommended to use 100% polyester thread. By controlling stitch density and tension, excessive stitching or tension can be prevented from causing membrane cracking or wrinkling, thus preserving the product's flexibility and durability.

03 /

Storage

Store in a cool, dry, and moisture-free place, and use within 1 year of receipt. Rolls should be stored in their original cartons, whilst partially used rolls should be returned to their carton. The retroreflective performance of all reflective materials is vulnerable to contamination—any dirt, such as liquid chemicals, grease, etc., will diminish the brightness of the affected area.
