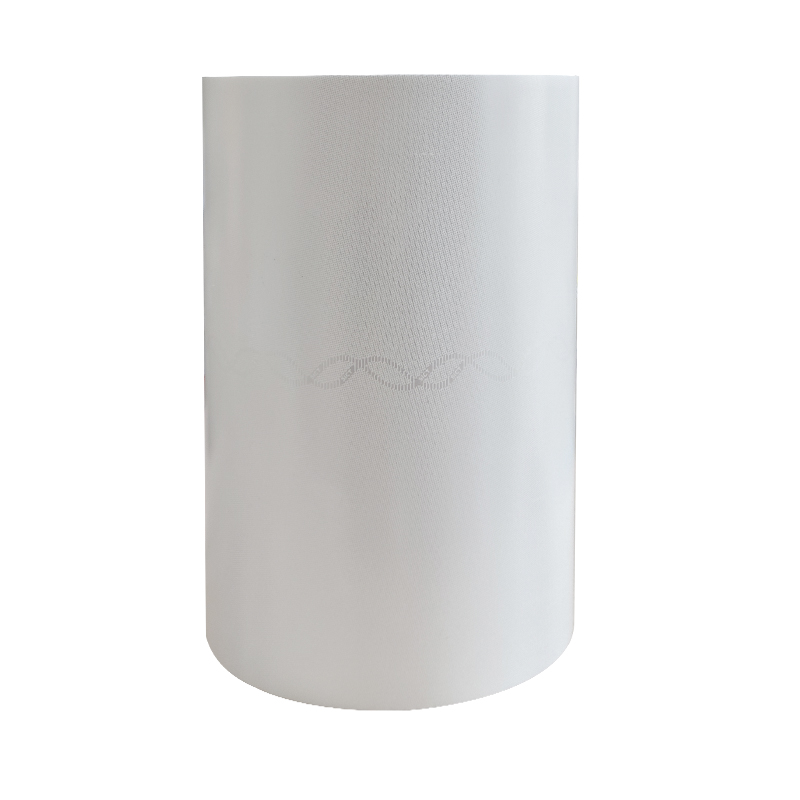

DM1950 Reflective film for license plate (1).jpg

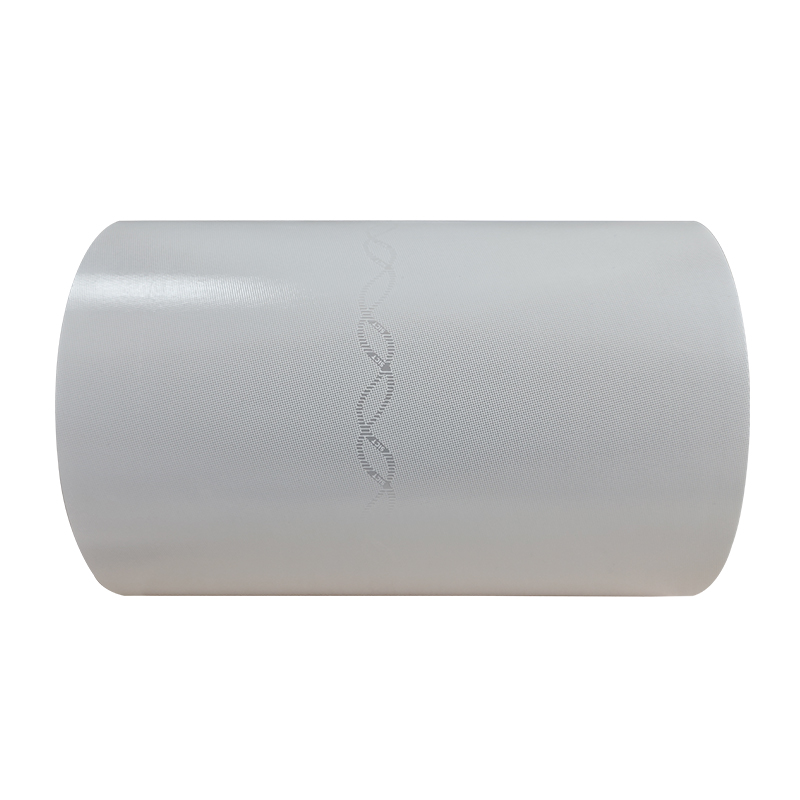

DM1950 Reflective film for license plate (4).jpg

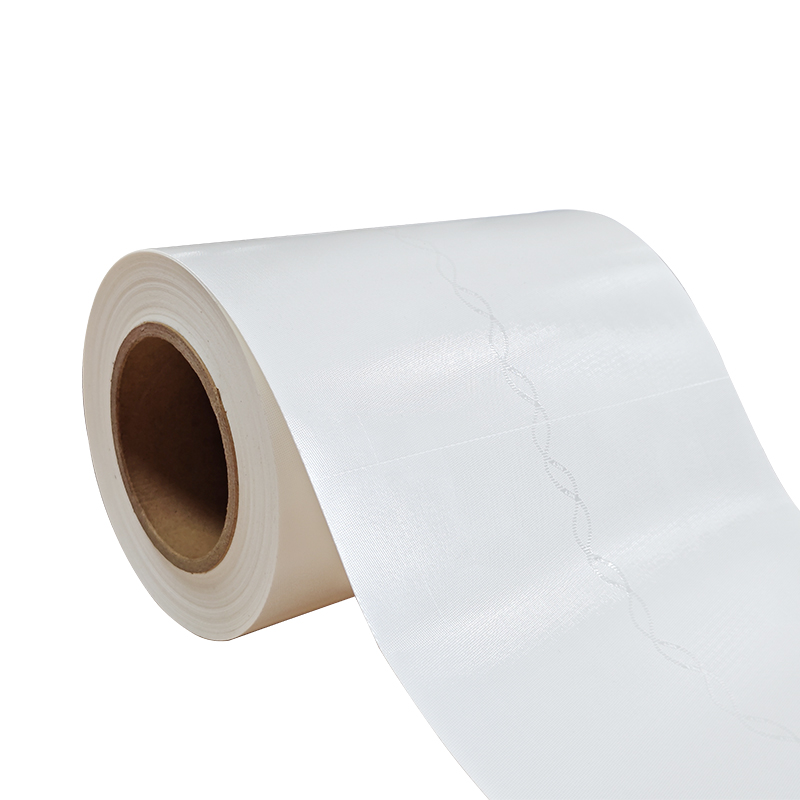

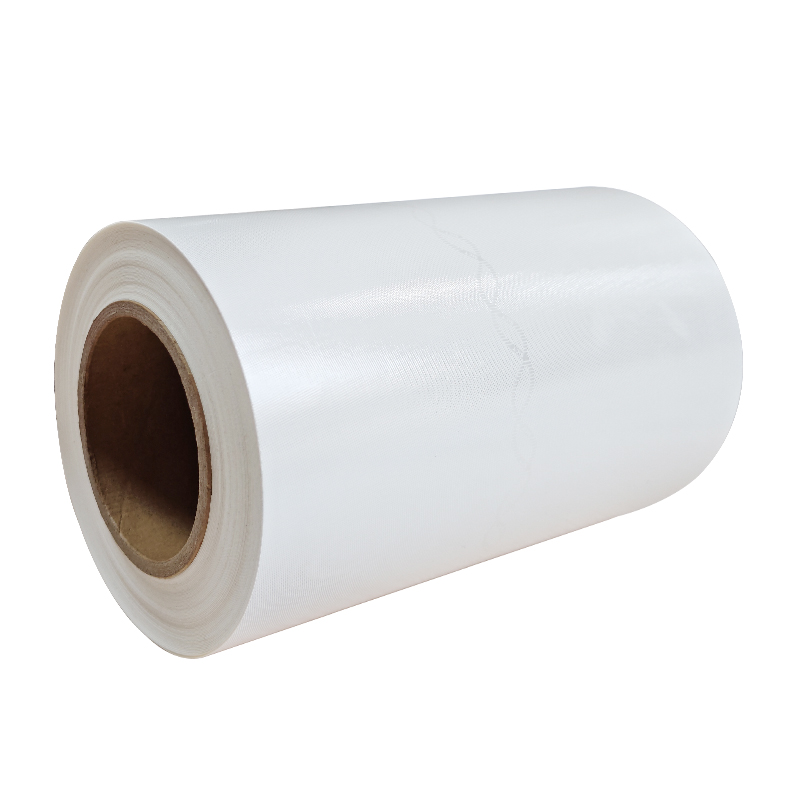

DM1950 Reflective film for license plate (2).jpg

DM1950 Reflective film for license plate (3).jpg

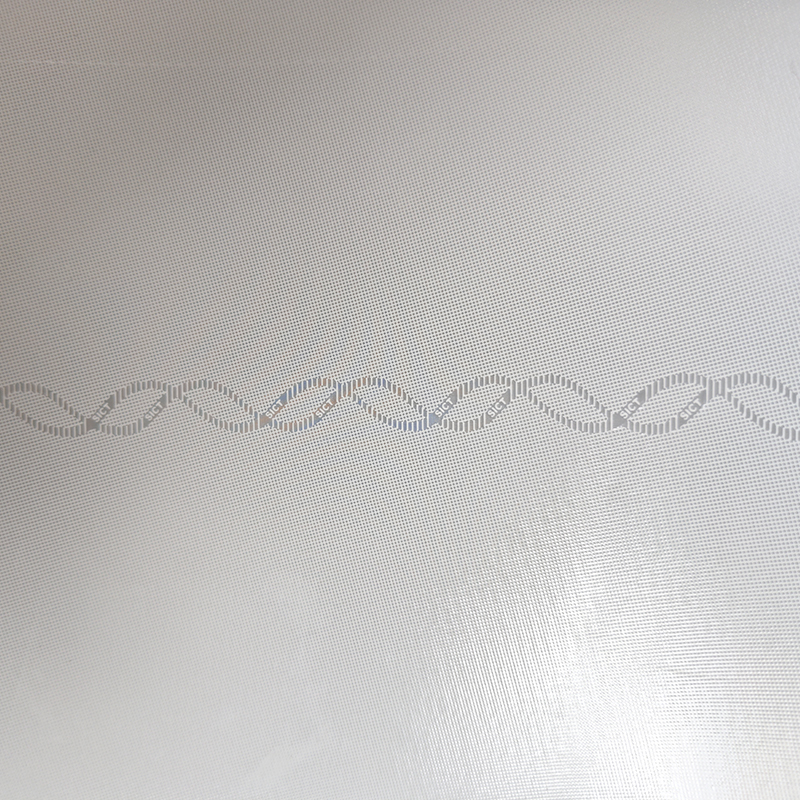

DM1950 Reflective film for license plate (5).jpg

DM1950 Reflective film for license plate

The DM1950 is an ISO7591 compliant micro-prismatic retro-reflective car license plate sheeting.It stands out with enhanced durability, flexibility,and superior reflectivity compared to standard glass bead car plate sheeting.The upgraded acrylic layer maintains its exceptional durability while also providing excellent sheeting flexibility.This makes it deal for processeslike embossing,roll coating,and hot stamping.

Product model：DM1950

Products Color: White, Yellow, Red, Green, Blue, Orange, Brown, Black

Manufacturing: Embossing, roll coating, hot stamping
Reflectance;

Daytime color specification limits

Standard light source:D65,Observation condition:45/0,Observation angle:2°

Color	Color Chromaticity				Luminance Factor
Color	X y	X y	X y	X y	Luminance Factor
white	0.350 0.360	0.305 0.315	0.295 0.325	0.340 0.370	≥0.34
yellow	0.545 0.454	0.487 0.423	0.427 0.483	0.435 0.534	≥0.2 ≤0.4

Note:The chromaticity performance of other color shall be negotiated and decided by both supplierand purchase.

Matched Materials ：Improved Acrylic

SEND INQUIRY

Details

Features

Features

1.Thickness ; Film layer: 0.25mm; Release
2.Paper: 0.171-0.175mm
3.The weight of the release paper: 160g per square meter
4.Adhesion Power: 27N- 31N
5.Duration: 5 yr

The DM1950 micro-prismatic retroreflective sheeting represents a significant advancement in automotive safety materials. Through its proprietary acrylic-based construction, the product achieves a retroreflectivity coefficient of 320 cd·lx⁻¹·m⁻² (ASTM E810), surpassing traditional glass bead technologies by 27-35%. Mechanical testing (ISO 11664) confirms retention of 92% initial reflectivity after 2,000 hours of accelerated weathering, while dynamic flexibility testing (ISO 178) demonstrates a flexural modulus of 2.4 GPa – enabling seamless integration into industrial embossing and thermal transfer processes. This combination of optical efficiency and material resilience establishes DM1950 as a paradigm for next-generation transportation signage solutions.

Application

Wide Applications：Large vehicle, Small Vehicle, Electric car

Small New Energy Vehicle License Plate

Distinguish

How to distinguish DM1950 from various reflective clothing

Method:

weight (160g/ m²） Surface Material (Acrylic) back material (PMMA) High Level of adhesion: 27N-31N

// DM // Product Use Tips

01 /

Application Environment

Test plate as prepared above will resist peeling,scuffing and marring from recommended application surfaces,during normal use handling and resist shocking off when jabbed with a spatula at-10°F(-23℃).Prior to application,the protective paper liner can be removed from the adhesive by peeling without soaking in water or other solvents.The liner can be removed after accelerated storage for 4 hours at 150°F(65℃)under a weight of 2.5 pounds per square inch(0.18kg/cm²).
For maximum service,do not use abrasive,or chemically harsh cleaners.Use the same care as is used in cleaning the paint surface on thee vehicle.The license plate surface should be cleaned of normal use dirt accumulation by washing with a mild detergent and water using a soft bristle brush or cloth. Following cleaning,the plate should be thoroughly rinsed with water.To remove tar,oil,o road film,cautious use of mild solvents such as mineral spirits,turpentine,kerosene,or other solvents,commonly used on vehicle finishes may be employed.Use of aromatic solvents or ketones or solvents containing them should be avoided.
