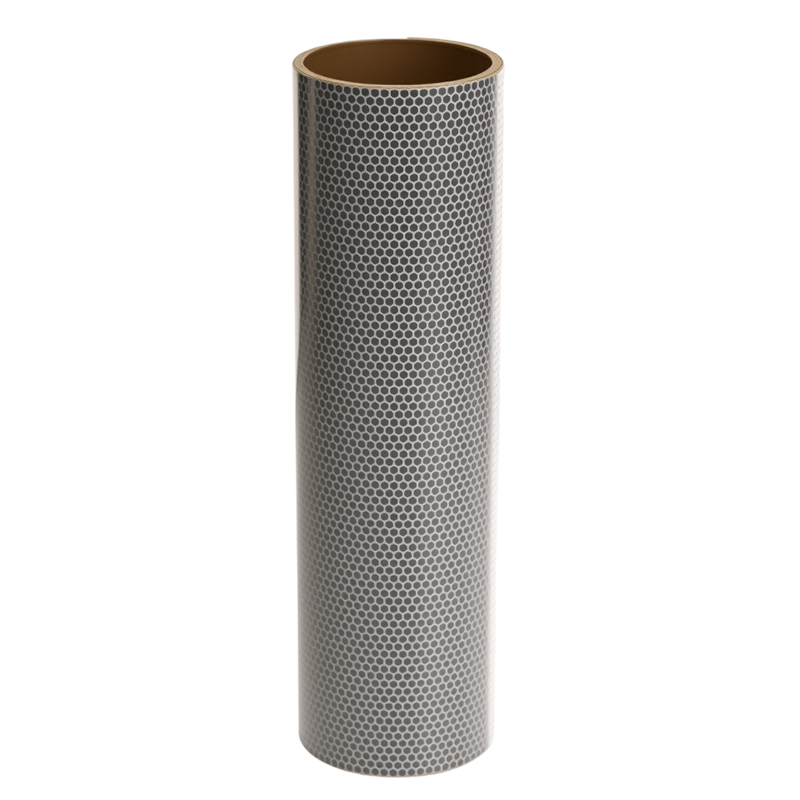

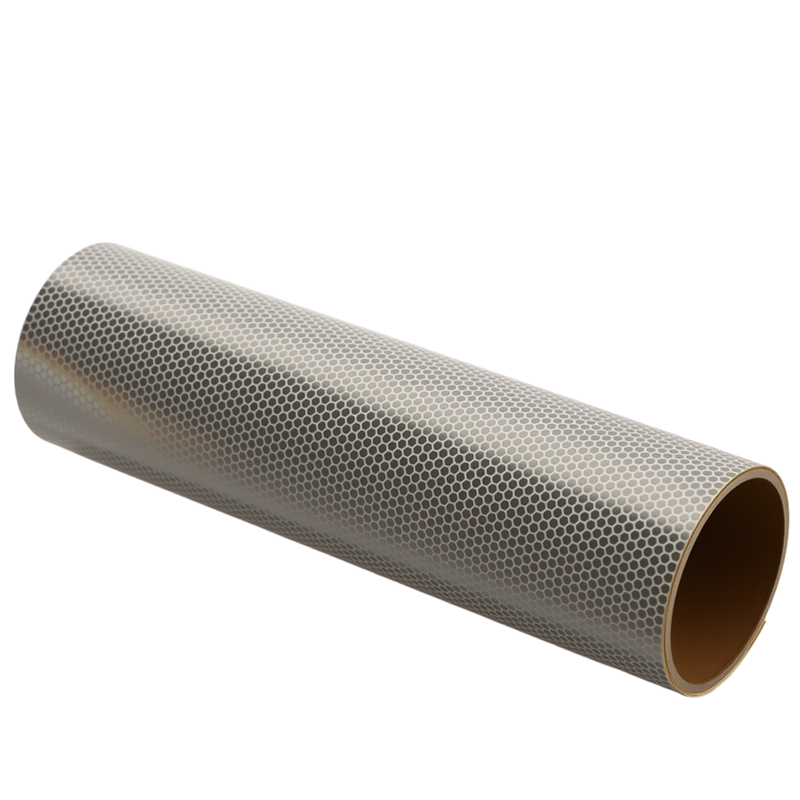

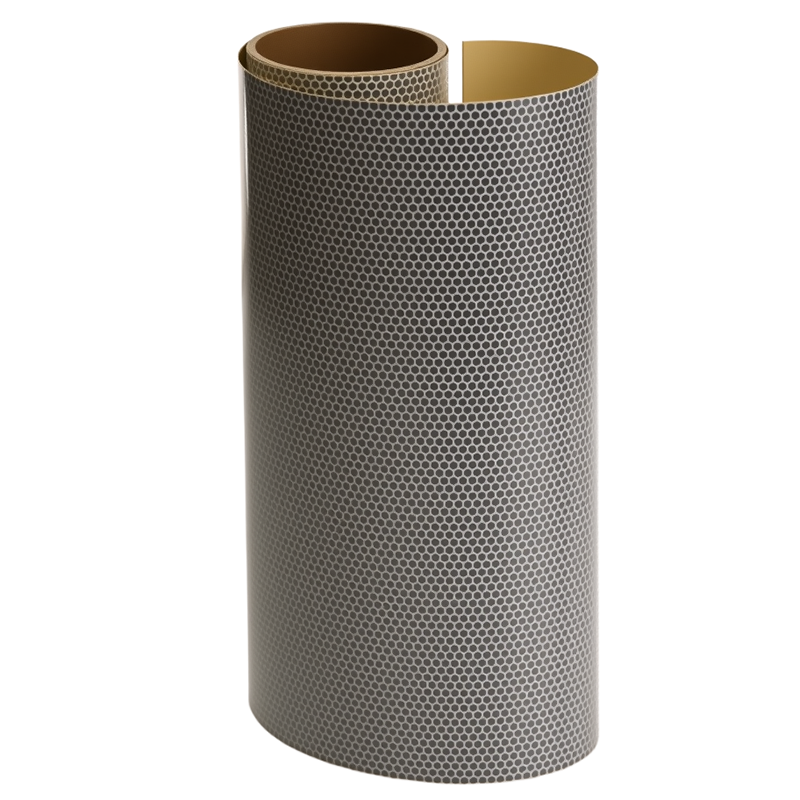

DM1400 Flexible High Intensity Prismatic Sheeting

DM1400 boasts significant advantages, including long viewing distance, high brightness, strong bonding, excellent flexibility, and resistance to peeling. It consistently provides stable reflective performance and clear visibility in a variety of weather and lighting conditions, ensuring safety and warning needs at night or in low-visibility environments. Utilizing high-performance adhesive materials, the product offers strong adhesion, resists warping and peeling, and is adaptable to complex curved surfaces. Its surface undergoes a special anti-fouling treatment to effectively prevent color transfer and surface contamination during stacking, transportation, and frequent use of traffic cones and warning posts, maintaining a clean and tidy appearance and enhancing overall service life and aesthetics. DM1400 is widely used in temporary traffic facilities such as road construction, traffic control, accident handling, temporary closures, and diversion and guidance. Its easy installation, rapid response, and clear warning features make it a crucial component of modern urban traffic safety management systems, helping to improve management efficiency and reduce the risk of traffic accidents.

Product model Product specifications
DM1400 1.24m*45.72m/roll
Product color Certified:
white ASTM D4956 Type III,  AS1906.1-2017
Surface layer: Durability:
PVC 3 years
Application:
traffic cone, delineators, other plastic equipment

SEND INQUIRYDM_20250418165110_001
  • iso9001-2
  • iso9001-4
  • iso9001-1

Features

High visibility: Compared with traditional glass bead reflective film, microprismatic sheeting has higher reflective efficiency and better wide-angle performance (up to 150° or more), and can clearly reflect car light at a wider angle range.

Strong and durable: The surface is covered with a high-strength wear-resistant coating, which can resist environmental erosion such as ultraviolet rays, acid rain, salt spray, and adapt to extreme climatic conditions (such as high temperature, severe cold, and humidity).

Compliance with standards: the products comply with ASTM D4956 (US standard)

Contact us

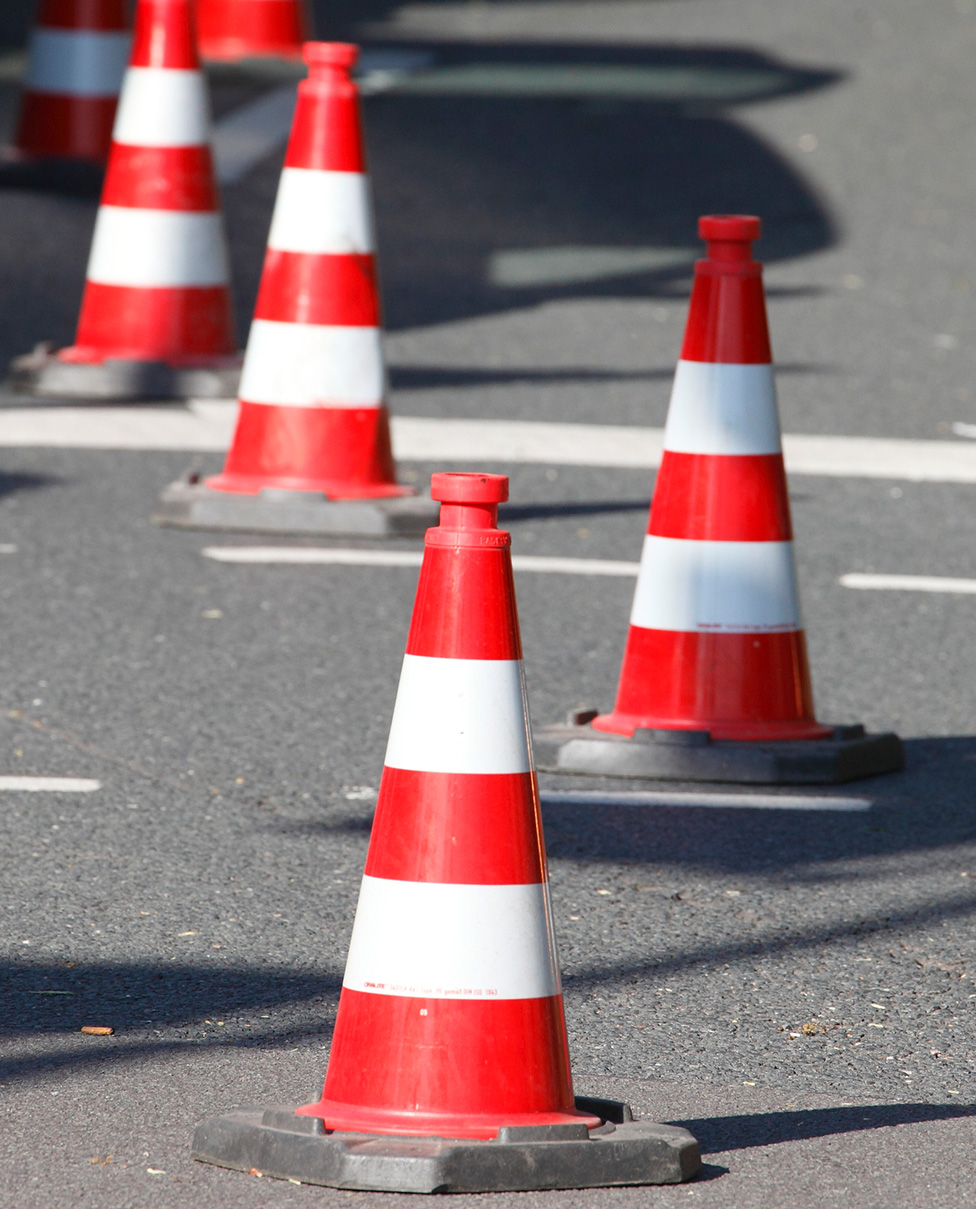

特点右侧图976-1209
Safety and environmental protection: Complies with the ROHS directive and relevant domestic environmental protection standards. Excellent flexibility, can adhere to curved or complex-shaped substrates (such as road convex signs and contour signs), reducing construction difficulty.

Related Products List

Product Model

Product Name

Specification

Color

Processing

DM3610

Flexible Micro Prismatic Sheeting

1.22m*45.7m/roll

White, Yellow, Orange, Fluo-Yellow Green

digital printing, cylinder printing

DM3810

Flexible Micro Prismatic Sheeting

1.22m*45.7m/roll

White, Yellow, Orange, Fluo-Yellow Green

digital printing, cylinder printing

DM3910

Flexible Micro Prismatic Sheeting

1.22m*45.7m/roll, customized sizes

silver

digital printing, cylinder printing

DM3950

PVC Prismatic Adhesive Sheeting

1.22m*45.72m/roll

White

Screen printing,

Wide Applications

Application: traffic cone, delineators, other plastic equipment

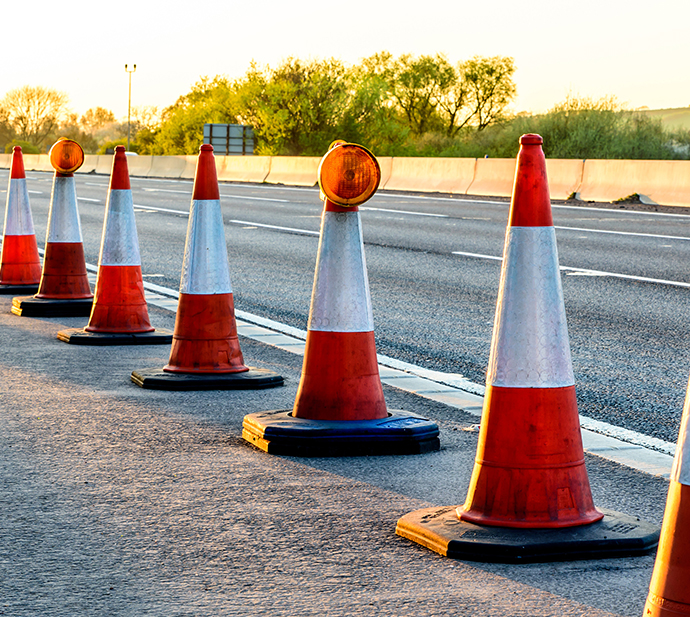

traffic cone

traffic cone

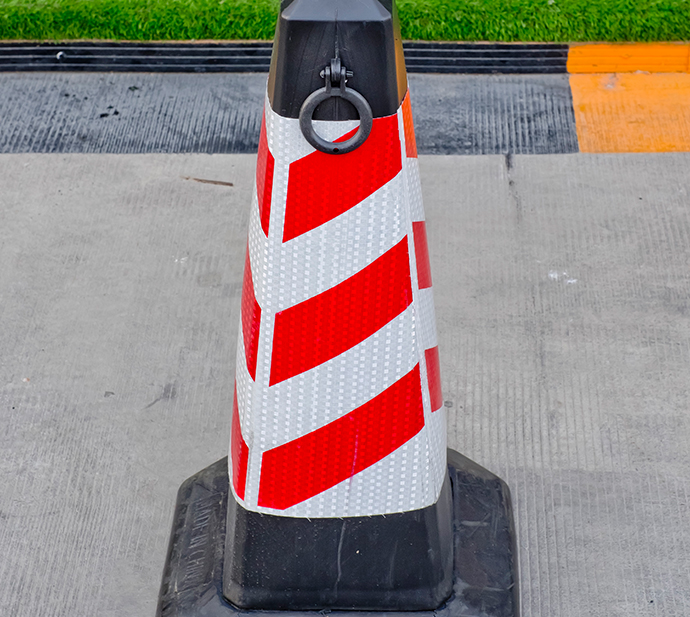

traffic cone2

traffic cone

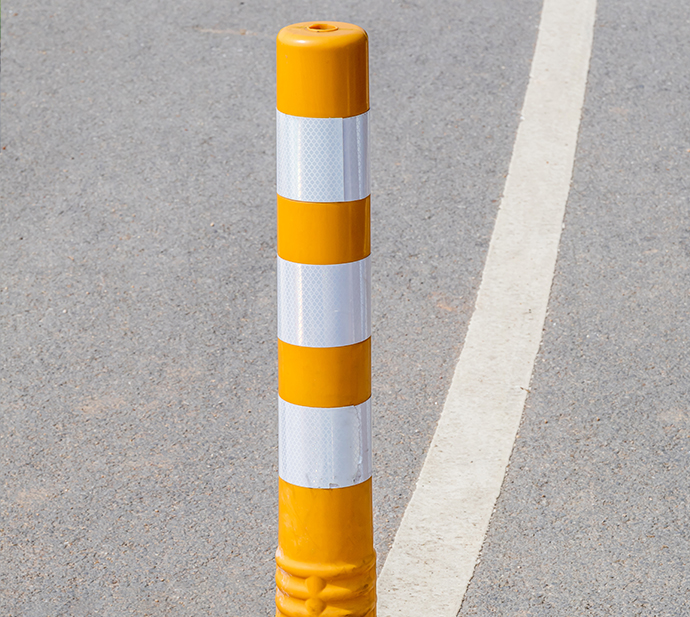

traffic cone3

traffic cone

01

How to distinguish DM1700 ElectroCut Film from DM50UV Cold Lamination Film?

Observe the appearance pattern

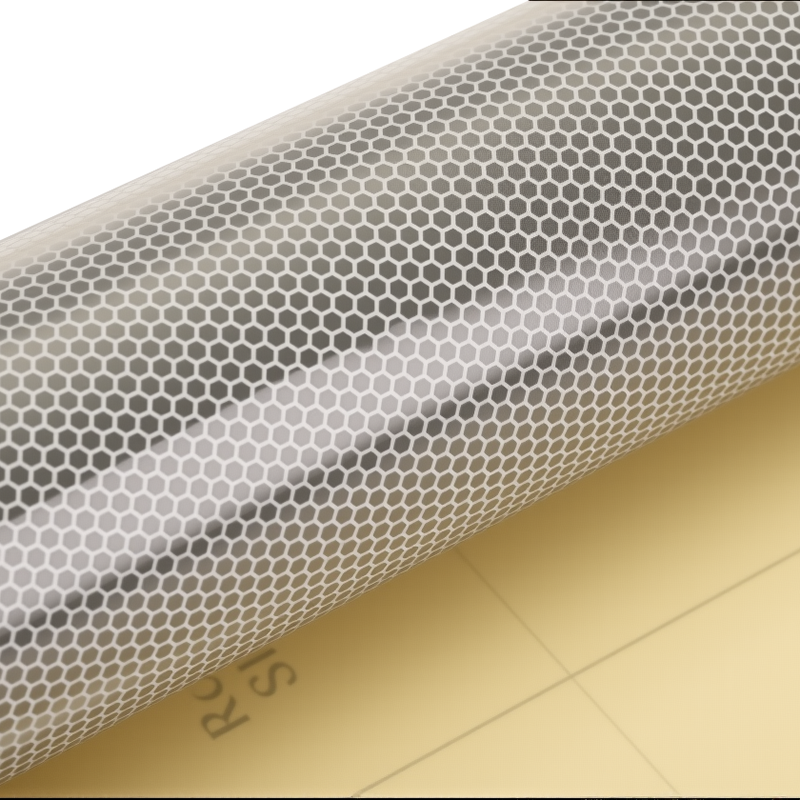

Both DM1400 and DM3610 utilize a hexagonal honeycomb pattern, with the DM1400's cells being larger and the DM3610's pattern being more dense. DM3810 features a regular quadrilateral pattern; DM3910 has a smooth, untextured surface with no visible pattern; and DM3950 utilizes a triangular pattern on a fabric-based base.

Observe the appearance color

DM1400, DM3910, and DM3950 are aluminized and the product appearance is grayish, while DM3610 and DM3810 are sealed cells of air structures and have brighter colors.

// DM // Product Use Tips

01 /

 Is the DM1400 adhesive suitable for applications requiring a high initial adhesion, such as vertically attaching heavy objects?

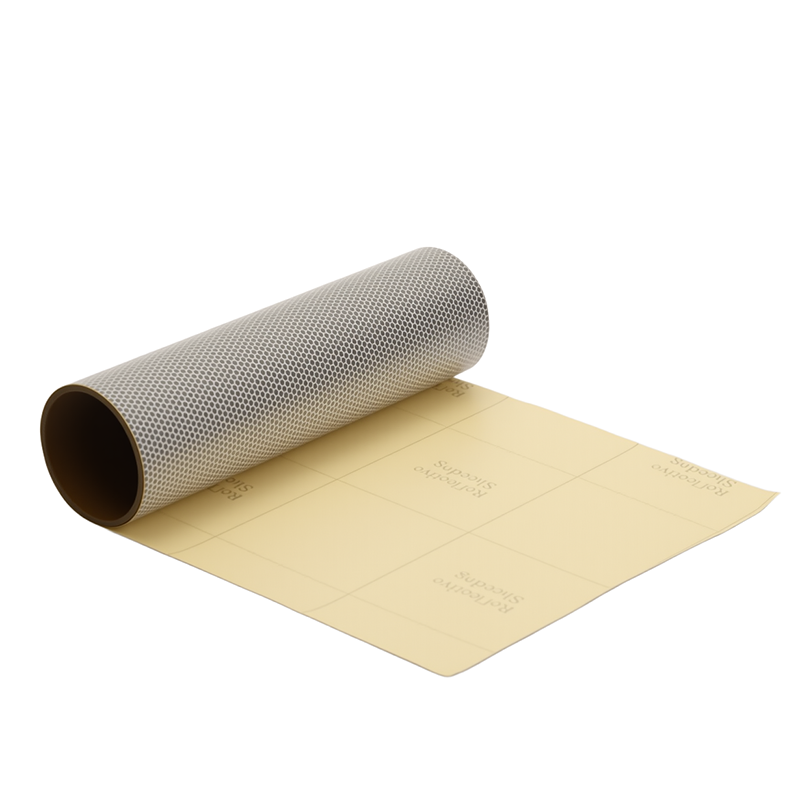

The adhesive is protected by a release liner which shall be removed by peeling, without soaking in water or other solvents. The adhesive produces a bond such that a 1" (50 mm) strip shall support a 13/4 pound (0.79 kg) weight for 5 minutes without the strip peeling for a distance of more than 2" (50 mm) when applied to a smooth aluminum surface as specified in the ASTM D4956, Section 7.5 adhesion test.

DM Customization Process

  • project010221300a245b87d448b5569a3e52ee2e
    Selection
    Determine product model, color, quantity price and delivery time!
  • project020221300a245b87d448b5569a3e52ee2e
    Finalize
    Provide the printed logo pattern can also be designed by us for free!
  • project030221300a245b87d448b5569a3e52ee2e
    Order
    Obtain detailed technical data sheets with customized solutions.
  • project040221300a245b87d448b5569a3e52ee2e
    Production
    After confirming the correctness of the start of production
  • project050221300a245b87d448b5569a3e52ee2e
    Proofing
    Confirm with the customer after making the sample
  • project06
    Shipment
    Wait for the transaction to be completed
