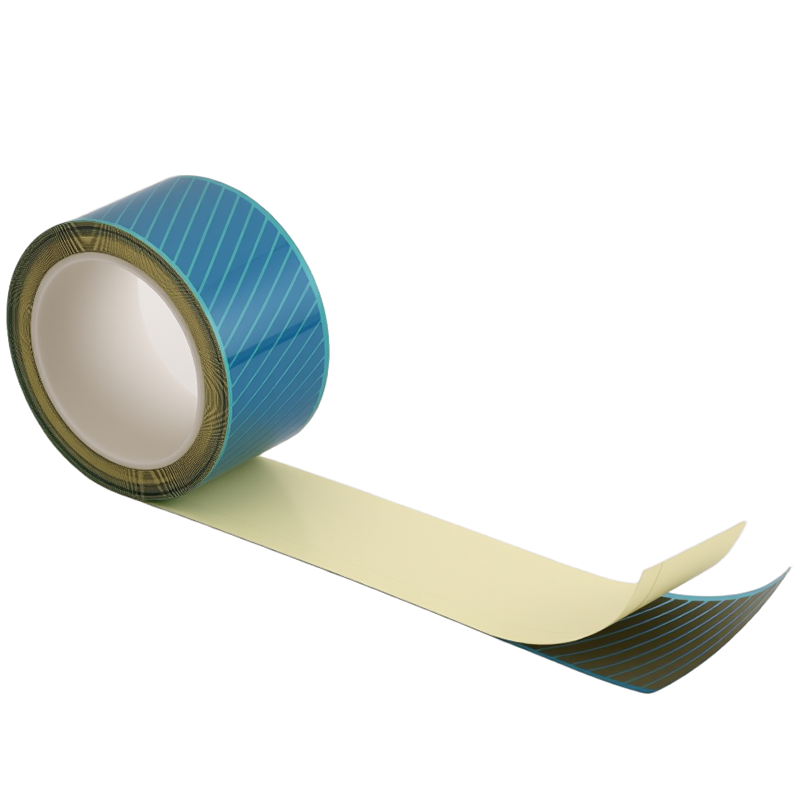

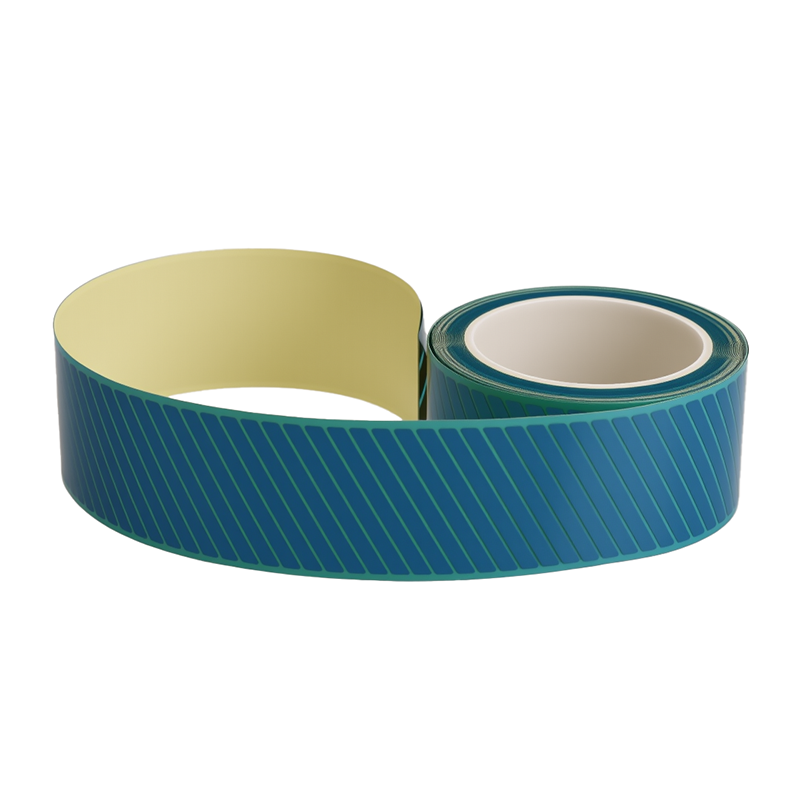

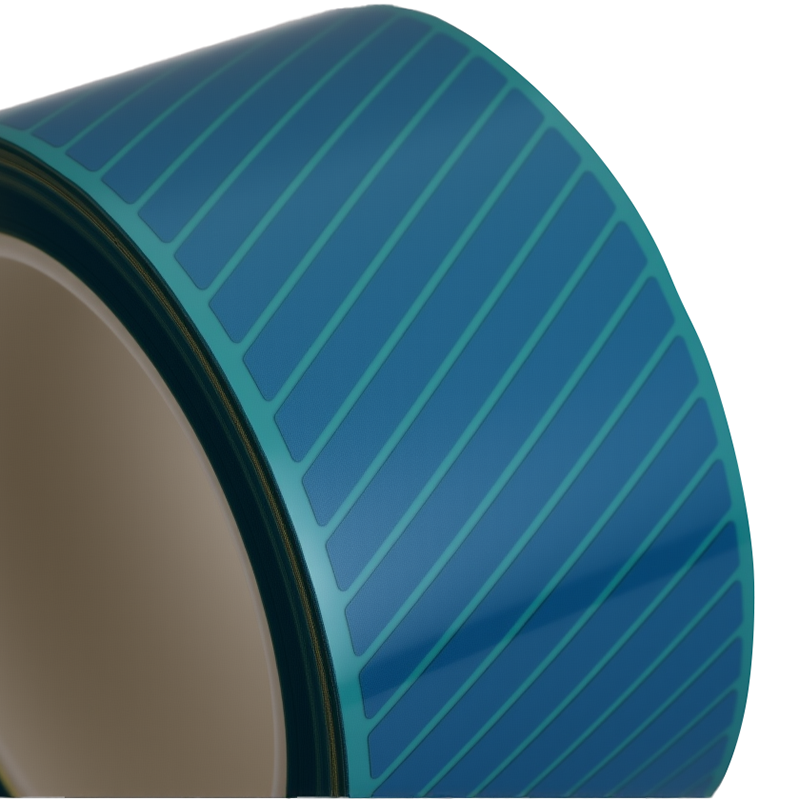

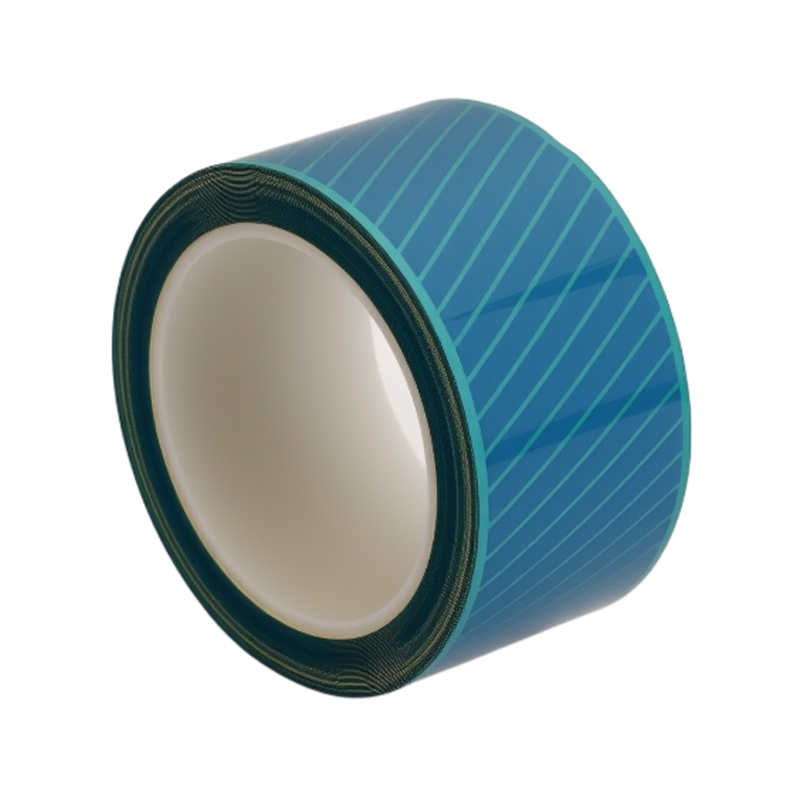

D4310 Industrial Washing Segmented Reflective Heat Transfer Film

Industrial Washing Segmented Reflective Heat Transfer Film is a high-performance safety material designed to maximize visibility in various applications, particularly in demanding industrial and professional environments where safety is paramount. This innovative film effectively reflects light back to its source, dramatically enhancing the visibility of individuals and objects in low-light conditions to help prevent accidents and ensure workplace safety. Its unique open-weave mesh construction provides exceptional breathability while maintaining superior reflectivity, making it ideal for comfortable, long-term wear in safety apparel. The material's versatile design allows for customized patterns and creative cutting, enabling both functional safety applications and fashionable, personalized clothing solutions. With outstanding durability that withstands industrial washing processes, this reflective film perfectly bridges the gap between strict safety requirements and modern aesthetic demands, offering reliable protection without compromising on style for high-visibility workwear, industrial uniforms, and contemporary safety gear.

Product model Product specifications
D4310 5cm*100m
Product color Processing:
Silver Hot pressing
fabric composition: Reflectance
Heat sealable polyester ≥330cd/(lx·㎡)
Washing times: Dry cleaning
/ 30 cycles (ISO 3175 standard)
Certified Water washing:
Oeko-Tex 100,ENISO 20471 75 cycles at 60°C (ISO 6330 standard)
SEND INQUIRYDM_20250418165110_001
  • iso9001-2
  • iso9001-4
  • iso9001-1

Features

1. Exceptional Reflectivity, Reflectivity ≥ 330 cd/(lx·m²)
High-brightness silver surface with superior retroreflective performance. Ensures maximum visibility in low-light or nighttime conditions, with reflectivity ≥ 330 cd/(lx·m²).

2. Industrial Wash Durability
Can withstand 75 ℃ industrial water washing 30 times without fading or deformation, ISO 3175 standard dry cleaning 30 times without loss of performance, home 60 ℃ machine wash (ISO 6330 standard) 50 times is still firm as new, durable, ideal for professional work wear.

3. Flexible and Soft
A lightweight structure ensures comfort and flexibility without compromising durability.

Contact us
特点右侧图976-1209
This flame retardant reflective heat transfer film, when hot pressed onto other textiles and substrates, significantly enhances the wearer's visibility in low-light or poor-visibility conditions. It is widely used in safety protection products such as silver-appearance fabrics, specialized items, and lightly industrial-wash protective clothing or professional workwear.

Related Products List

Product

Model

Product Name

Specification

Color

Processing

D4300

Segmented Reflective Heat Transfer film

5cm*100m

Silver

Hot Pressing

D4310

Industrial Washing Segmented Reflective Heat Transfer Film

5cm*100m

Silver

Hot Pressing

Wide Applications

Reflective Vests      Occupational Workwear      Pet Accessories      Reflective Fashion      Projection Screens      Footwear, Hats, Bags, and Luggage



Occupational Workwear

Occupational Workwear

Reflective Vests

Reflective Vests

Reflective Vests2

Reflective Vests

01

How to Distinguish Different Brightness Reflective Cloth?

Method 1: Look at the apparent color in the normal light state

Industrial-Reflective-Silver-Cloth_01_031
Bright reflective cloth
Appearance: Dark grey
The reflection brightness is low
Do not wash, scratch resistant
Industrial-Reflective-Silver-Cloth_01_03
Highlighter reflective cloth
Appearance: grey
The reflection brightness is medium
Washing times 25 times
Industrial-Reflective-Silver-Cloth_01_033
Highlighter reflective cloth
Appearance: silver gray
High reflective brightness
Washing times 25 times
The reflection brightness is low
Do not wash, scratch resistant

Method 2: Look at the brightness of the reflective state

D4120 (3)
D4120 (3)
D4120 (1)

// DM // Product Use Tips

01 /

 How to test the reflective effect?

1. Take pictures with a mobile phone at a distance of more than 3 meters in a dark environment.

2. Stand a flashlight at a height of more than 5 meters in the dark, with the flashlight shining at the tip of the nose to reflect light.

3.Conduct the test with a car at a distance of more than 20 meters in a dark environment.
02 /

How is the adhesion performance?

1. The reflective adhesive backing is a chronic adhesive. The longer the time, the stronger the stickiness.

2. Please be careful when pasting and stick it in one go. Pasting it a second time will affect the adhesion.

3. Please stick it firmly when pasting. It will be completely firm after 72 hours and can be used all day long.

4. If you need to remove it after long-term use, please heat it up with a hair dryer before removing.

5.Surface residue glue can be wiped off with alcohol or toilet water.
03 /

Why is the reflective effect I tested not strong?

The reflection you tested was weak because your testing method was incorrect.

1. Please conduct the test at a distance of at least 3 meters. Due to the issue of reflection Angle, it needs to be at a certain distance away.

2. The principle of reflective stickers is that wherever the light source comes from, the reflection will return to the light source, thereby alerting the driver.

3. The reflective intensity of reflective stickers is directly proportional to the light intensity; the stronger the light source, the stronger the reflection.
