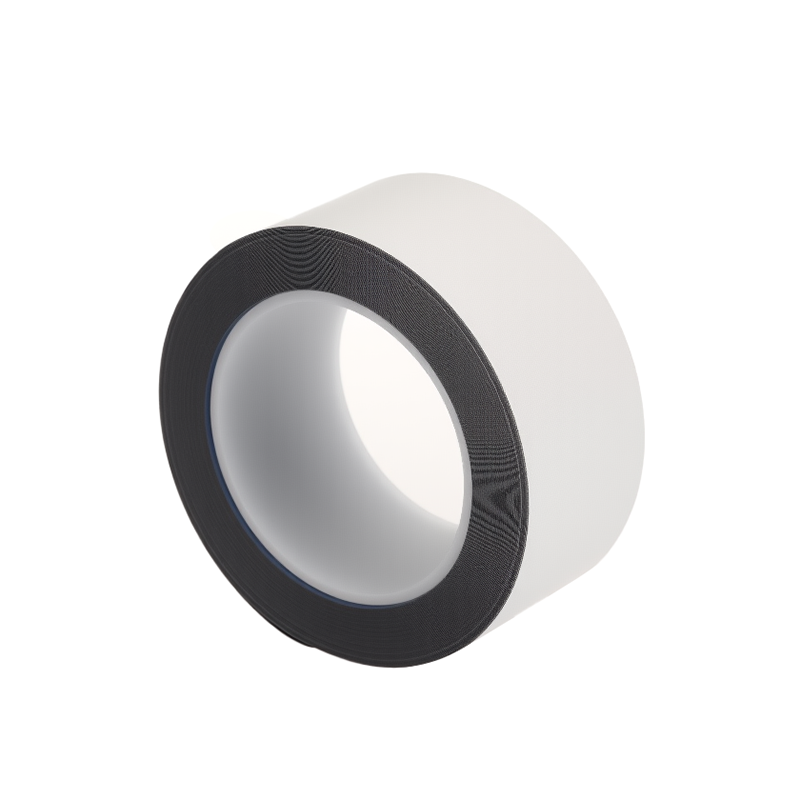

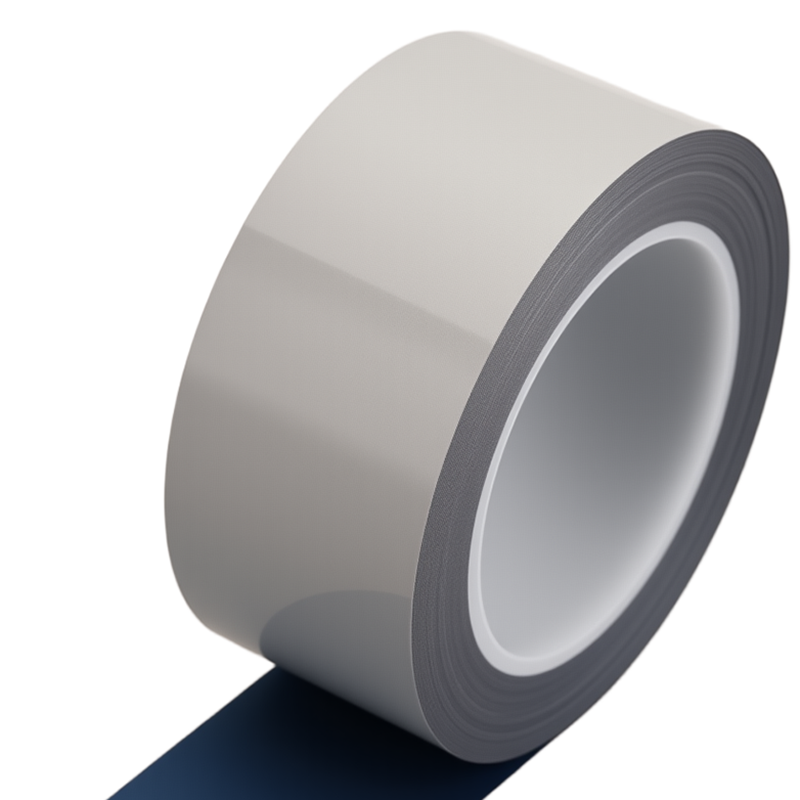

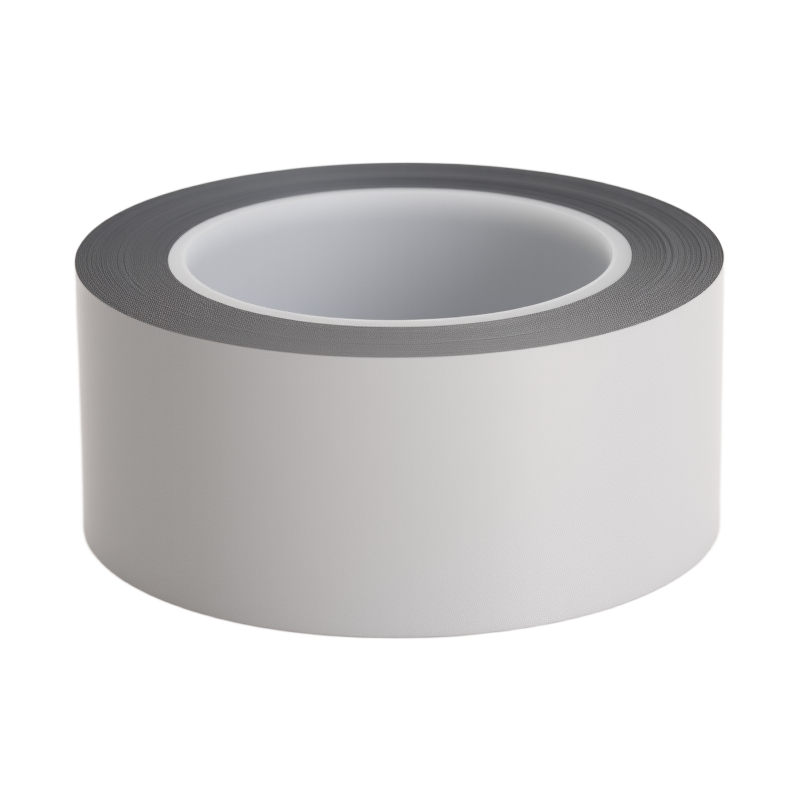

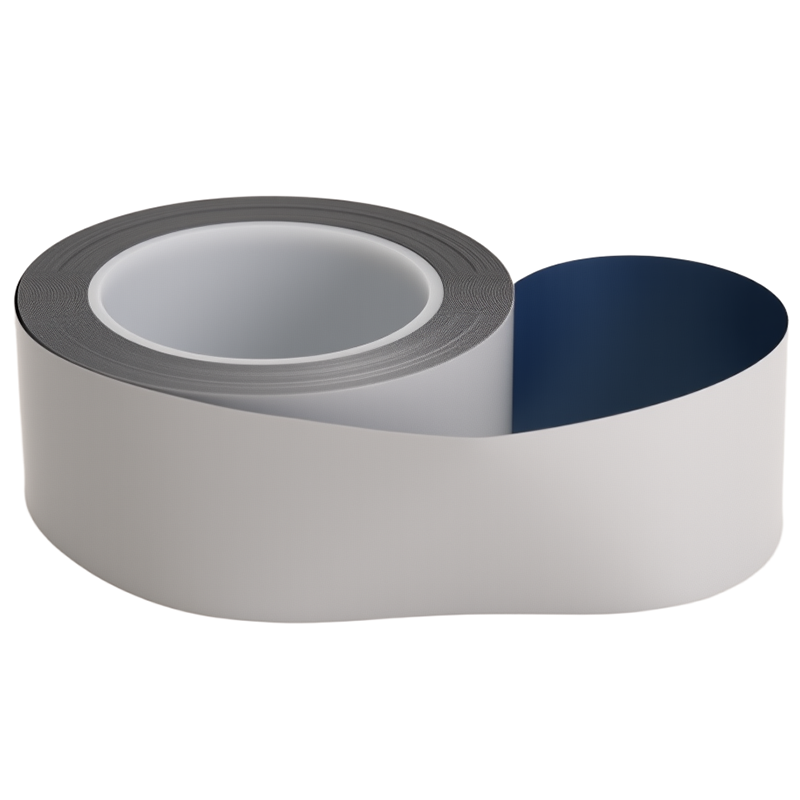

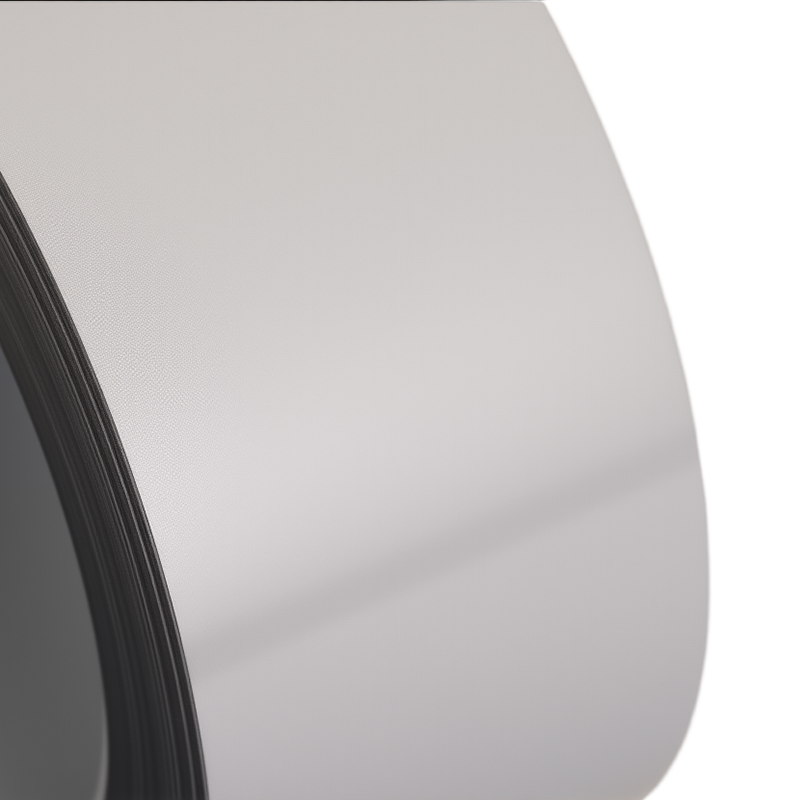

D4201 PU Silver Reflective Heat Transfer Film
SEND
INQUIRY
Details
Features
Related Products
Application
Use Tips
CustomizationFeatures
1. Exceptional Reflectivity, Reflectivity ≥ 500 cd/(lx·m²)
High-brightness silver surface with superior retroreflective performance. Ensures maximum visibility in low-light or nighttime conditions, with reflectivity ≥ 500 cd/(lx·m²).
2. Excellent water washing resistance
According to ISO6330 standard domestic washing times ≥30 cycles at 60℃, ISO3175 dry cleaning ≥5 cycles. Does not affect the reflective performance.
3. Special Elastic Products
Designed for safety protective garments and safety protection products made from stretchable or elastic fabrics.
This reflective fabric, when heat transfer onto other textiles and substrates, significantly enhances the wearer's visibility in low-light or poor-visibility conditions. It is widely used in safety protection products such as silver-appearance fabrics, specialized items, and protective clothing or professional workwear.
Related Products List
| Product Model | Product Name | Specification | Color | Processing |
| D4101 | Silver Reflective Heat Transfer Film | 5cm*100m | Silver | Heat Transfer |
| D4110 | Highly Washable Silver Reflective Heat Transfer Film | 5cm*100m | Silver | Heat Transfer |
| D4301 | Silver Reflective Heat Transfer Film (for plotter specially) | 5cm*100m | Silver | Heat Transfer |
Reflective Vests
Occupational Workwear
Pet Accessories
Reflective Fashion
Projection Screens
Footwear, Hats, Bags, and Luggage
0102030405
How to Distinguish Different Brightness Reflective Cloth?
Bright reflective cloth
Color: Dark grey
The reflection brightness is low
Do not wash, scratch resistant
Highlighter reflective fabric
Color: grey
Relatively high reflective brightness
Domestic washing times 30 cycles
Wash resistant, scratch resistant
Bright silver reflective fabric
Color: silver
High reflection brightness
Domestic washing times more than 30 cycles
Wash resistant, scratch resistant
01
/
How to test the reflective effect?
1. Take pictures with a mobile phone at a distance of more than 3 meters in a dark
environment.
2. Stand a flashlight at a height of more than 5 meters in the dark, with the
flashlight shining at the tip of the nose to reflect light.
3. Conduct the test with a car at a distance of more than 20 meters in a dark
environment.
02
/
How is the adhesion performance?
1. The reflective adhesive backing is a chronic adhesive. The longer the
time, the stronger the stickiness.
2. Please be careful when pasting and stick it in one go. Pasting it a
second time will affect the adhesion.
3. Please stick it firmly when pasting. It will be completely firm after 72
hours and can be used all day long.
4. If you need to remove it after long-term use, please heat it up with a
hair dryer before removing.
5. Surface residue glue can be wiped off with alcohol or toilet water.
03
/
Why is the reflective effect I tested not strong?
The reflection you tested was weak because your testing method was incorrect.
1. Please conduct the test at a distance of at least 3 meters. Due to the issue of
reflection Angle, it needs to be at a certain distance away.
2. The principle of reflective stickers is that wherever the light source comes
from, the reflection will return to the light source, thereby alerting the driver.
3. The reflective intensity of reflective stickers is directly proportional to the
light intensity; the stronger the light source, the stronger the reflection.
-
